Product Specifications
Product Details
Features:
- High-performance ADIS16470 Industrial IMU with high accelerometer dynamic range (±40 g), perfect for accurate motion sensing in demanding UAV applications
- All New advanced durable vibration isolation material with resonance frequency in the higher spectrum, ideal for industrial and commercial drone applications
- Triple redundant IMU & double redundant barometer on separate buses
- High performance STM32H753 Processor

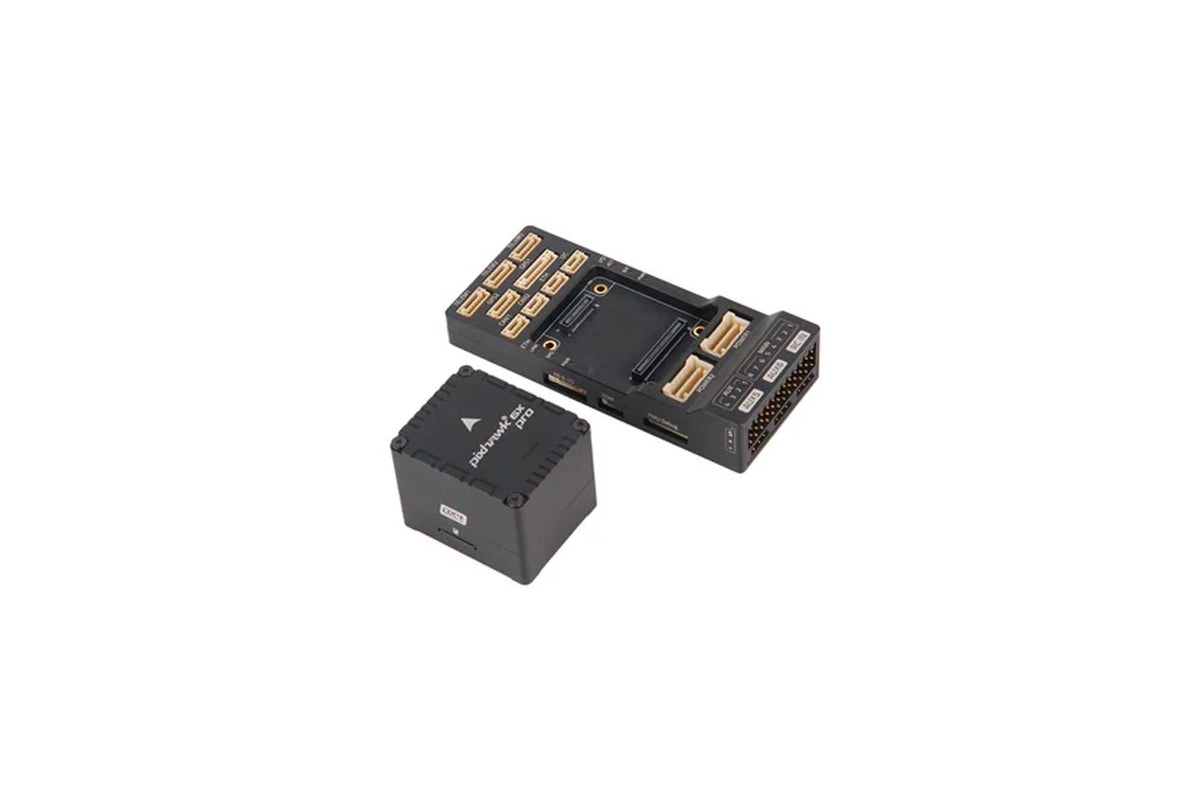

- Modular flight controller: separated IMU, FMU, and Base system
- Safety-driven design incorporates sensors from different manufacturers and model lineups
- Independent LDO powers every sensor with independent power control.
- Ethernet interface for high-speed mission computer integration
- Temperature-controlled IMU board, allowing optimum working temperature of IMUs
Specification:
Processors & Sensors
- FMU Processor: STM32H753
- 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM
- IO Processor: STM32F103
- 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
- On-board sensors
- Accel/Gyro: ADIS16470
- ±40g, Vibration Isolated, Industrial IMU
-
Accel/Gyro: IIM-42652
- ±16g, Vibration Isolated, Industrial IMU
-
Accel/Gyro: ICM-45686 with BalancedGyro™ TechnologyBarometer: ICP20100
- ±32g, Hard Mounted
- Barometer: BMP388
- Mag: BMM150
Electrical data
- Voltage Ratings:
- Max input voltage: 6V
- USB Power Input: 4.75~5.25V
- Servo Rail Input: 0~36V
- Current Ratings:
- Telem1 output current limiter: 1.5A
- All other port combined output current limiter: 1.5A
Mechanical data
- Dimensions
- Flight Controller Module: 38.8 x 31.8 x 30.1mm
- Standard Baseboard: 52.4 x 102 x 16.7mm (Aluminum)
- Mini Baseboard: 43.4 x 72.8 x 14.2 mm
- Weight
- Flight Controller Module: 50g
- Standard Baseboard: 72.5g (Aluminum)
- Mini Baseboard: 26.5g
Package contains:

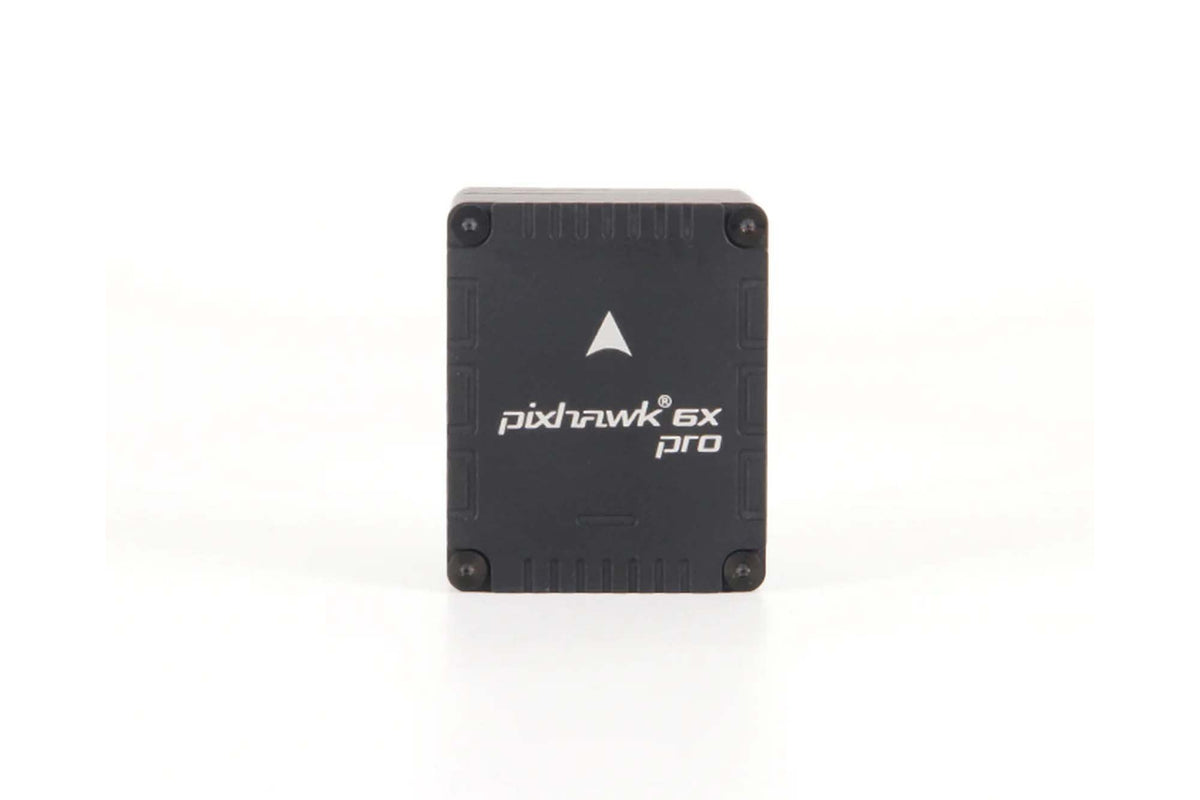

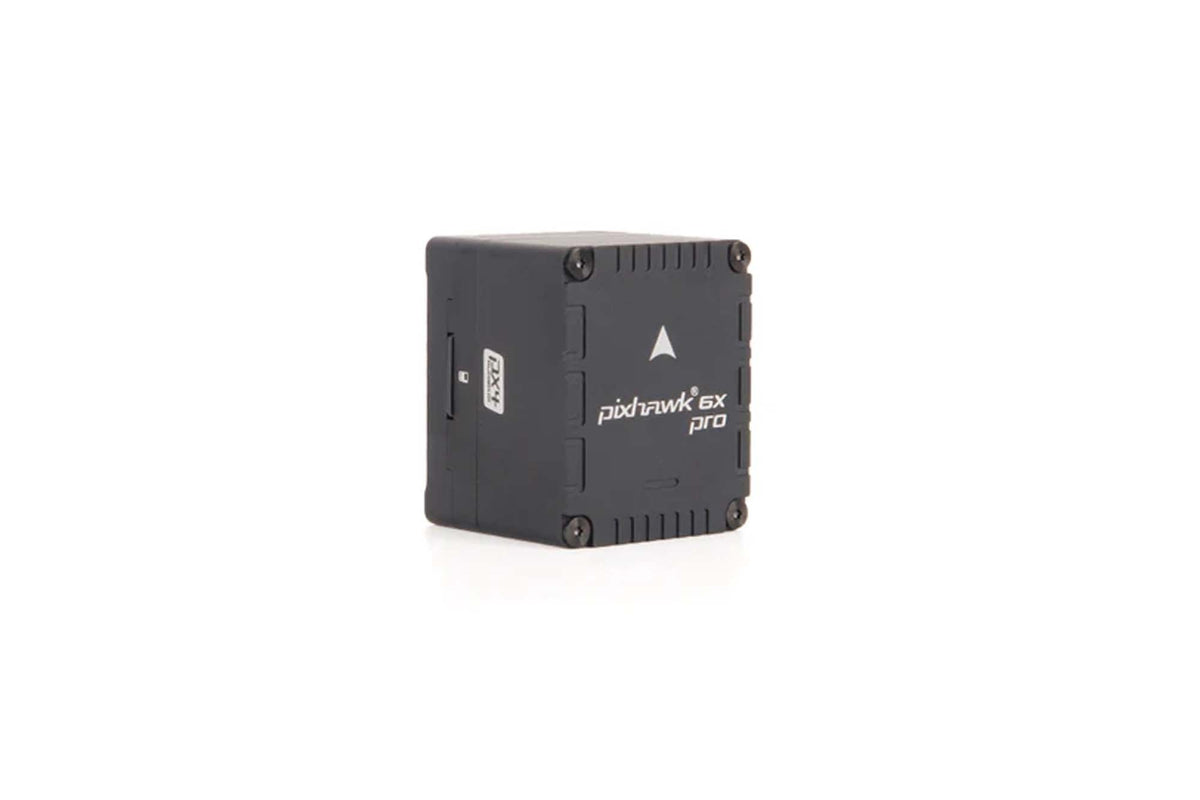

- Pixhawk 6X Pro Flight Controller Module

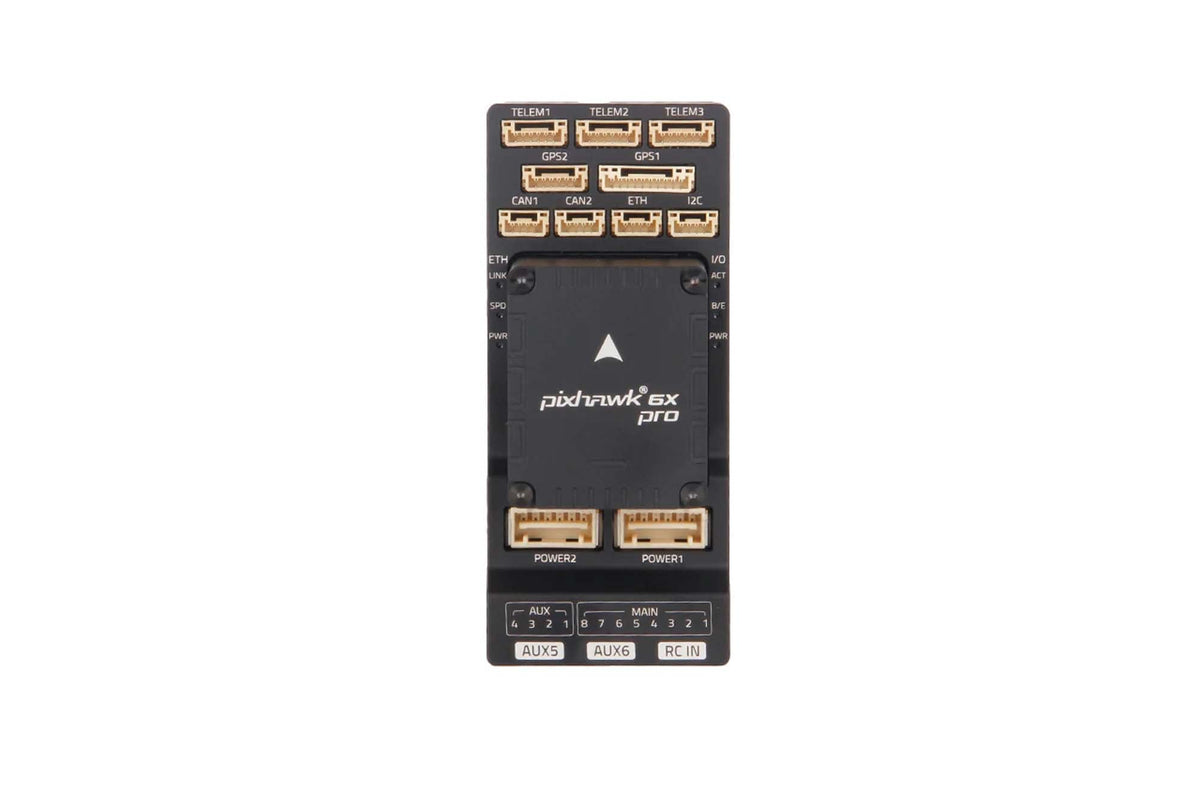

- Pixhawk Standard Baseboard / Mini Baseboard
- PM02D HV Power Module
- Cable Set
