Product Specifications
Product Details
Features:
- Redundancy: 3x ICM-45686 IMU sensors (±32g) with BalancedGyro™ technology & 2x Barometer sensors
- High-performance STM32H753 Processor with a clock speed of up to 480 MHz
- Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Bus connector.
- Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control
- All-New advanced durable vibration isolation material with resonance frequency in the higher spectrum
- Ethernet interface for high-speed mission computer integration. Transformer less can be achieved using 50 Ohm termination resistors at the target device (AN2190 50 Ohm termination).
- Temperature-controlled IMU board, allowing the optimum working temperature of IMUs
- Hardware switchable 3.3V or 5V signal mode (requires baseboard modification)
- Digital power module support for better voltage and current data accuracy
Specification:
Processors & Sensors
-
FMU Processor: STM32H753
- 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM
-
IO Processor: STM32F103
- 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
-
On-board sensors (Shipping Currently, Rev8)
- Accel/Gyro: 3x ICM-45686 (with BalancedGyro™ Technology)
- Barometer: ICP20100 & BMP388
- Mag: BMM150
-
On-board sensors (Previous Revision, Rev 3/4)NXP EdgeLock SE050 Plug & Trust hardware secure element
- Accel/Gyro: BMI088/ICM-20649
- Accel/Gyro: ICM-42688-P
- Accel/Gyro: ICM-42670-P
- Mag: BMM150
- Barometer: 2x BMP388
Electrical data
-
Voltage Ratings:
- Max input voltage: 6V
- USB Power Input: 4.75~5.25V
- Servo Rail Input: 0~36V
-
Current Ratings:
- Telem1 & GPS2 combined current limit: 1.5A
- All other ports combined current limit: 1.5A
-
PWM Signal Voltage:Operating Temperature: -25-85°C
- Default 3.3V (Adjustable to 5V with a change onboard resistor)
Mechanical data
- Dimensions
- Flight Controller Module: 38.8 x 31.8 x 16.8mm
- Standard Baseboard: 52.4 x 102 x 16.7mm (Aluminum)
- Mini Baseboard: 43.4 x 72.8 x 14.2 mm
- Weight
- Flight Controller Module: 31.3g
- Standard Baseboard: 72.5g (Aluminum)
- Mini Baseboard: 26.5g
Package contains:

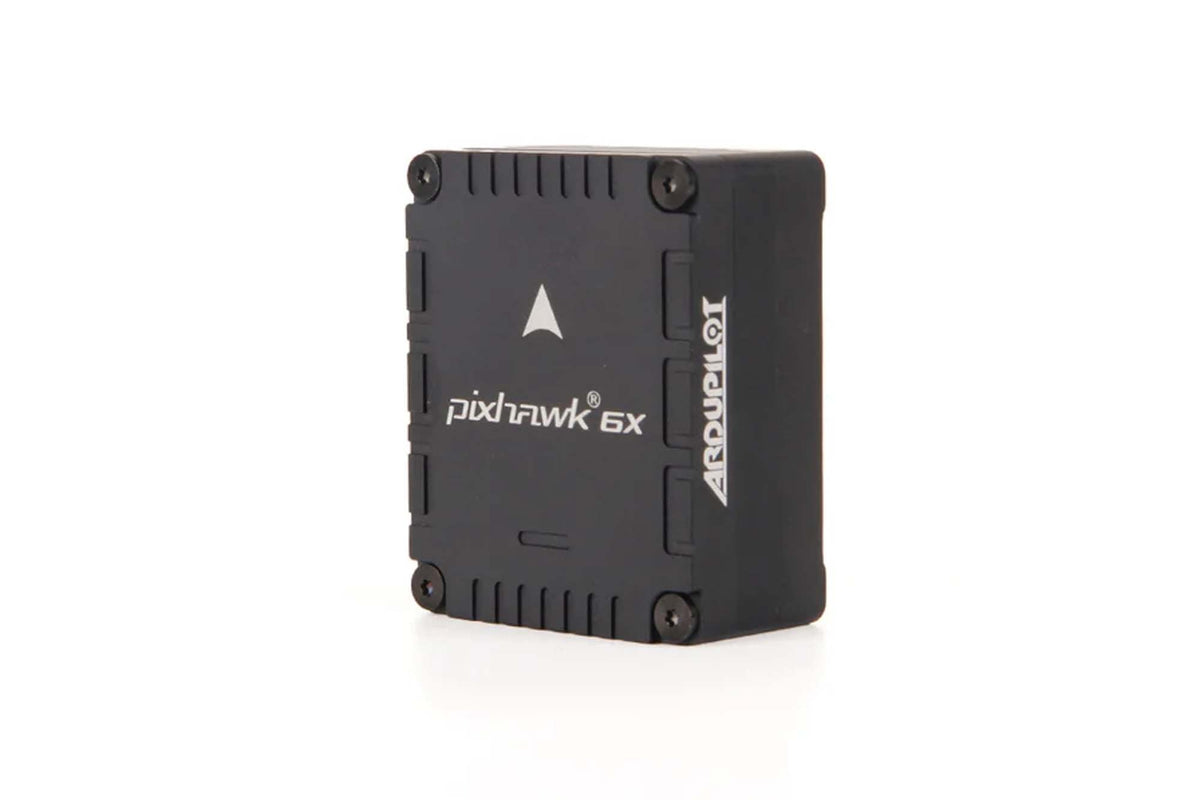

- Pixhawk 6X Flight Controller Module
_-_Body_Image_01.jpg)
