Name: Holybro - Nano M8 5883 GPS Module
Brand: Holybro
SKU: HLB-00029-010
Price: 18.90 GBP
Availability: OutOfStock

Out of Stock

Product Specifications

Product Details

This lightweight micro GPS is a cost-effective product for those people who need to run iNav on their FPV quads.

Dimensions:25x20x8mm
Weight:7.8g

Features
• UBX-M8030 high performance GPS/GNSS Chips:
• Over 2 million effective correlators
• 72 channels in Search mode
• Cold start acquisition sensitivity of -148 dBm and -167 dBm tracking sensitivity
• Up to 10 Hz navigation update rate
• Supports GPS, QZSS, GLONASS , BDS and is ready for Galileo
• Supports AGPS
• Integrated TCXO,LNA,SAW,RTC
• Compact size (φ23.88mm x19.98mmx8.80mm±0.5mm ) suitable for space-sensitive application
• Weight 7.8 grams without TPU Protective Case Shell
• Support standard NMEA 0183,UBX
• This module can be equipped with QMC5883

Performance

A1 All satellites at -130 dBm
A2 CEP, 50%, 24 hours static, -130 dBm, > 6 SVs
A3 Assuming Airborne < 4g platform

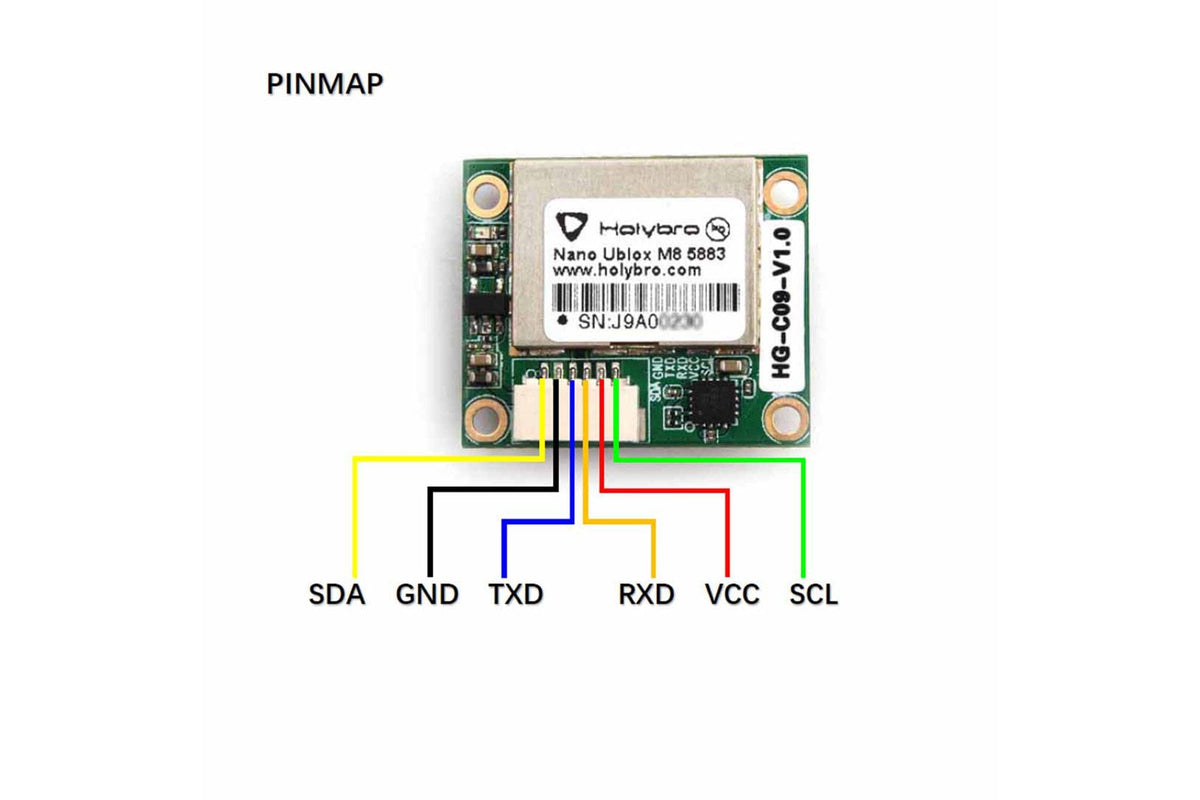

PINMAP

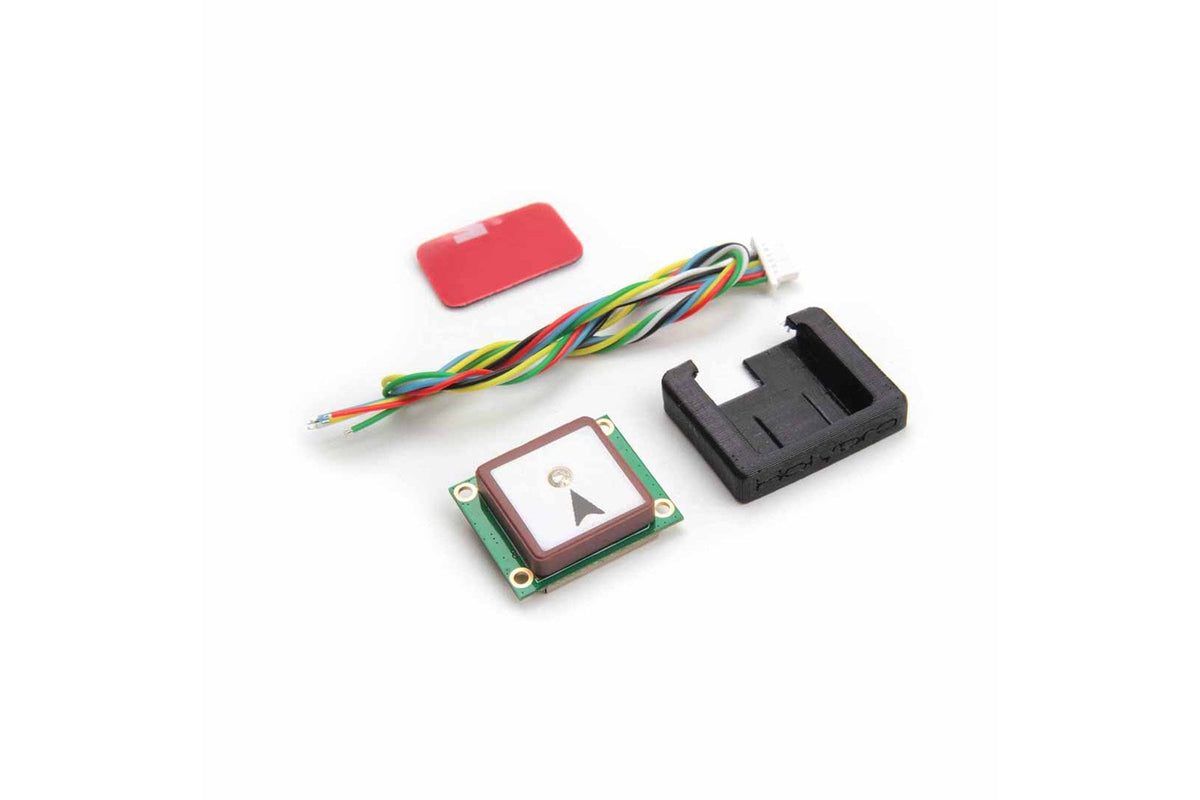

Package Included:

- Nano M8 5883 GPS Module *1
- JST 6P Cable *1
- TPU Protective Case Shell *1

Product Details

This lightweight micro GPS is a cost-effective product for those people who need to run iNav on their FPV quads.

Dimensions:25x20x8mm
Weight:7.8g

Features
• UBX-M8030 high performance GPS/GNSS Chips:
• Over 2 million effective correlators
• 72 channels in Search mode
• Cold start acquisition sensitivity of -148 dBm and -167 dBm tracking sensitivity
• Up to 10 Hz navigation update rate
• Supports GPS, QZSS, GLONASS , BDS and is ready for Galileo
• Supports AGPS
• Integrated TCXO,LNA,SAW,RTC
• Compact size (φ23.88mm x19.98mmx8.80mm±0.5mm ) suitable for space-sensitive application
• Weight 7.8 grams without TPU Protective Case Shell
• Support standard NMEA 0183,UBX
• This module can be equipped with QMC5883

Performance

A1 All satellites at -130 dBm
A2 CEP, 50%, 24 hours static, -130 dBm, > 6 SVs
A3 Assuming Airborne < 4g platform

PINMAP

Package Included:

- Nano M8 5883 GPS Module *1
- JST 6P Cable *1
- TPU Protective Case Shell *1
