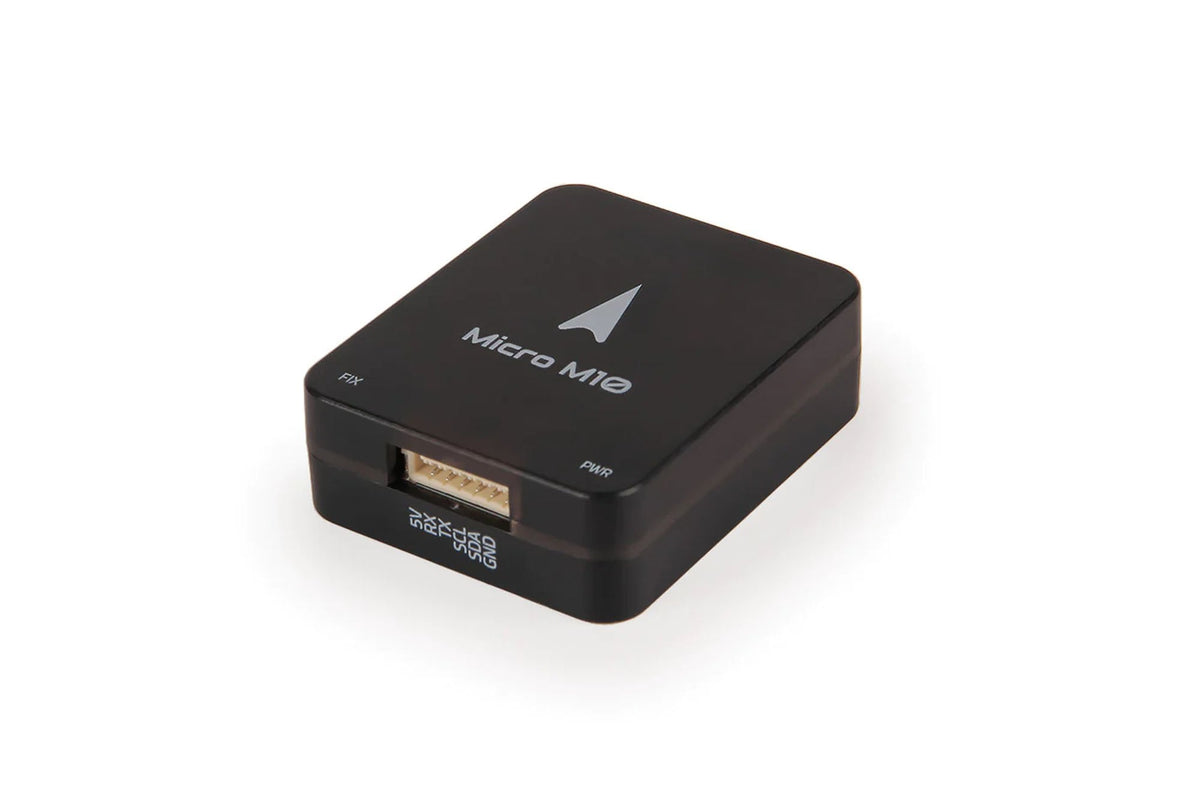

Name: Holybro - Micro M10 GPS - With Case
Brand: Holybro
SKU: HB-02-15-Micro-M10-GPS-Case-12044
Price: 33.90 GBP
Availability: OutOfStock

Out of Stock

Product Details

These Micro GPS uses multi-constellation GNSS powered by u-blox M10, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently. It also comes with the IST8310 compass.

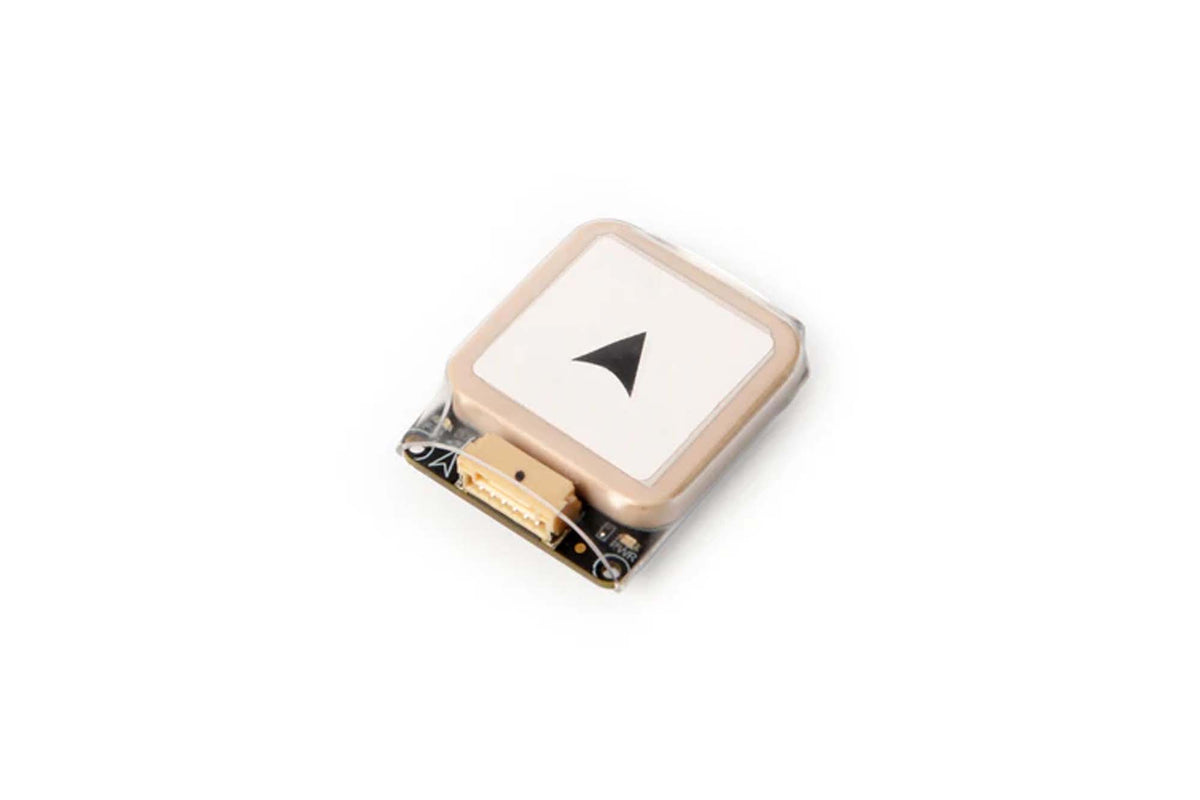

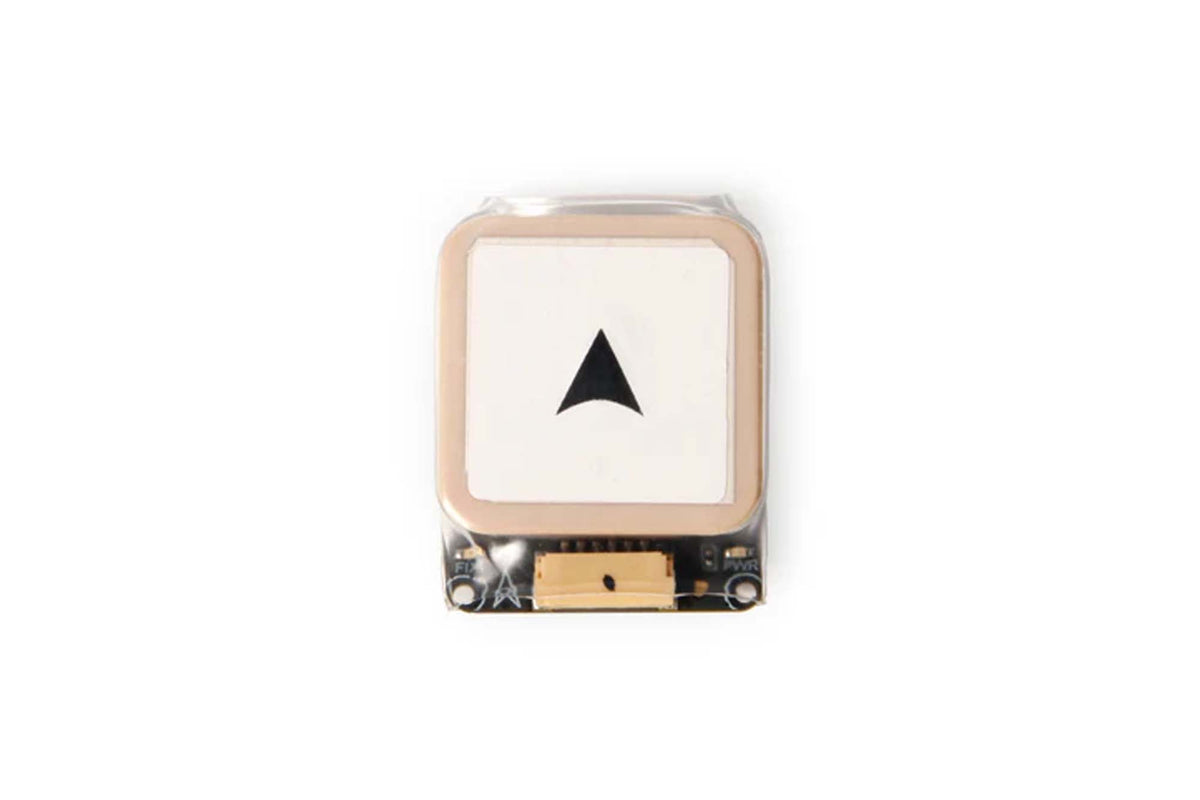

The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Firmware Support for M10 GPS: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

Features:

Newest Ublox 10th Gen GNSS
Fast & Accurate Positioning
IST8310 Compass
Small Form Factor

Specifications

GNSS Receiver	Ublox M10
Number of Concurrent GNSS	Up to 4 GNSS - BeiDou - Galileo - GLONASS - GPS - QZSS
Frequency Band	- GPS L1 - Galileo E1 - GLONASS L1 - BeiDou B1 - SBAS L1 - QZSS L1
Compass	IST8310
Output Protocol	- UBX (U-blox) - NMEA
Accuracy	2.0m CEP
Nav. Update Rate	Up to 25 Hz (single GNSS), Up to 10 Hz (4 concurrent GNSS)
GNSS Augmentation System	EGNOS, GAGAN, MSAS and WAAS QZSS: L1S
Default Baud Rate	115200
Input Voltage	4.7-5.2V

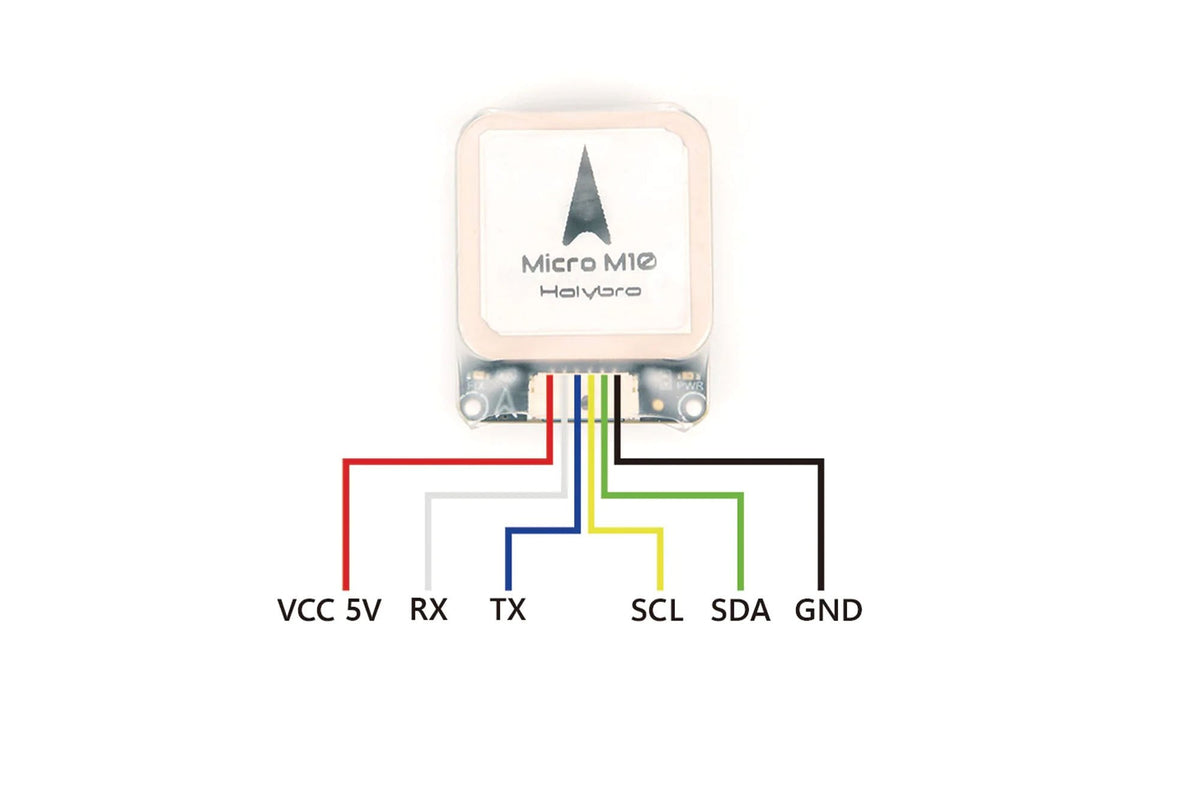

Port Type	JST-GH-6P
Antenna	25 x 25 x 4 mm ceramic patch antenna
Power consumption	Less than 200mA @ 5V
Operating Temperature	-40~80C
Dimension	- 32 x 26 x 9mm (w/o Case) - 34 x 28 x 11mm (With Case)
Weight	- 14g (w/o Case) - 16g (With Case)
Other	- LNA MAX2659ELT+ RF Amplifier - Rechargeable Farah capacitance - Low noise 3.3V regulator

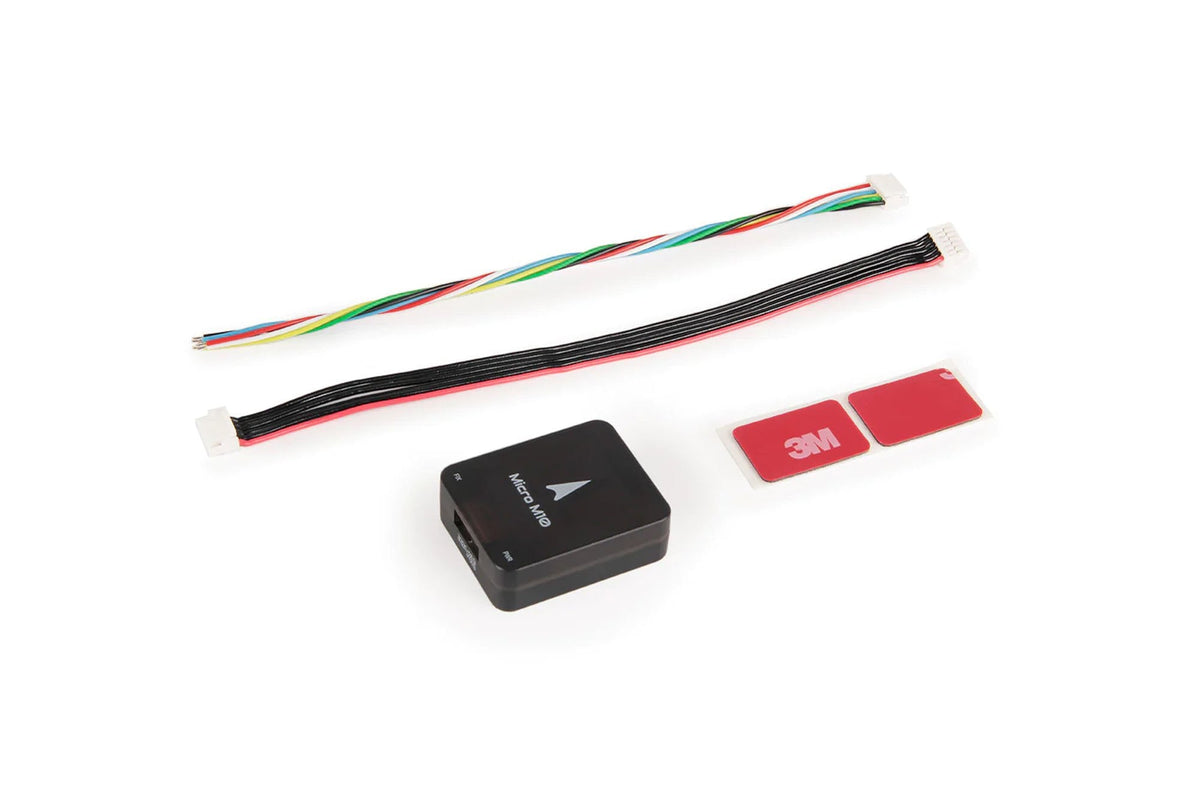

Package contains:

1x Micro GPS module
1x JST GH 6 Position Connector 15 cm
1x JST-GH 6pin Coloured Silicon Cable 15 cm

Product Details

These Micro GPS uses multi-constellation GNSS powered by u-blox M10, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently. It also comes with the IST8310 compass.

The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Firmware Support for M10 GPS: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

Features:

Newest Ublox 10th Gen GNSS
Fast & Accurate Positioning
IST8310 Compass
Small Form Factor
