HolybroHolybro - M10 GPS Standard

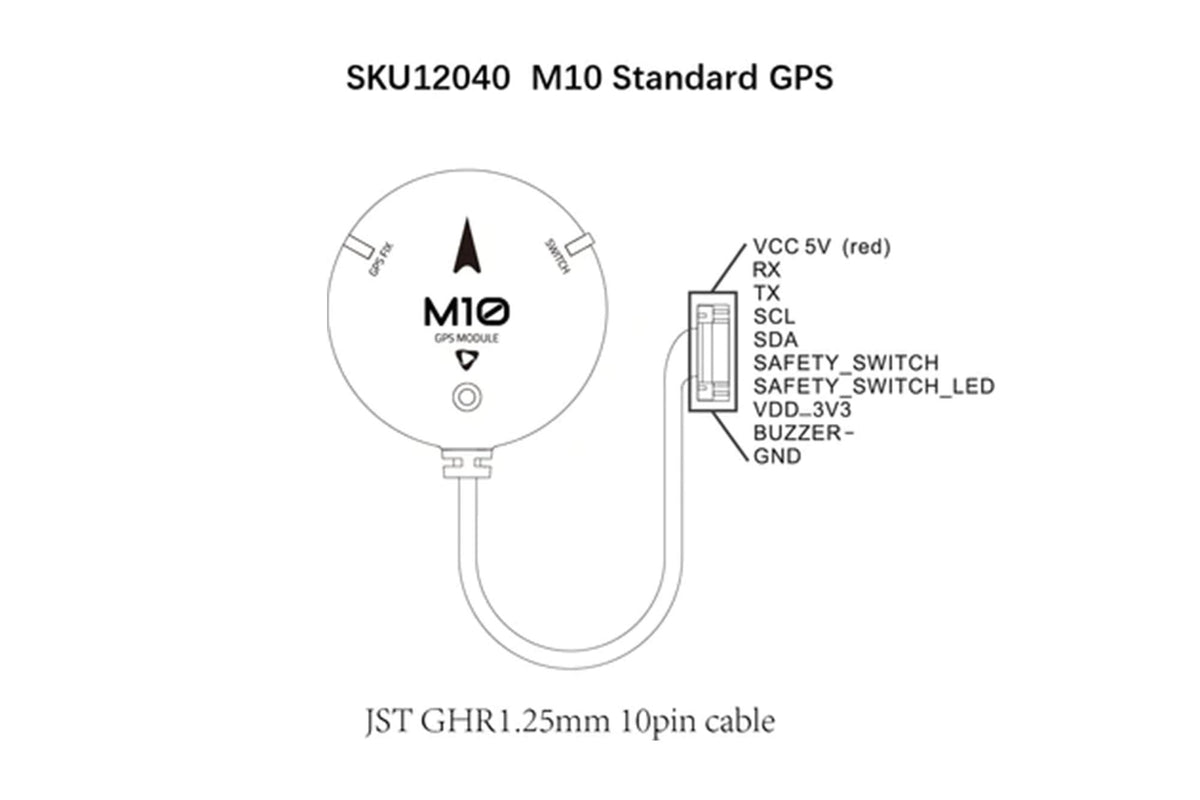

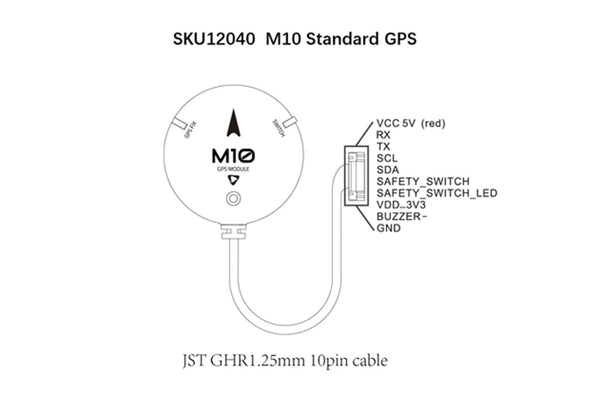

SKU12040 - Holybro M10 GPS (JST GHR1.25mm 10pin cable):

This option is the most common, it is used on the This connector can be used on Pixhawk Standard Flight Controller 10pin “GPS Module”or "GPS1" input port.

The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 5Hz.

The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Firmware Support for M10 GPS:

• PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

Features:

• Newest Ublox 10th Gen GNSS
• Fast & Accurate Positioning
• High-gain 25*25*4mm antenna
• IST8310 Compass
• Internal Buzzer, Safety switch
• Ultra Bright UI RGB LED

Specifications

**Please always check the manufacturer's website for the latest specifications.**

Package contains:

• 1x M10 GPS Module
• 1x Fixed Carbon Fiber GPS mount
