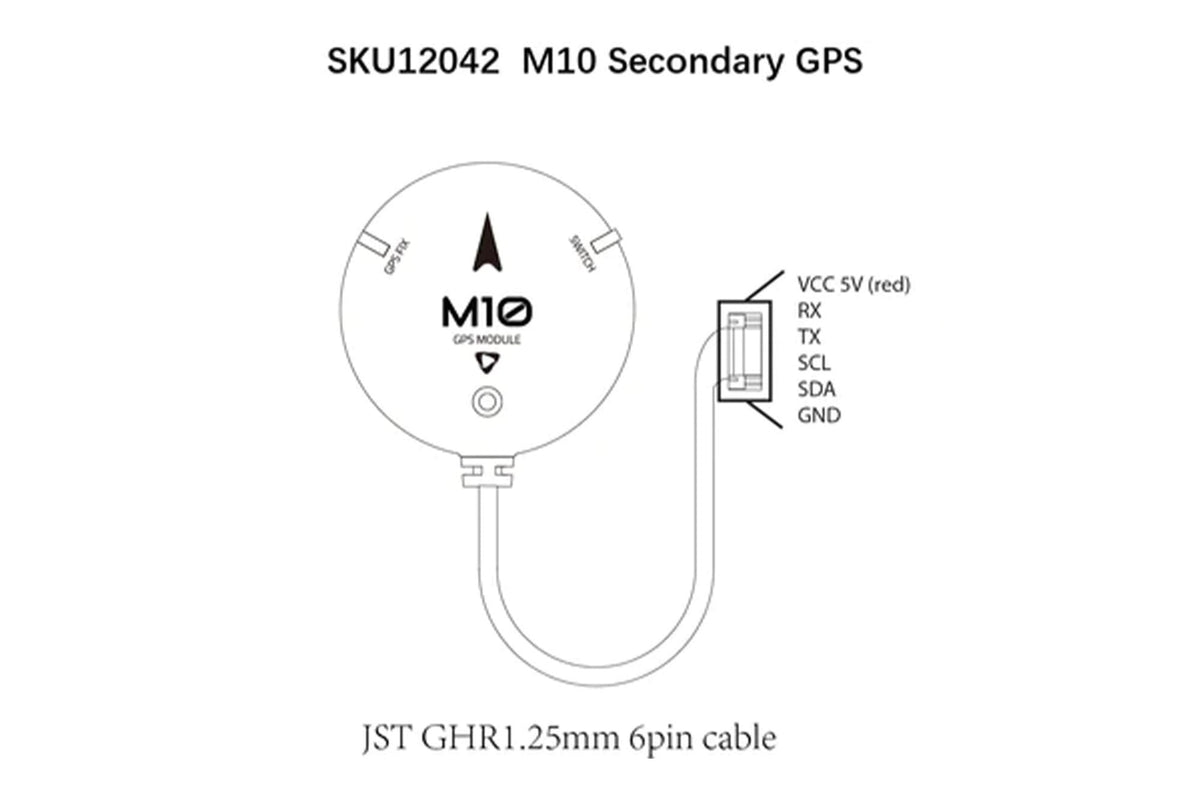

SKU12042 - Holybro M10 Secondary GPS (JST GHR1.25mm 6pin cable):
The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.
It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 5Hz.
The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.
Firmware Support for M10 GPS:
Features:
Specifications
**Please always check the manufacturer's website for the latest specifications.**
|
GNSS Receiver |
Ublox M10 |
|
Number of Concurrent GNSS |
Up to 4 GNSS |
|
BeiDou |
|
|
Galileo |
|
|
GLONASS |
|
|
GPS |
|
|
QZSS |
|
|
Frequency Band |
GPS L1 |
|
Galileo E1 |
|
|
GLONASS L1 |
|
|
BeiDou B1 |
|
|
SBAS L1 |
|
|
QZSS L1 |
|
|
Compass |
IST8310 |
|
Output Protocol |
UBX (U-blox) |
|
NMEA |
|
|
Accuracy |
2.0m CEP |
|
Nav. Update Rate |
Up to 25 Hz (single GNSS), |
|
Up to 10 Hz (4 concurrent GNSS) |
|
|
GNSS Augmentation System |
EGNOS, GAGAN, MSAS and WAAS |
|
QZSS: L1S |
|
|
Default Baud Rate |
115200 |
|
Input Voltage |
4.7-5.2V |
|
Port Type |
JST-GH-10P |
|
Antenna |
25 x 25 x 4 mm ceramic patch antenna |
|
Power consumption |
Less than 200mA @ 5V |
|
Operating Temperature |
-40~80C |
|
Dimension |
φ50 x14.4 mm |
|
Weight |
32g |
|
Cable Length |
26cm (42cm cable purchase separately) |
|
Other |
Tri-color LED |
|
Onboard Buzzer |
|
|
Safety Switch |
|
|
LNA MAX2659ELT+ RF Amplifier |
|
|
Rechargeable Farah capacitance |
|
|
Low noise 3.3V regulator |
Package contains:
SKU12042 - Holybro M10 Secondary GPS (JST GHR1.25mm 6pin cable):
The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.
It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 5Hz.
The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.
Firmware Support for M10 GPS:
Features:
Specifications
**Please always check the manufacturer's website for the latest specifications.**
|
GNSS Receiver |
Ublox M10 |
|
Number of Concurrent GNSS |
Up to 4 GNSS |
|
BeiDou |
|
|
Galileo |
|
|
GLONASS |
|
|
GPS |
|
|
QZSS |
|
|
Frequency Band |
GPS L1 |
|
Galileo E1 |
|
|
GLONASS L1 |
|
|
BeiDou B1 |
|
|
SBAS L1 |
|
|
QZSS L1 |
|
|
Compass |
IST8310 |
|
Output Protocol |
UBX (U-blox) |
|
NMEA |
|
|
Accuracy |
2.0m CEP |
|
Nav. Update Rate |
Up to 25 Hz (single GNSS), |
|
Up to 10 Hz (4 concurrent GNSS) |
|
|
GNSS Augmentation System |
EGNOS, GAGAN, MSAS and WAAS |
|
QZSS: L1S |
|
|
Default Baud Rate |
115200 |
|
Input Voltage |
4.7-5.2V |
|
Port Type |
JST-GH-10P |
|
Antenna |
25 x 25 x 4 mm ceramic patch antenna |
|
Power consumption |
Less than 200mA @ 5V |
|
Operating Temperature |
-40~80C |
|
Dimension |
φ50 x14.4 mm |
|
Weight |
32g |
|
Cable Length |
26cm (42cm cable purchase separately) |
|
Other |
Tri-color LED |
|
Onboard Buzzer |
|
|
Safety Switch |
|
|
LNA MAX2659ELT+ RF Amplifier |
|
|
Rechargeable Farah capacitance |
|
|
Low noise 3.3V regulator |
Package contains:
