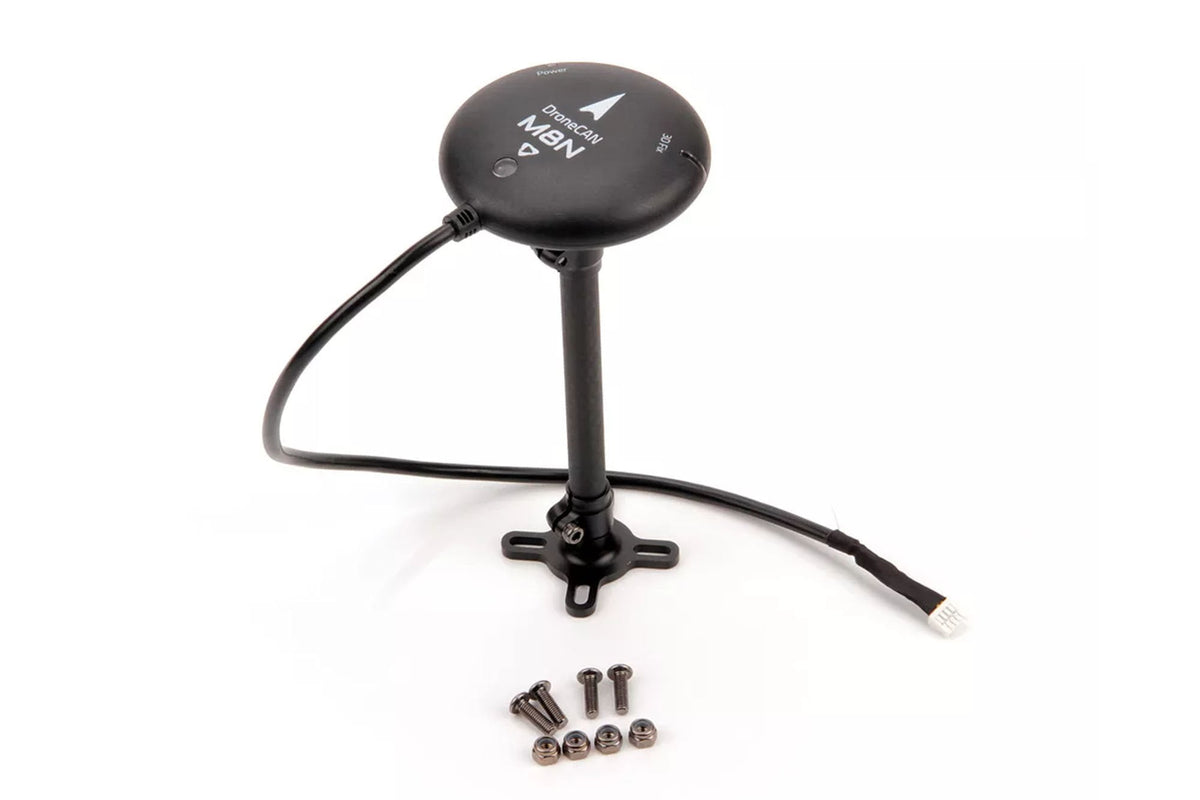

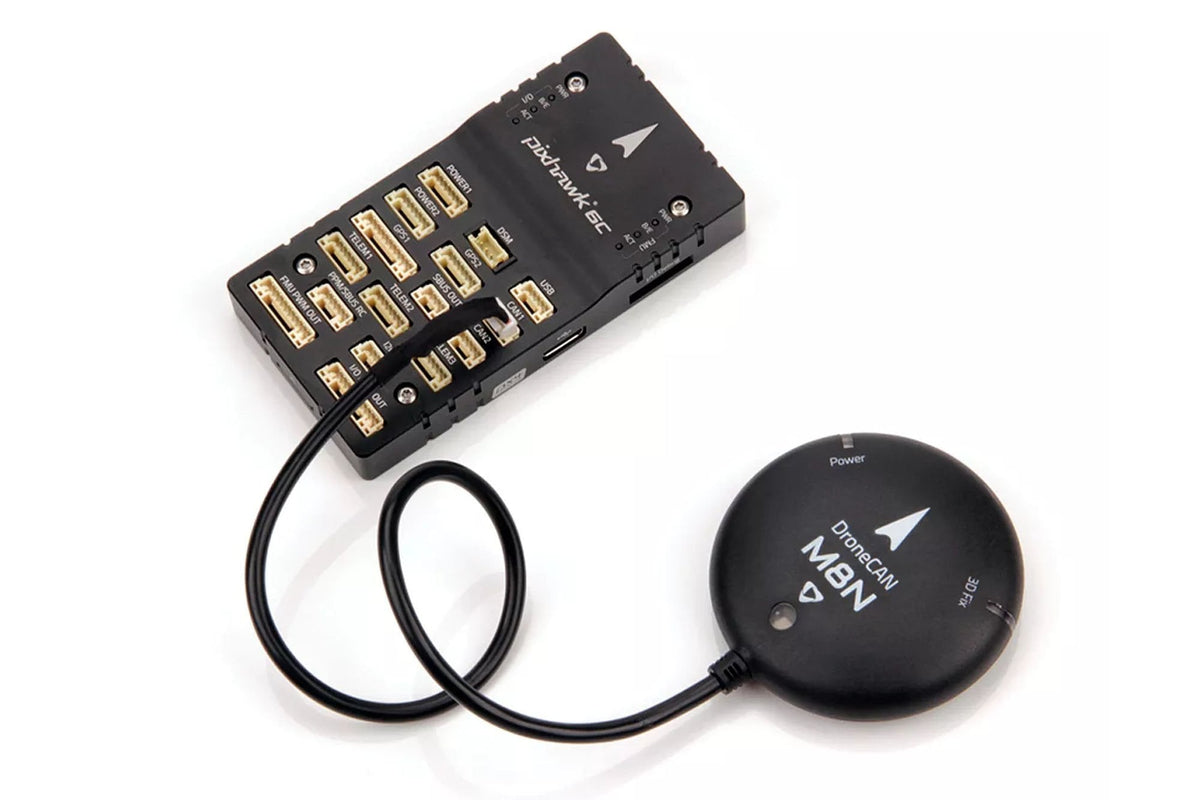

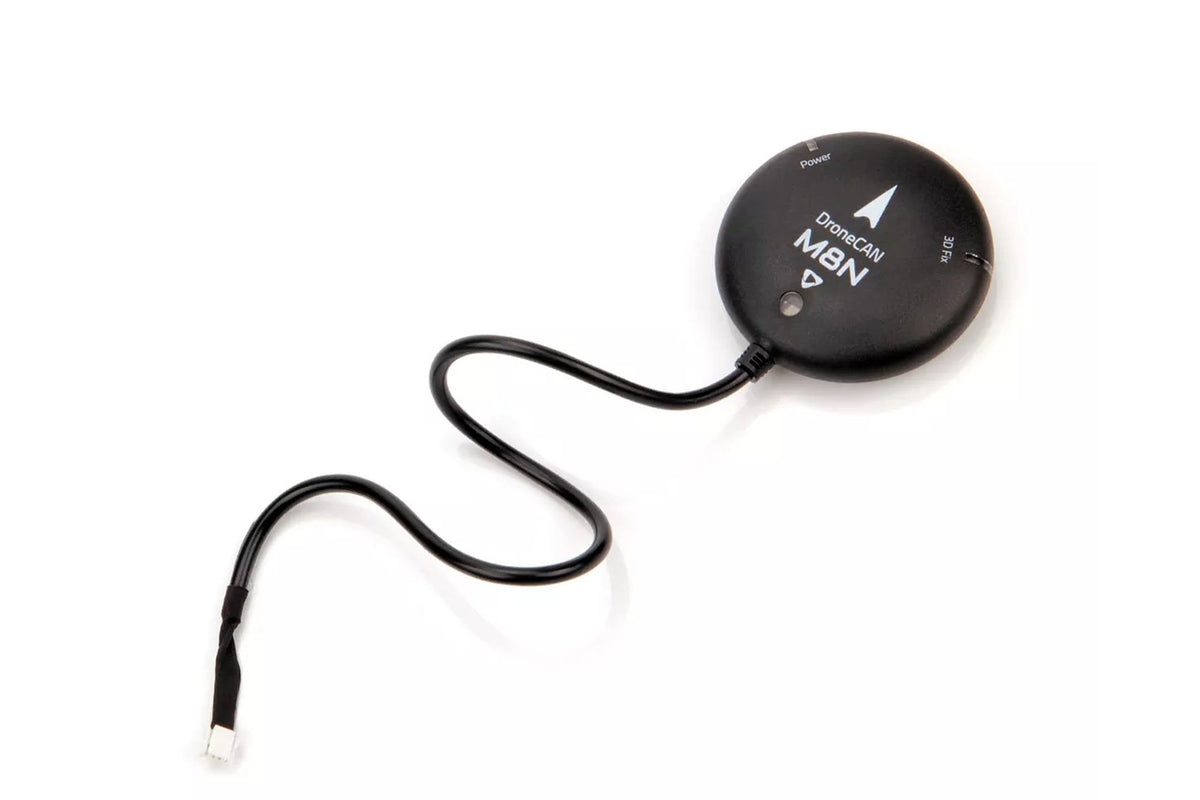

Name: Holybro -DroneCAN M8N GPS
Brand: Holybro
SKU: HB-02-02-DroneCAN-M8N-GPS-12024
Price: 90.19 GBP
Availability: OutOfStock

Out of Stock

Product Specifications

Product Details

The Holybro DroneCAN M8N or M9N GPS is a affordable & high performance GNSS system. Built with CAN protocol and equipped with STM32G4 processor, it provides fast processing speed and great reliability. It has built-in an BMM150 compass and tri colored status LED. It runs on a Chibios real-time operation system. Its open source design is ideal for developers who need special requirements on their navigation system.

For other technical information, please go to https://docs.holybro.com/

DroneCAN

DroneCAN is the primary CAN protocol used by the ArduPilot and PX4 projects for communication with CAN peripherals. It is an open protocol with open communication, specification and multiple open implementations.

Product Details

The Holybro DroneCAN M8N or M9N GPS is a affordable & high performance GNSS system. Built with CAN protocol and equipped with STM32G4 processor, it provides fast processing speed and great reliability. It has built-in an BMM150 compass and tri colored status LED. It runs on a Chibios real-time operation system. Its open source design is ideal for developers who need special requirements on their navigation system.

For other technical information, please go to https://docs.holybro.com/

DroneCAN

DroneCAN is the primary CAN protocol used by the ArduPilot and PX4 projects for communication with CAN peripherals. It is an open protocol with open communication, specification and multiple open implementations.

Specification

	DroneCAN M8N
GNSS Receiver	Ublox NEO M8N
Number of Concurrent GNSS	2 (Default GPS + GLONASS)
Processor	STM32G4 (170MHz, 512K FLASH)
Compass	BMM150
Frequency Band	GPS: L1C/A GLONASS: L10F Beidou: B1I Galileo: E1B/C
GNSS Augmentation System	SBAS: WAAS, EGNOS, MSAS, QZSS
Navigation Update	5Hz Default(10Hz MAX)
Accuracy	2.5m
Speed Accuracy	0.05 m/s
Max # of Satellites	22+
Communication Protocol	DroneCAN @ 1 Mbit/s
Supports Autopilot FW	PX4, Ardupilot
Port Type	GHR-04V-S
Antenna	25 x 25 x 4 mm ceramic patch antenna
Power consumption	Less than 200mA @ 5V
Voltage	4.7-5.2V
Operating Temperature	-40~80C
Size	Diameter: 54mm Thickness: 14.5mm

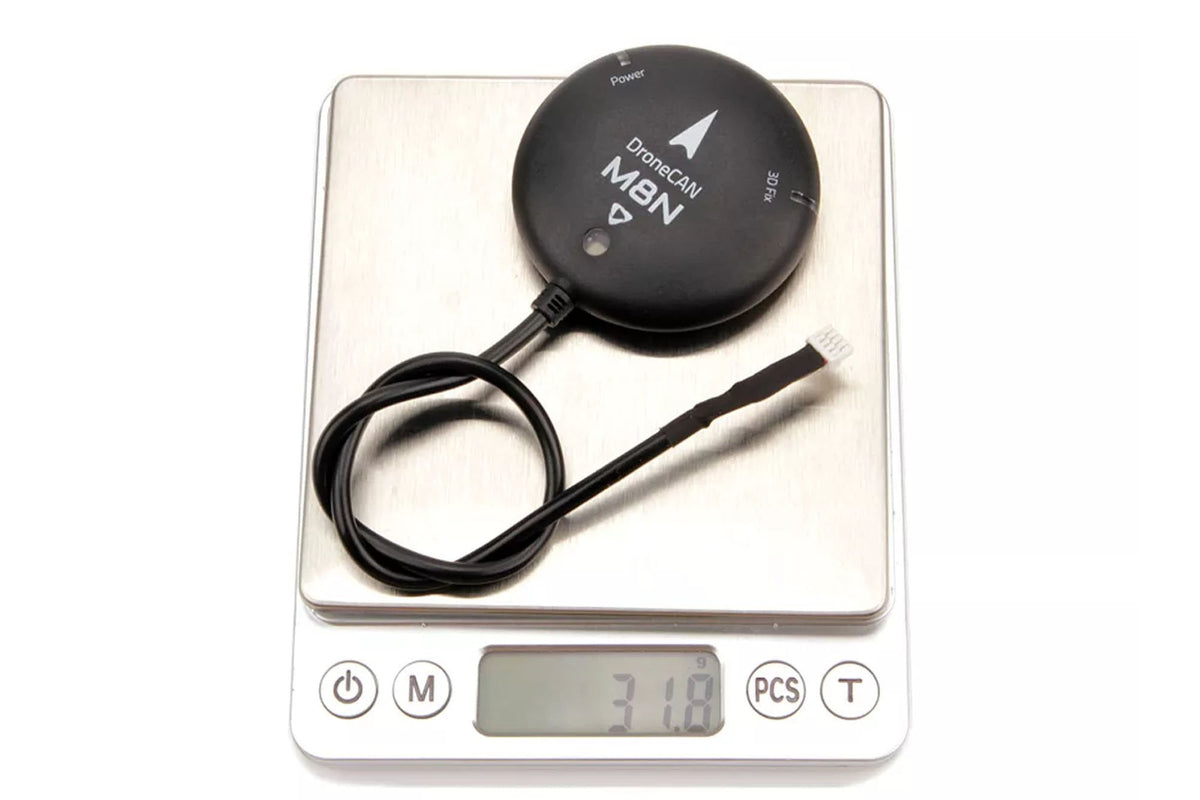

Weight	36g
Cable Length	26cm
Other Notes	- LNA MAX2659ELT+ RF Amplifier - Rechargeable Farah capacitance - Low noise 3.3V regulator
