HobbywingHobbywing - XRotor Pro H130A 12-14S BLDC

£274.99 (inc. VAT)
£229.16 (ex. VAT)
Out of stock
Product Specifications
Product Details

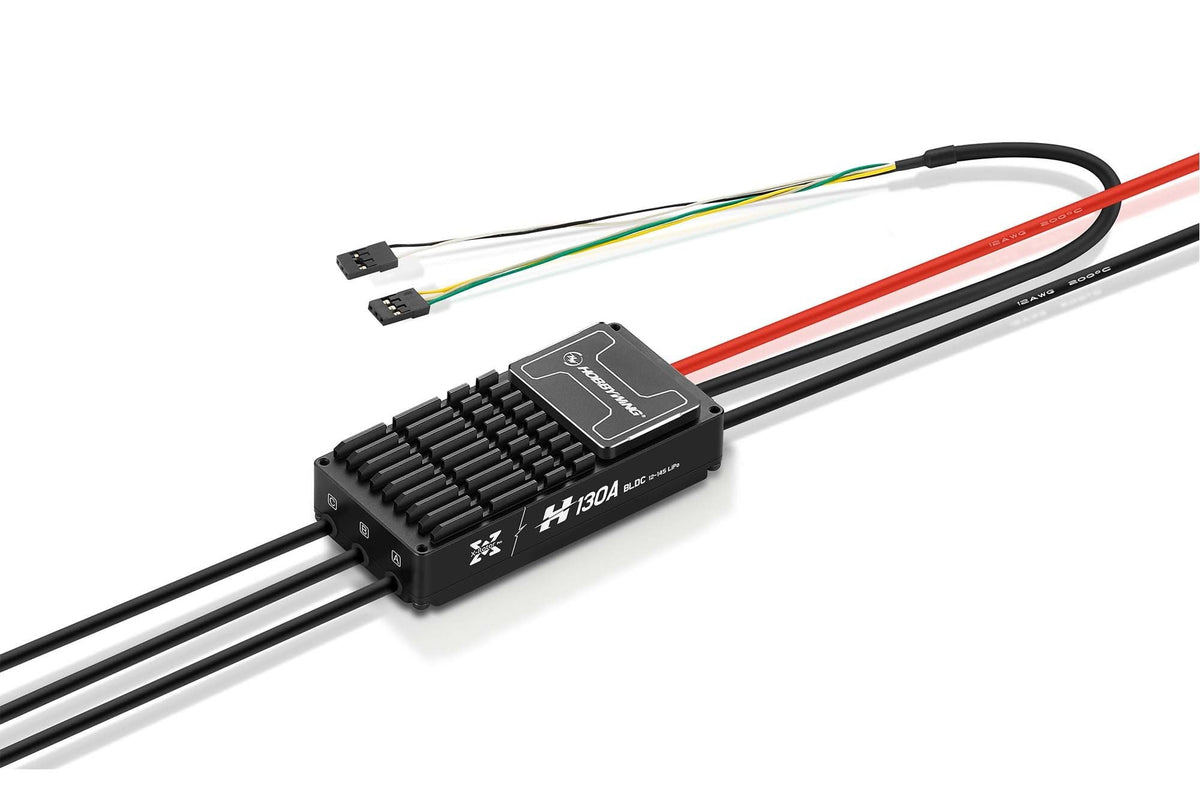

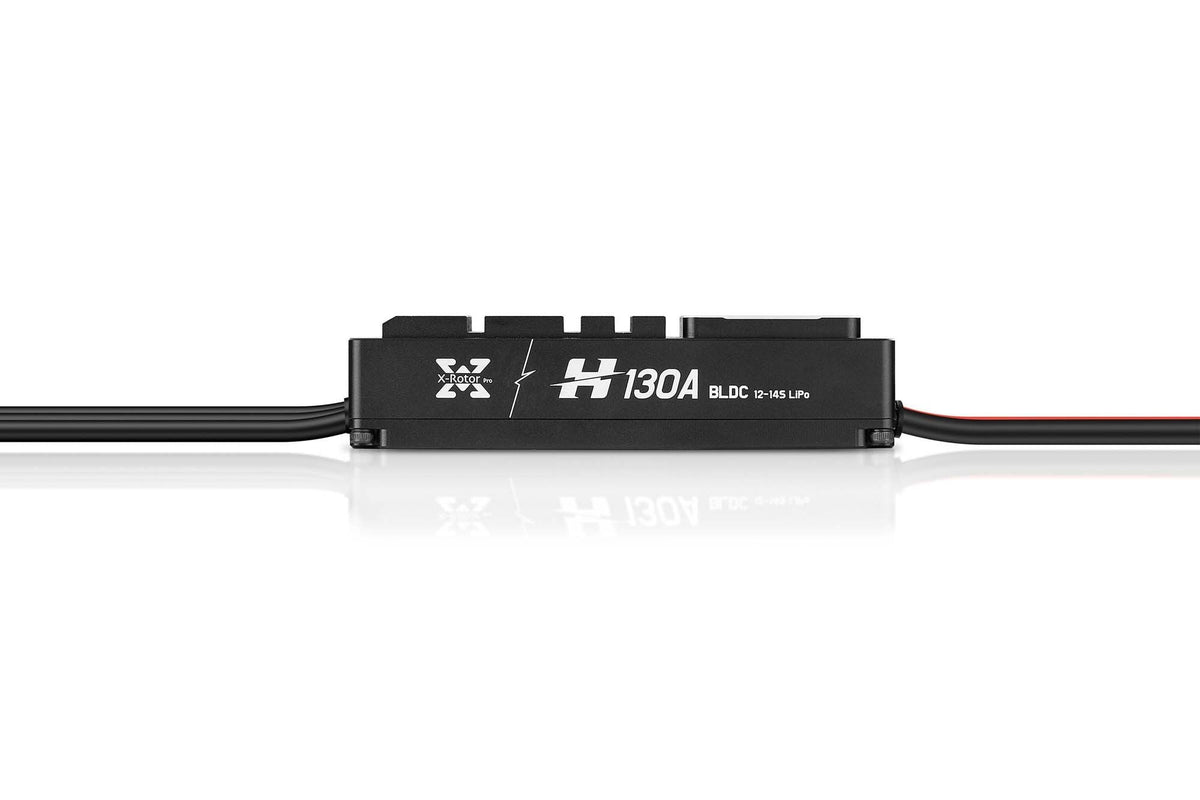

Hobbywing XRotor Pro H130A 12-14S BLDC



Specification:

  • Voltage range - 6-14S(18-65V)
  • Continuous current - 60A (good heat dissipation)
  • Maximum current - 150A (3 seconds)
  • Ambient temperature - -40℃~65℃
  • Methods of communication - CAN+485 bus (serial port can be customized)
  • Isolation method - Throttle/communication isolation
  • Firmware upgrades - In the tank
  • Digital communication throttle - Yes (CAN)
  • PWM level - 5V/3.3V
  • PWM frequency - 50-500Hz
  • PWM pulse duration - 1100-1940μS
  • Throttle stroke calibration - Curing is not calibrating
  • Double throttle - Yes (CAN+PWM)
  • Propeller positioning - Optional, the maximum current of the fixed propeller is user-configurable
  • Fault storage - 2-48 hours of real-time data and fault data, real-time up to ms level
  • Ingress protection - IP55 (IP67 can be customized)
  • Product weight (without wire) - 148g /IPC 153g
  • Product volume - 96.5*46*23.5mm
  • Weight specification - Input cable: silicone wire-12AWG-200mm Output cable: silicone wire-14AWG-150mm Signal cable: shielded wire-5 cores-500mm-2pcs



Package contains:

1x XRotor Pro H130A 12-14S BLDC ESC Multirotor
