Name: Hobbywing- XRotor FPV G2 65A 4in1 ESC
Brand: Hobbywing
SKU: HBW-02-13-XRotor-FPV-G2-65A-4in1-ESC
Price: 73.85 GBP
Availability: InStock

Product Specifications

Product Details

Hobbywing’s XRotor 65A G2 4-in-1 ESC. This 4-in-1 ESC is equipped with the latest high-performance 32-bit ARM F4 microprocessor, increasing operating frequency to 120MHZ. In addition it supports 24K-128KHz PWM frequency, which can be dynamically adjusted adjusted for precision throttle control. It comes loaded with the latest 32bit tech, as well as BLHeli32 firmware, DShot1200, Larger FETs, direct pins for a capacitor, and a choice of either a plug n’ play ESC connector or solder pads for the flight controller.

Hobbywing electronics are rock solid and this ESC is no exception. Extra focus was put into this ESC to make it extremely reliable for any setup you are running. For instance, the ESC comes with a conformal coated for water resistance protection, a nice touch.

Product Details

Hobbywing’s XRotor 65A G2 4-in-1 ESC. This 4-in-1 ESC is equipped with the latest high-performance 32-bit ARM F4 microprocessor, increasing operating frequency to 120MHZ. In addition it supports 24K-128KHz PWM frequency, which can be dynamically adjusted adjusted for precision throttle control. It comes loaded with the latest 32bit tech, as well as BLHeli32 firmware, DShot1200, Larger FETs, direct pins for a capacitor, and a choice of either a plug n’ play ESC connector or solder pads for the flight controller.

Hobbywing electronics are rock solid and this ESC is no exception. Extra focus was put into this ESC to make it extremely reliable for any setup you are running. For instance, the ESC comes with a conformal coated for water resistance protection, a nice touch.

Features:

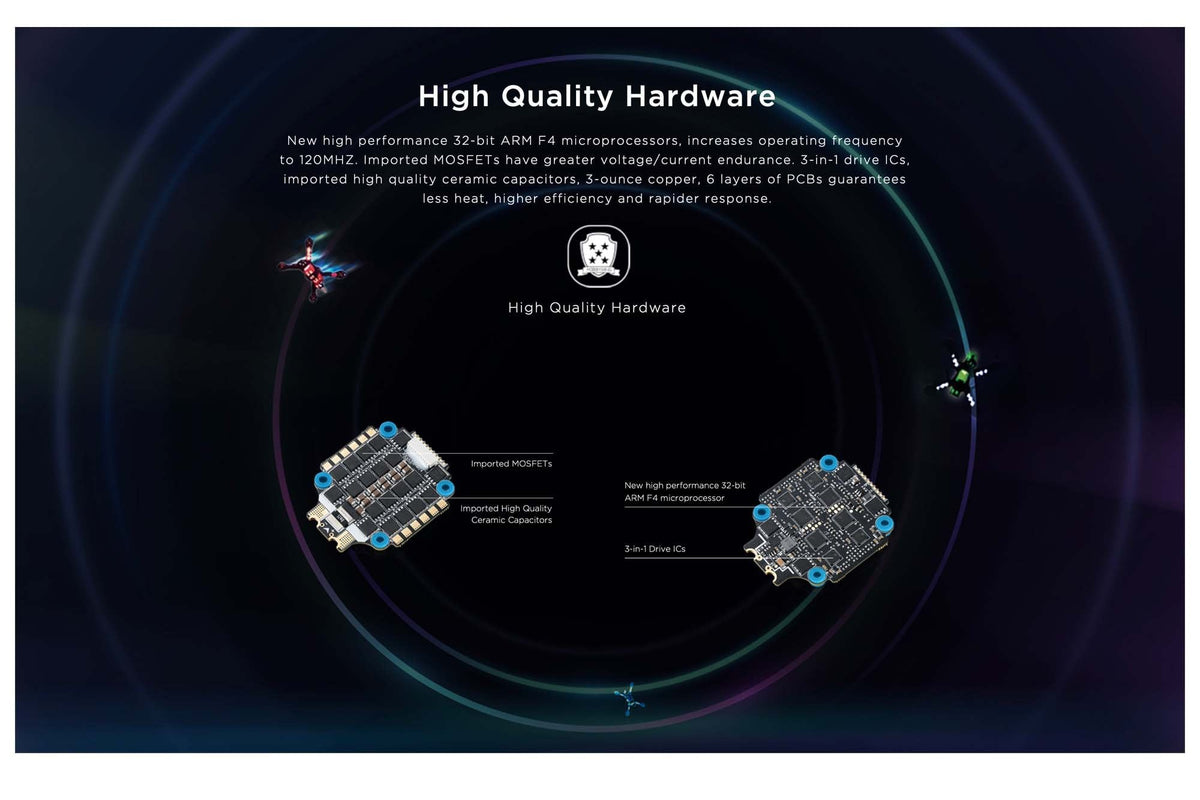

High-performance 32-bit ARM F4 microprocessor that reaches frequencies of 120MHz.
128KHz dynamic PWM support ensuring precision throttle control.
High-quality imported hardware: MOSFETs and ceramic capacitors.
Highly Integrated design with 4 high-performance 65A BLHeli_32 DShot1200 ESCs and a 5V BEC.
Supports a variety of throttle modes: DShot, Oneshot, Multishot, Regular PWM, Proshot and more.
Ready with the 3rd-generation BLHeli-32 firmware for performance enhancement and rich functionality

Specifications:

Model: XRotor FPV G2 65A 4in1 ESC
Cont/Peak Current: 60Ax4/ 80Ax4
Input Voltage: 3-6S Lipo
BEC Output: 5V & 0.6A
Input Wires: Red-12AWG-130mm/ Black-12AWG-130mm
Output Wires: No wires but solder tabs
Input Connectors: XT60(w/ Wires Soldered on)
Output Connectors: No
Size: 52x42x6.6mm
Weight: 15g
Firmware: Hobbywing_XRotor_BLHeli_32_AT421 Firmware
ESC Programming: BLHeliSuite32
Stick Programming: Supported
DEO: Supported
Throttle Range Calibration: Supported
Oneshot125 Mode: Supported
Oneshot42 Mode: Supported
Multishot Mode: Supported
DShot150/200/600/1200: Supported
Timing: Supported
Motor Rotation: Supported

Package contains:

1x XRotor FPV G2 65a 4in1 ESC
