Product Specifications
Product Details

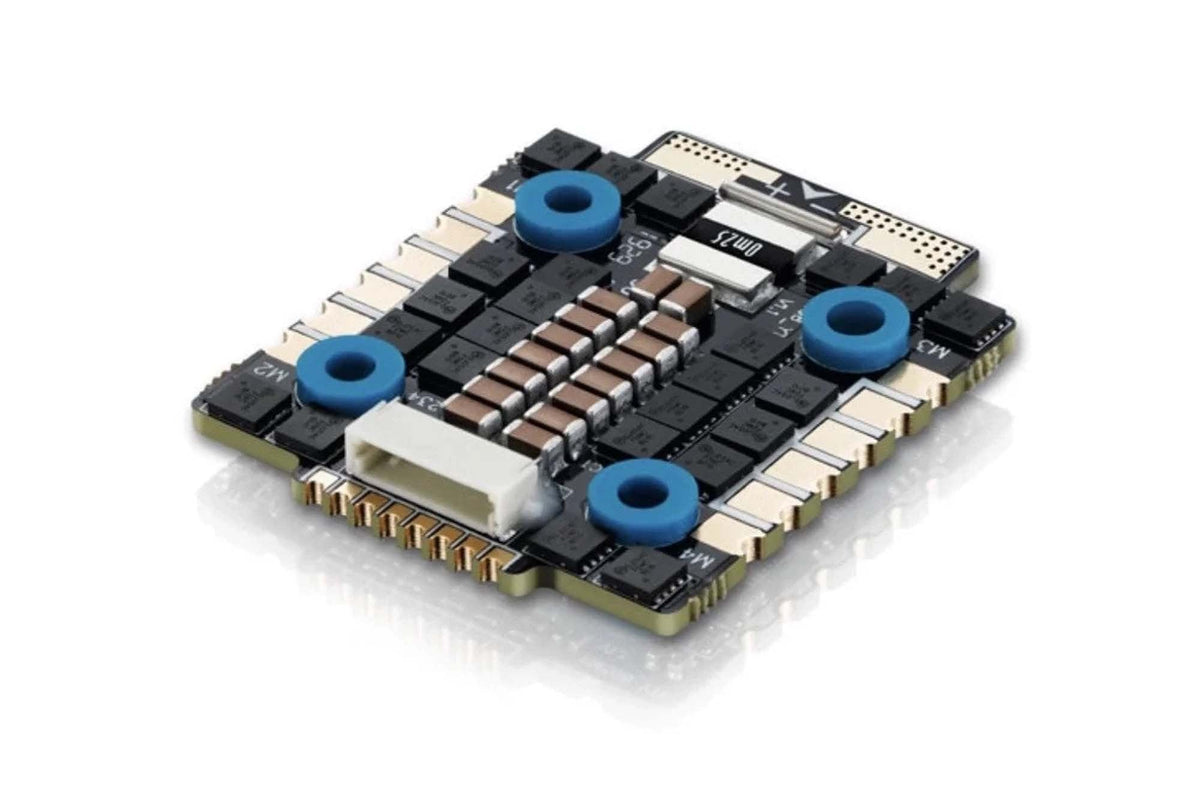

The Hobbywing Xrotor FPV G2 4in1 ESC comes in an ultra-compact 20X20mm mounting hole spacing design, ensuring a streamlined, lightweight profile for your drone. It’s so small, it makes a hummingbird look like a jumbo jet.
Armed with a cutting edge 32-bit ARM F4 microprocessor. This runs at a breathtaking operating frequency of 120MHz, tailored specifically for competition-level FPV.
With support for a dynamic PWM frequency ranging from 24K to 128KHz, it allows you to adjust your throttle control with the accuracy of a Swiss watchmaker. Whether you’re threading the needle through an obstacle or pushing for that final burst of speed, the Hobbywing Xrotor FPV G2 4in1 ESC delivers pinpoint accuracy every time.
Packaged in a package the size of a flight controller (FC), this ESC includes four high-performance 45A BLHeli_32 DShot1200 ESCs and a built-in voltmeter. Your FC can monitor amp and volt in real time.
Moreover, with two ways for connecting the ESC to an FC, either by soft cables or soldering via solder tabs and a shock-absorbing design of mounting holes, this device is as flexible and resilient.
Features:
- Lightweight and compact 20X20mm design
- 32-bit ARM F4 microprocessor for stellar performance
- Dynamic 128KHz PWM for precise throttle control
- Highly integrated with 4 high-performance 45A BLHeli_32 DShot1200 ESCs
- Built-in voltmeter for real-time amp and volt monitoring
- Two connection methods for ESC to FC – soft cables and solder tabs
- Shock-absorbing mounting holes design
- Tailored for competition-level FPV racing
Specification:
- Product number - 30902065
- Cont./Peak Current - 45Ax4/60Ax4
- Input Voltage - 3-6s Lipo
- BEC Output - No
- Input Wires - Red-14AWG-100mm x1
- Output Wires - Black-14AWG-100mm x1
- Input Connectors - XT60 (w/ Wires Soldered on)
- Output Connectors - No
- Size - 40x33x5mm
- Weight - 12g
- Firmware - Hobbywing_XRotor_BLHeli_32_AT421
- ESC Programming - Supported
- Programming Tool - BLHeliSuite32
- DEO - Supported
- Throttle Range Calibration - Supported
- Oneshot125 Mode - Supported
- Oneshot42 Mode - Supported
- Multishot Mode - Supported
- DShot150/300/600/1200 - Supported
- Timing - Supported
- Motor Rotation - Supported
Package contains:
1x XRotor 45a 4in1 FPV G2
