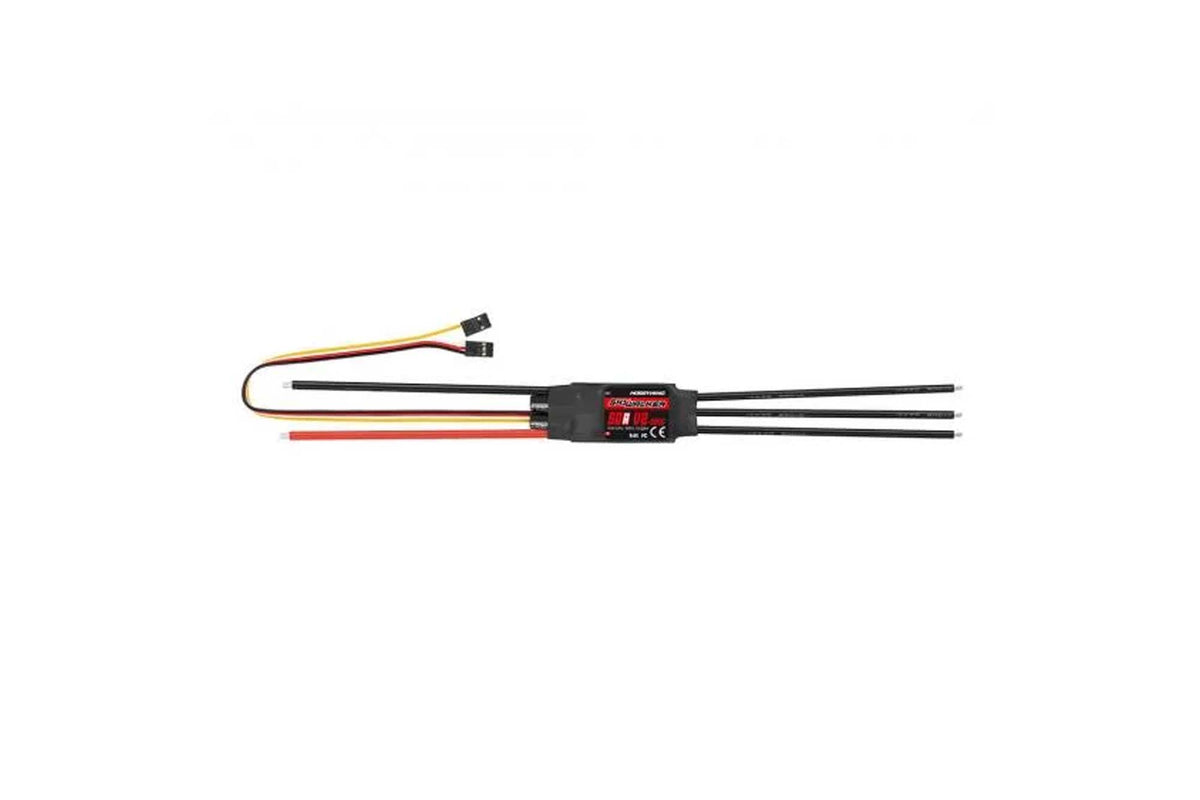

HobbywingHobbywing- Skywalker 50A V2 UBEC 3-6s

Hobbywing- Skywalker 50A V2 UBEC 3-6s

The Hobbywing Skywalker 50A 6S V2 Speed Control (HW30216400) is a dedicated RC aeroplane ESC offering 3–6S LiPo capability with a robust 50A continuous rating and 70A burst. The V2 6S variant adds wider voltage support, longer 14AWG motor leads and a powerful 6A/5V switch‑mode BEC. A 32‑bit microcontroller (up to 96 MHz) and DEO technology deliver precise throttle response and cooler running. Extensive programming covers braking, cut‑off, start‑up, timing and active freewheeling, while built‑in protections help safeguard your model. Programme via your transmitter or the optional LED Program Box (HW30501003). Particularly suitable for RTF models and first builds.

Features:

• 3–6S LiPo support compared with 3–4S on the regular 50A V2
• Three 100 mm 14AWG motor output leads (replacing 75 mm 16AWG)
• Suggested compatibility with various brushless motors
• Integrated 32‑bit microprocessor
• DEO (Driving Efficiency Optimization) for improved throttle response and reduced ESC temperature
• Programmable braking modes can help reduce landing distance
• Protection features: low‑voltage shutdown, overheat protection and throttle signal loss protection
• Easy programming via LED Program Box (HW30501003) or transmitter

Specifications:

• Continuous Current: 50A
• Peak Current: 70A (up to 10 seconds)
• Input Voltage: 3–6S LiPo
• BEC: 6A / 5V switch‑mode (SBEC)
• Dimensions: 73 × 30 × 12 mm
• Weight: 68 g

Package contains:

• 1x Skywalker 50A V2 UBEC 3-6S Speed Controller
