Silent Constant current stability
- Advanced and Safty E-power Switch
- Long lifespan, Waterproof, Dustproof, Impact resistant

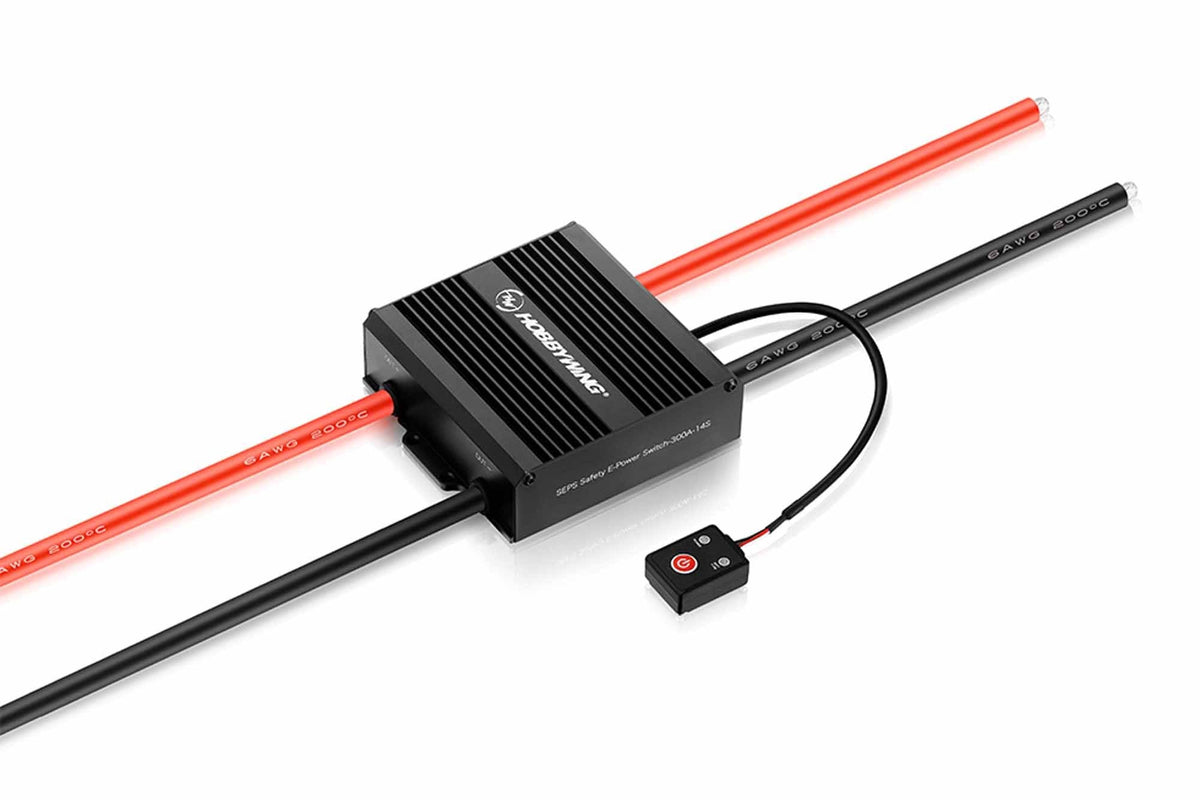

- 300A-14S/18S High-pressure Safety E-power Switch
**Wire is 6AWG
Package contains
- 1 x Safety E-Power Switch 300A, (14S OR 18S)
Silent Constant Current Stability
Advanced And Safety E-power Switch Long Lifespan, Waterproof, Dustproof, Impact Resistant300A-14S/18S High-pressure Safety E-power Switch
Advanced Electronical Switch
The Advanced Electronical Switches Are Waterproofed, Dustproofed And Are Impact Resistant To Increase Its Lifespan. Control The On/Off Switch At Any Time To Avoid The Possibility Of The Motor Moving. Note: After The Switch Is Turned On, It Will Take Approximately 4 Seconds Before It Is Powered On.
High Voltage, High Current
Supports High-voltage Lithium Polymer Battery (Standard Voltage 3.85V), And Up To 14S, 18S,Respectively. Up To 300A Current Can Be Used Continuously In The Heat Dissipation Conditions Of 5M/S Wind Speed.
High Voltage, High Current
300A Current Can Be Used Continuously
Anti-spark Technology4S The Delayed Power-on Technology
The Delayed Power-on Technology Is A Clever Application Which Takes Approximately 4 Seconds To Be Fully Energized After Power Is Turned On. It Completely Eliminates Sparks And Noises Generated During The Power-up Process And Increase The Longevity Of The Esc.
Ip67 Protection, All-weather Operational
Adopting The Full Glue Encapsulation Process, The Protection Level Reaches Ip67,And It Is Able To Handle Various Harsh Environments.
Long Lifespan
Industrial Grade Materials, 1000+ Hours Of Continuous Power Testing,300+ Hours Of Continuous Flight Testing, Multi-item Strict Testing To Ensure Flight Safety.
Specification
14S-300A
Input voltage: 36V-60.9V
Volume (with screw holes): 98.0*90.0*24.0mm
Weight: 518.5±5g
18S-300A
Input voltage: 36V-78.3V
Volume (with screw holes): 98.0*90.0*24.0mm
Weight: 518.5±5g
