Name: Hobbywing - H6M Power System - (1 Pair CW/CCW)
Brand: Hobbywing
SKU: HBW-H6M-130KV-Power System
Price: 560.00 GBP
Availability: InStock

Hobbywing - H6M Power System - (1 Pair CW/CCW)

Product Specifications

Product Details

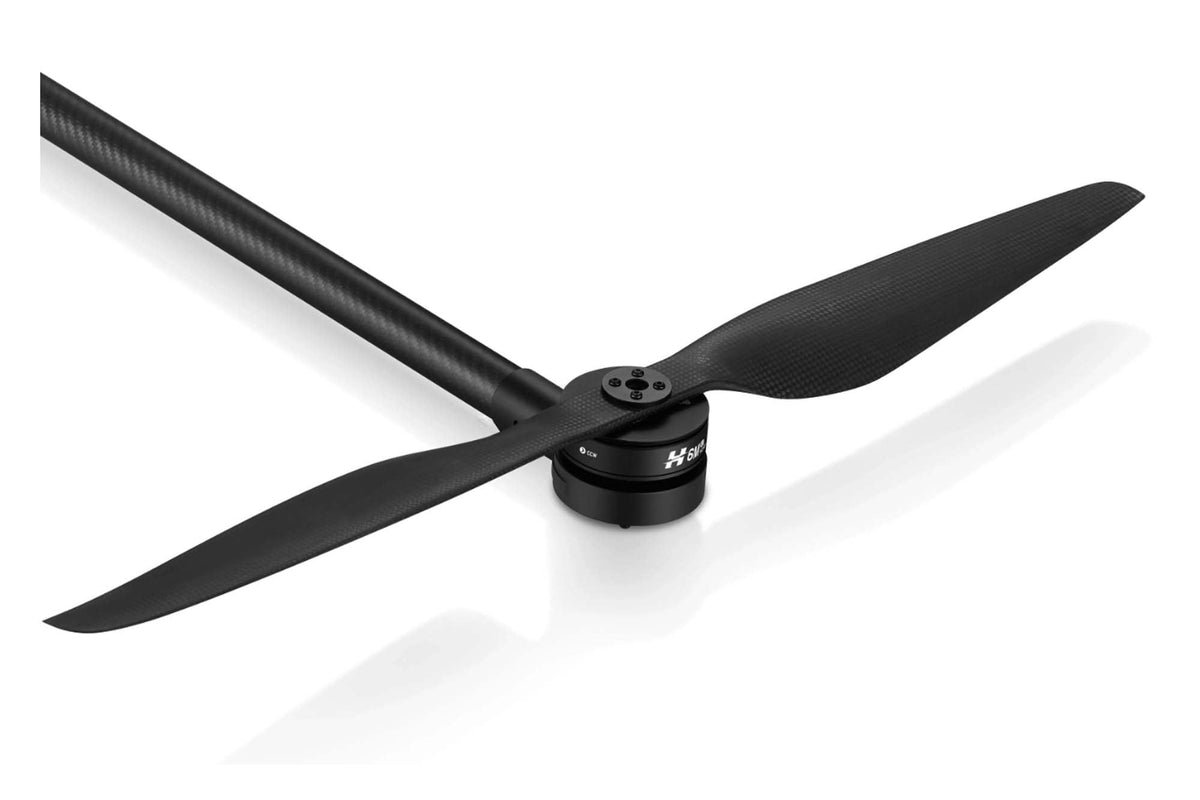

Hobbywing H6M 130KV Power System

**Carbon Tube is not included**

**Shipping may need to be re-calculated dependent on delivery location due to courier surcharges**

Package Contains:

1x Pair of motors 1 CW and 1 CCW
1x Pair of 22*7.8 Propeller
*Carbon tube not included within set

Specifications

Max Thrust:

Recommended Battery:

Recommended Takeoff Weight:

Total Weight（without propellers):

Powertrain Arm Tube Outer Diameter:

Operating Temperature:

Ingress Protection:

6.5kg

12S

2-2.5KG

418g

φ30mm

20℃~50℃

IP45

Motor

Stator Size:

KV:

Motor Size:

Φ62*10 mm

130KV

Φ67.7 * 33.1mm

ESC

ESC:

PWM Input Signal Level:

Throttle Pulse Width:

Signal frequency:

Max Allowable Voltage:

Continuous Current( Non-hermetic

Ambient Temperature ≤60℃):

Maximum Current( Non-hermetic

Ambient Temperature ≤60℃):

Communication Port:

Digital Communication Throttle:

Firmware Upgrade:

60A-FOC

3.3V/5V

1100-1940μs

50-500HZ

63V

20A
60A

60A

CAN

CAN

Support

Propeller

Diameter X Thread Pitch:

Total weight( inc. adapter):

22*7.8"

36g

Product Details

Hobbywing H6M 130KV Power System

**Carbon Tube is not included**

**Shipping may need to be re-calculated dependent on delivery location due to courier surcharges**

Package Contains:

1x Pair of motors 1 CW and 1 CCW
1x Pair of 22*7.8 Propeller
*Carbon tube not included within set


Specifications	Max Thrust: Recommended Battery: Recommended Takeoff Weight: Total Weight（without propellers): Powertrain Arm Tube Outer Diameter: Operating Temperature: Ingress Protection:	6.5kg 12S 2-2.5KG 418g φ30mm 20℃~50℃ IP45
Motor	Stator Size: KV: Motor Size:	Φ6210 mm 130KV Φ67.7 33.1mm
ESC	ESC: PWM Input Signal Level: Throttle Pulse Width: Signal frequency: Max Allowable Voltage: Continuous Current( Non-hermetic Ambient Temperature ≤60℃): Maximum Current( Non-hermetic Ambient Temperature ≤60℃): Communication Port: Digital Communication Throttle: Firmware Upgrade:	60A-FOC 3.3V/5V 1100-1940μs 50-500HZ 63V 20A 60A 60A CAN CAN Support
Propeller	Diameter X Thread Pitch: Total weight( inc. adapter):	22*7.8" 36g
