Product Specifications
Product Details

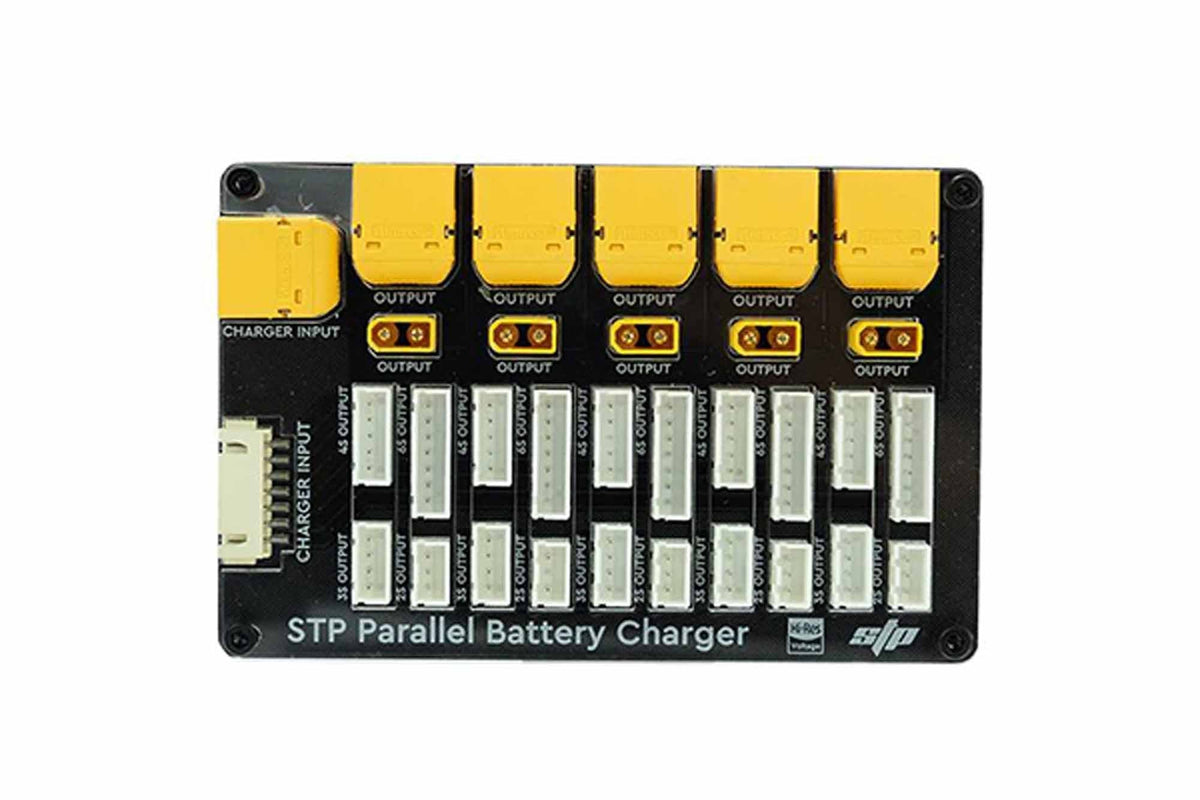

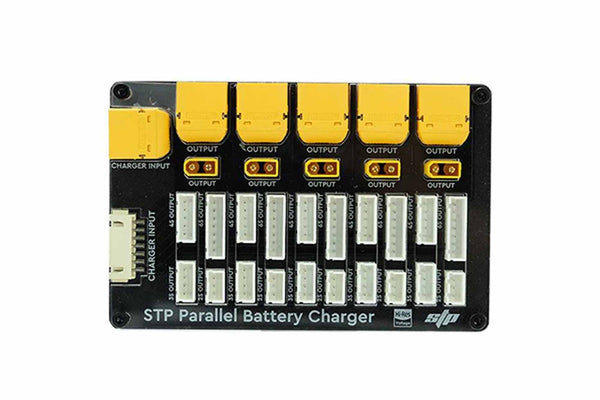

A perfect tool to keep all those micro batteries in tip-top shape. Charge and balance up to 6 batteries at the same time with this Parallel Balance Charging Board.
Specifications
Material: Acrylic board
Dimension: 60*100*20MM
Weight: 75g
MAX XT-60 Single Port Input Current: 30A (10℃) / 45A (30℃)
MAX XT-60 Single Port Output Current: 30A (10℃) / 45A (30℃)
MAX XT-30 Single Port Output Current: 30A (10℃) / 45A (30℃)
MAX Balance Port Input Current: 10A per wire (10℃) / 15A per wire (30℃)
MAX Balance Port Output Current: 10A per wire (10℃) / 15A per wire (30℃)
S3
Output Plugs
5 x XT-30 at 2-4S
1 x XT-60 at 3-4S
S4
Output Plugs
5 x XT-30 at 2-6S
5 x XT-60 at 3-6S
Note: When balance charging, all voltages (cell counts) must be the same across batteries. Always practice safe charging practices. Never leave batteries charging unattended.
ATTENTION:
1.DO NOT plug in a different type or a different number of cells battery at the same time.
2.DO NOT plug in different voltage level batteries at the same time.
3. Please make sure all of the battery is correctly connected before starting charge.
4.Please plug in the input wires before starting to plug in any batteries.
Package Includes:
1 x STP Parallel Balance Charging Board, S3 or S4
