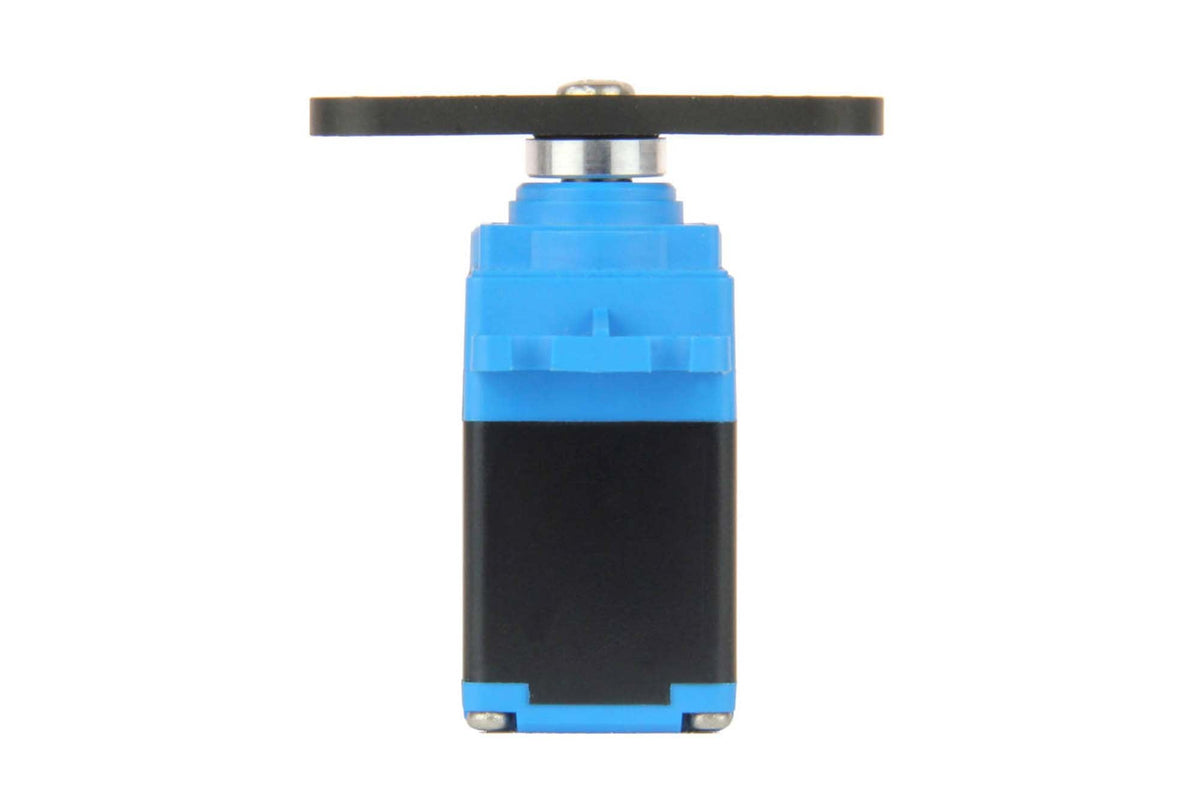

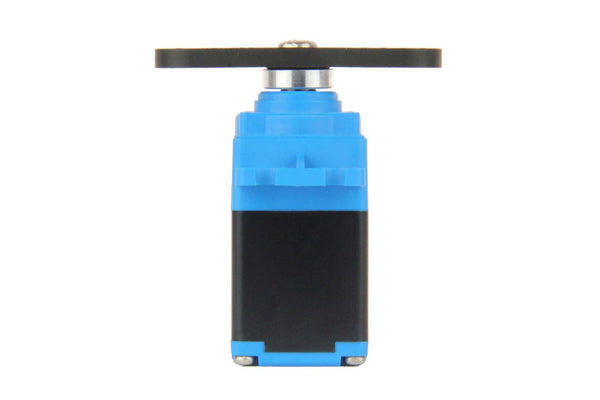

HitecHiTEC D956WP Metal Gear Servo

The HiTEC D956WP is based on the D954SW servo this IP-67 rated version is a true waterproof and dust resistant upgrade that’s just perfect for 1/10-scale rock crawlers, off-road trucks, boats and even seaplanes. As with Hitec’s entire ‘D’ series, this technologically-advanced servo is powered by a 32-bit MCU (Micro Control Unit) and 12-bit ADC (Analog to Digital Converter). Beautifully engineered with rapid, high resolution response the D954SW has unprecedented programmability and a wide voltage capability, allowing it to deliver leading-edge performance for all your radio control needs. It’s tough too. With incredibly durable steel gears, dual ball bearings and a hardened steel output shaft, the high-end performing D956WP offers mighty torque and the reliability to keep you flying, driving and sailing in the most hostile of environments.

Features:

• 32-bit MCU with 12-bit ADC circuitry
• 4096 resolution
• Programmable PWM digital amplifier
• Wide operating voltage (4.8 - 7.4 volts DC)
• Long life potentiometer (1M cycles)
• Dual ball raced output shaft
• Coreless metal brush motors
• Nylon reinforced plastic upper and lower case
• Diamond cut aluminium centre case heat-sink
• 25 tooth output spline
• Waterproof case
• End Point programming
• Direction programming
• Fail-safe programming
• Dead band programming
• Speed reduction programming
• Soft start programming
• Overload protection programming

Specification:

Performance Specification

• Operating Voltage Range (Volts DC) - 4.8V ~ 7.4V
• Speed (Second @ 60°) - 0.19 ~ 0.12
• Maximum Torque Range oz. / in. - 251 ~ 405
• Maximum Torque Range kg. / cm. - 18.0 ~ 29.0
• Current Draw at Idle - 30 mA
• No Load Operating Current Draw - 500 mA
• Stall Current Draw - 5,200 mA
• Dead Band Width - 1 µs

Physical Specification

• Dimensions (Inches) - 1.57 x 0.78 x 1.46
• Dimensions (Metric) - 40.0 x 20.0 x 37.0
• Weight (Ounces) - 2.40
• Weight (Gram) - 68.0
• Circuit Type - 32bit Programable Digital
• Motor Type - Coreless Metal Brush
• Gear Material - MK 1st Gear & 3 Steel Alloy Gears
• Bearing Type - Dual Ball Bearing
• Output Shaft (type / Ømm) - H25T
• Case Material - Plastic / Aluminum
• Dust / Water Resistance - IP67 Rating
• Connector Gauge (AWG) / Strand Count - 20 / 80

Package contains:

• 1x D956WP Waterproof, High Torque, Metal Gear Servo
