Hee WingHee Wing- Ranger T1 VTOL, PNP

£289.00 (inc. VAT)

£240.83 (ex. VAT)

Out of stock

Title: FixedWing Version

Product Specifications

Product Details

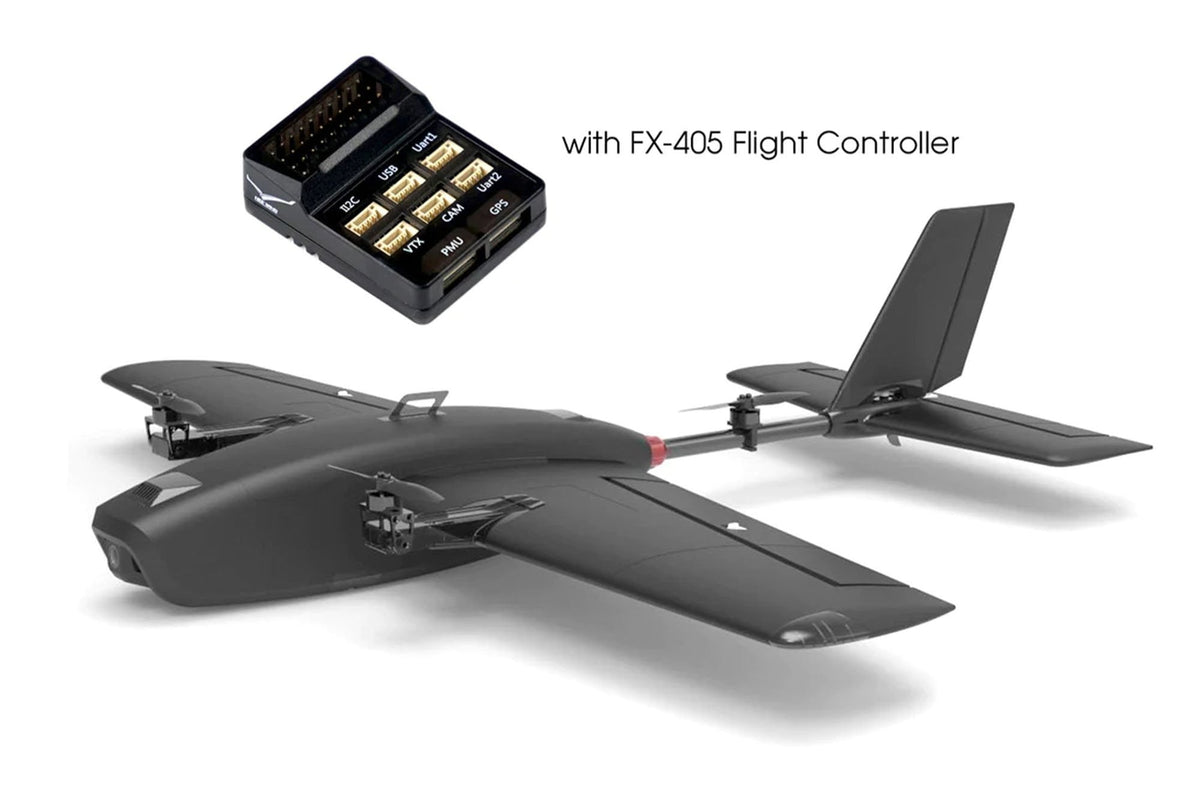

Hee Wing- Ranger T1 VTOL, PNP

Package Contains:

1x T1 Ranger VTOL-PNP
3x FX-1806 2000KV Motor (Preinstalled)
3x FX-25A ESC
3x 7g Digital Metal gear servo
2x Metal Gear Tilt Servo
3x 5126 propellers
1x Quick Release Wiring Plug for the Main Wings
*1x Flight controller if selected

*Not Included*

Radio - Minimum 5 channels
Recommended Battery : 4S 1300mAh - 5000mAh
Charger : supports up to 4S LiPo charging

Available in Two Options:

PNP without FX-405 Flight Controller- Comes with 5V 3A UBEC
PNP with FX-405 Flight Controller- Preinstalled & preconfigured VTOL FX-405 with 5V/5A PMU & 9V/3A UBEC

Features

Small, lightweight and portable at 730mm wingspan
Quick disassembly design.
VTOL - Vertical Take Off and Landing
Superb aerodynamic design. Stable at low speed
Large internal space to carry battery and electronics with high flexibility to achieve the best CG
Front and rear hatch for maximum flexibility organising your electronics
Dedicated front FPV camera mount
White foam is now the same high dense version as Gray foam
New revised air intake for better cooling
Easily detachable main wings reduce damage during a crash

Specification

Brand : Hee Wing RC
Model : T1 Ranger VTOL - PNP
Color : Gray only
Wingspan : 730mm
Length : 645mm
Height : 140mm
Weight :
Takeoff Weight : 600g to 750gram
Fuselage Size : 245m(L) x 51mm(W) x 48mm(H)
Minimum Speed : <20km/h
Maximum Speed : >120km/h
Maximum Range : > 25km
Maximum Cruise Time : > 65min
Package Dimension : 400mm x 230mm x 155mmm

Note

VTOL parameters preloaded are for reference only. Fly at your own risk. We are not responsible for any issue arise from this such as crashing. You may adjust the parameters accordingly.
Each of your main wings, tail and fuselage are individually box within the external shipping box for maximum protection during shipping
VTOL must be powered on 4S, not lower.
To ensure a great first experience with your T1 VTOL PNP, check out the notes on the instruction page before flight

Shipping- For International Shipping(anywhere outside of the UK), please contact us at info@3DXR.co.uk for asking for a quote and ensure you provide your full billing and shipping address. This is because our website may provide an incorrect shipping fee due to surcharges. (Note- We can only ship to certain locations).
