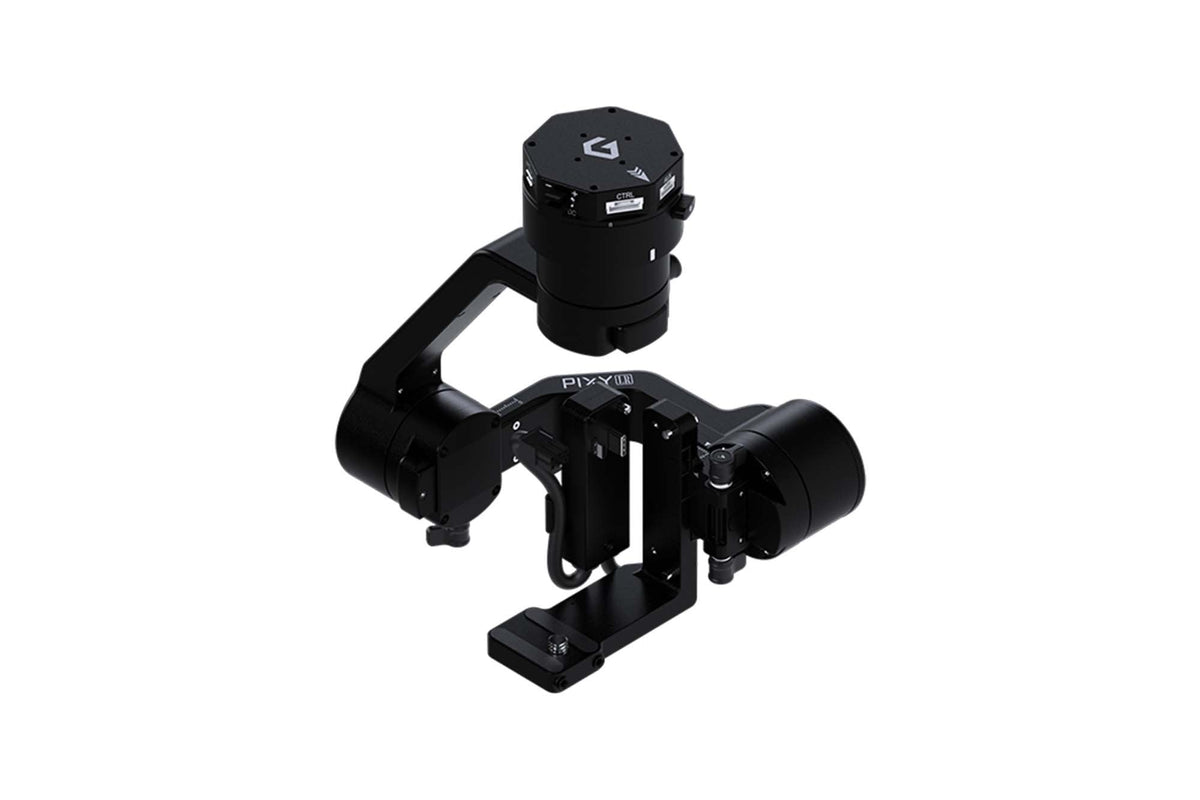

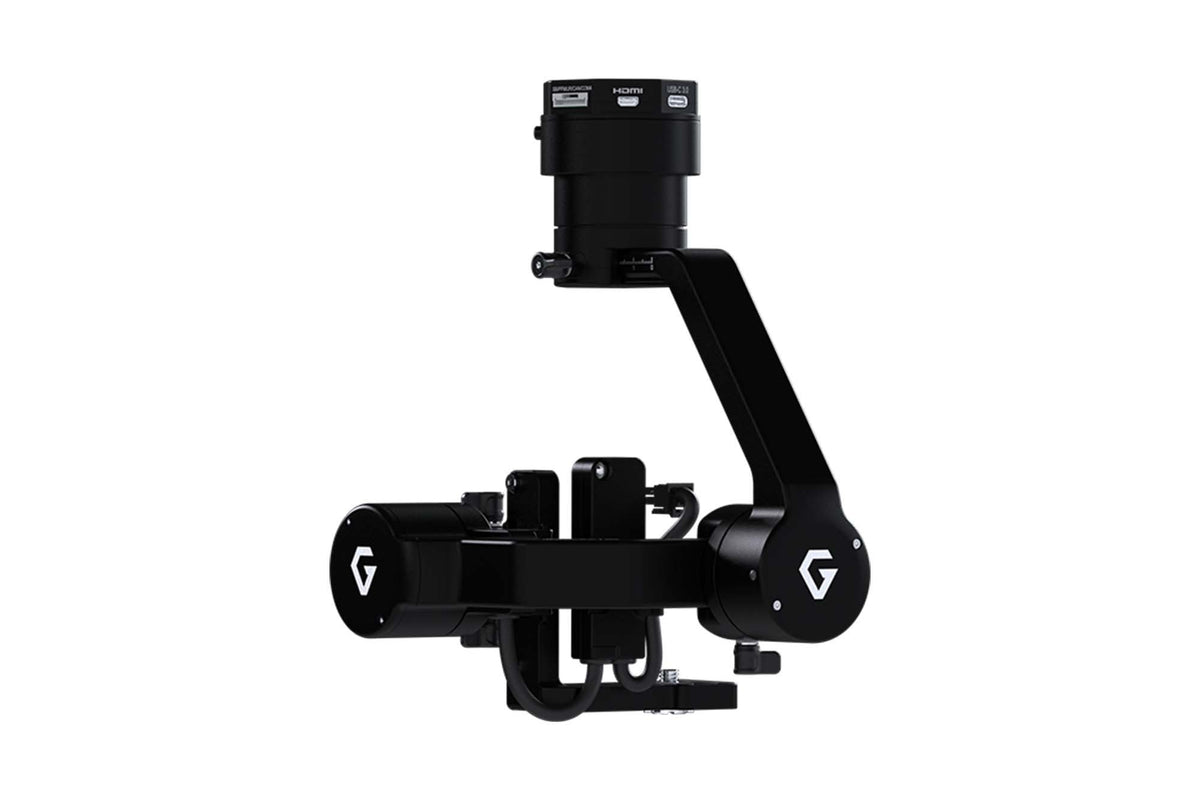

GremsyGREMSY - PIXY LR

Pixy LR is purpose-built for a Sony ILX-LR1 camera with only 495g, intended to provide professionals with a specialized payload solution for industrial applications that demand superior imaging quality and smooth aerial operations.

GENERAL

Built-In Functions:

1. Operation Modes

ON/OFF

Lock mode

Follow mode / Mapping mode

2. New generation IMU Sensor

3. Gremsy Specialized Gimbal Drive Motors with Encoders (Encoder 14 bits)

4. Sony USB-C 3.0 connection built-in

5. Gimbal Mavlink Protocol supported

PLATFORM SUPPORTED

Supported Camera:

Sony ILX-LR1

Supported Lens:

Lens 35mm - SEL35F28Z, SEL35F18F

Lens 16mm - SELP1635G (testing)

Lens 28mm - SEL28F20

Lens 55mm - SEL55F18Z

Lens 85mm - SEL85F18 (photography only)

Lens 24mm - SEL24F28G

Lens 50mm - SEL50F25G

Lens 40mm - SEL40F25G

Supported Drones/Flight Controllers:

Hardware plaform: Pixhawk, CubePilot, Skynode, M600, Airpeak

Autopilot platfrom: Ardupilot, PX4

MECHANICAL & ELECTRICAL CHARACTERISTICS

Working Current:

Static current: 7.5W

Dynamic current: 8.8W

Locked motor current: 80W

(*Operational Condition with G-drone and camera lens SEL85F18)

Operating Temperature:

32° F ~ 122° F (0° C ~ 50° C)

Gimbal Weight:

495g/1lbs

Gimbal Dimension (DxWxH):

140 x 115 x 200 (mm)

PERIPHERAL

Damping Type:

Pixy S/LR damping

Gimbal Mount:

Bottom

Quick Release:

Hyper Quick Release V3.0

AUX Signals:

4 signals

Input power:

17 - 52VDC

Connections:

Micro USB, USB-C (3.0), CAN, UART, SBus, Micro HDMI

WORKING PERFORMANCE

Angular Vibration Range:

±0.02°

Maximum Controlled Rotation Speed:

Pan axis: 180°/s

Tilt axis: 180°/s

Roll axis: 180°/s

Mechanical Endpoint Range:

Pan axis control: ±326°

Tilt axis control: +50° ~ -140°

Roll axis control: +50°～-274°

Controlled Rotation Range:

Pan axis control: ±320°

Tilt axis control: +40° ~ -120°

Roll axis control: ± 40°

CONTROL

Camera Data Transmission:

Sony Camera USB - USB-C 3.0

Gimbal Control:

UART (Com, USB), Can (LB2), SBus, PPM

SDK Supported Platform:

gSDK, Gremsy Payload SDK, MAVSDK

Package contains:

1x Gimbal Pixy LR

1x Hyper Quick Release 3.0

1x QR rubber cover

2x RC - CAN Cable

1x RC - SBUS Cable

1x RC - JR Cable

1x RC - Pixhawk COM4 Cable

1x CTRL - Pixhawk COM2 Cable

1x Power Supply Cable

1x Micro USB Cable

1x AUX - Quick Release Cable

1x AUX - Camera Connection Hub Cable

1x COM2 - Airpeak Control Cable

5x M3 x 8 Scew Iso 4762

5x M2.5 x 5 Scew Iso 4762

1x Camera Screw

1x Allen key 2.5 (mm)

1x Allen key 2 (mm)
