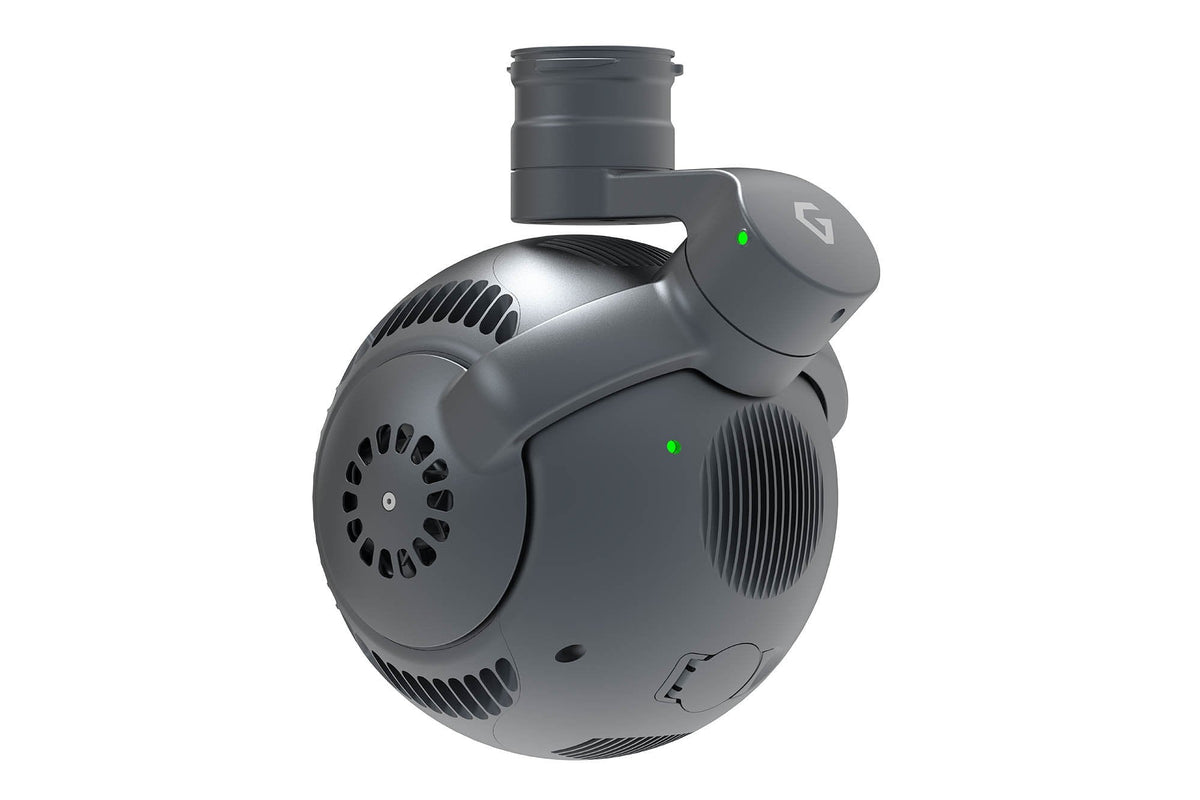

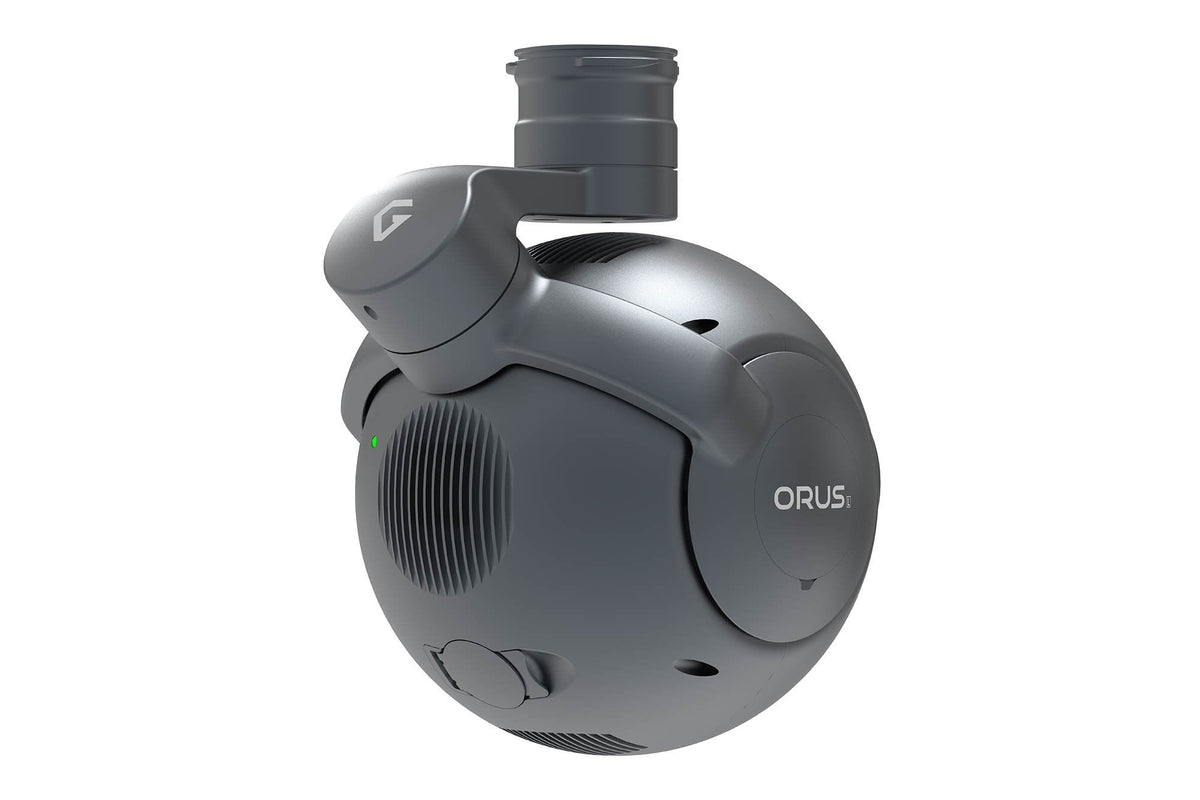

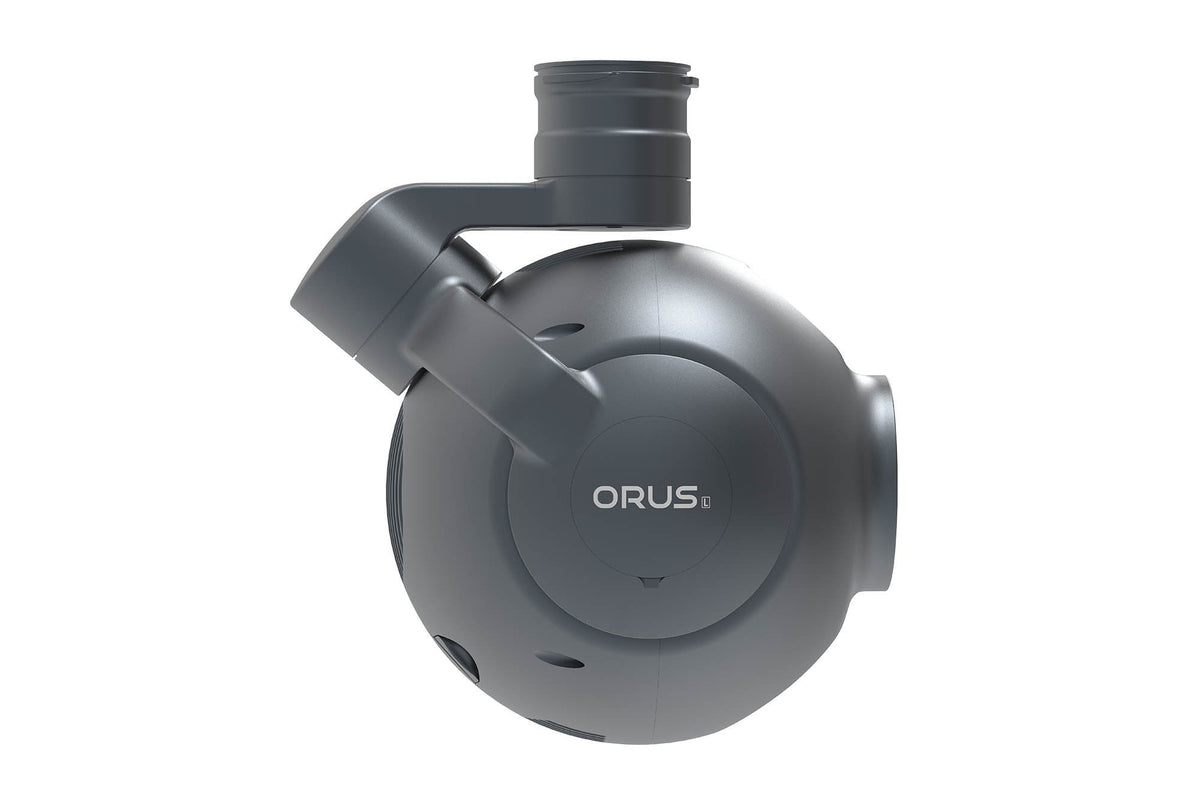

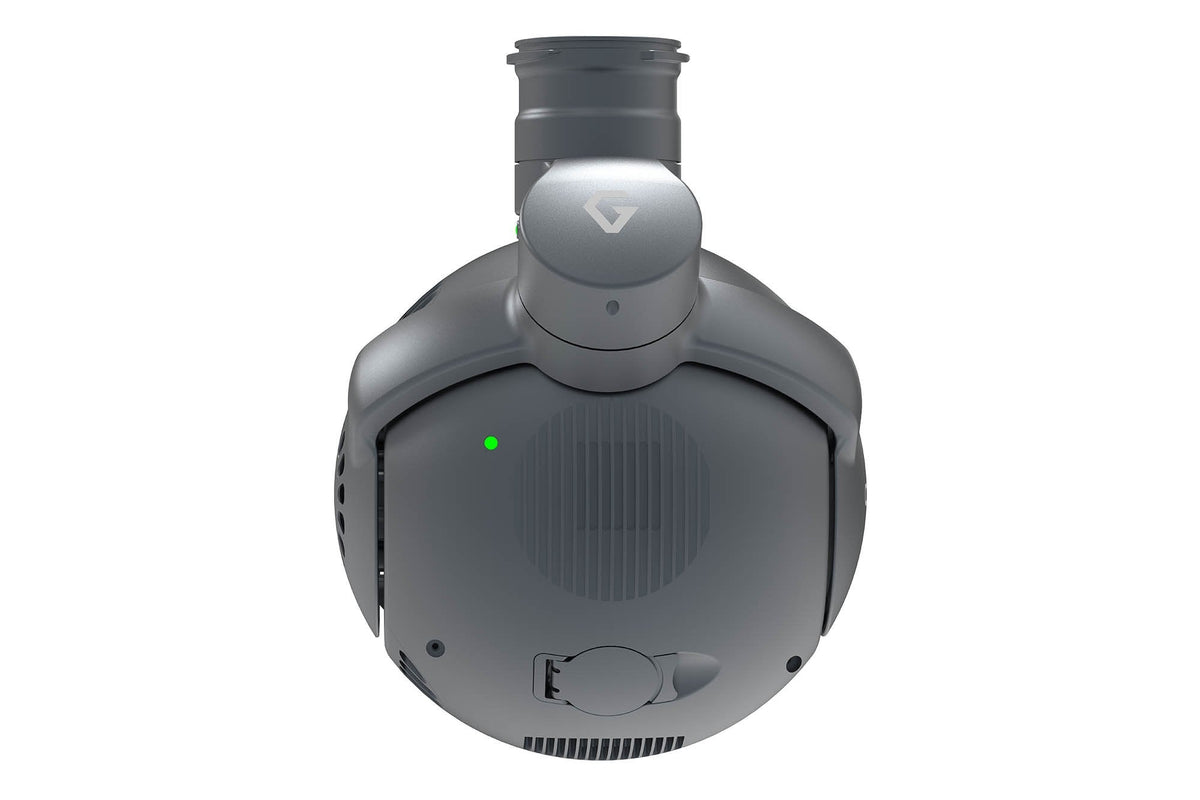

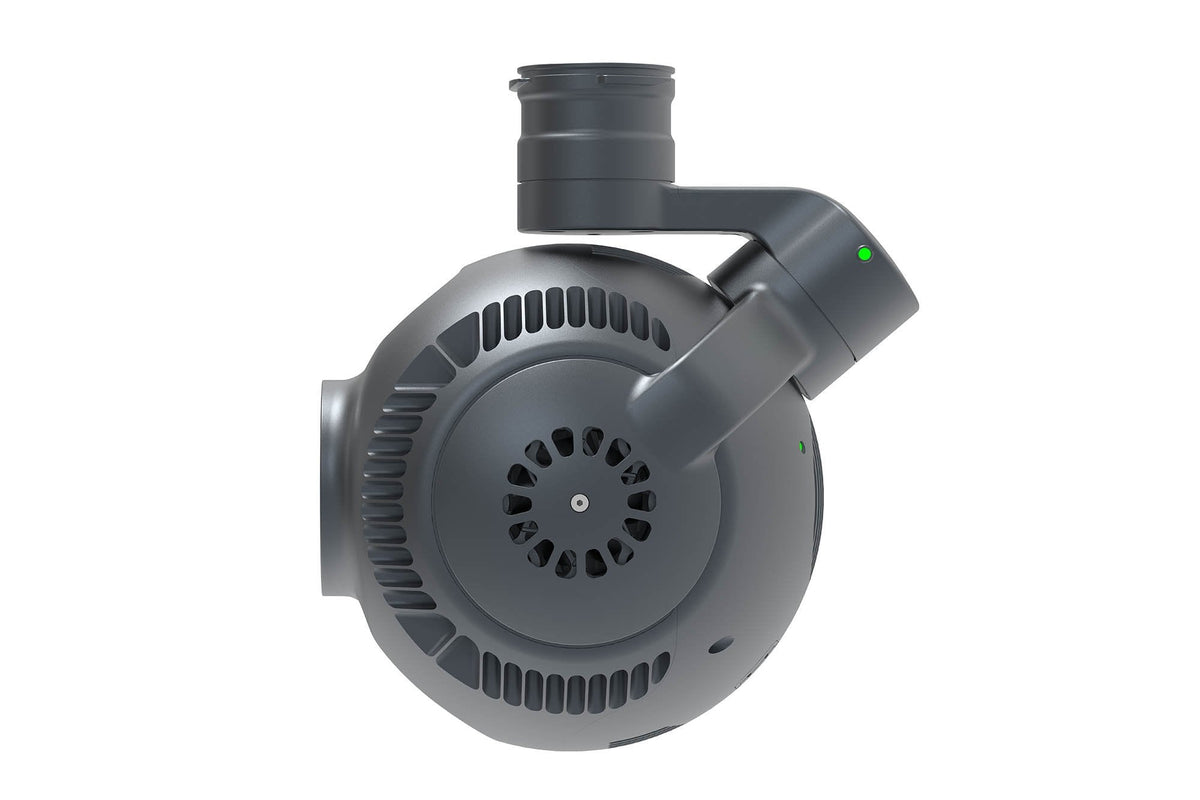

Orus-L is a specialized payload developed by Gremsy, designed with a spherical aerodynamic shape and rated IP55 for water and dust resistance. Built to endure harsh environments, including dust, humidity, and light rain, Orus-L remains stable even at speeds up to 100 km/h. It's an ideal choice for high-speed UAVs and demanding missions.
Specifications
General Information
|
Items |
ORUS-L |
|
|
Payload Weight (QR + Damping) |
~1504g ± 15g |
|
|
Payload Weight (QR only) |
~1388g ± 10g |
|
|
Dimensions (DxWxH) |
165 x 140 x 248 mm |
|
|
Quick Release System |
M-Port IP Version |
|
|
Damping Module |
Orus L Damping |
|
|
Protection Rating |
IP55 |
|
|
Max Flight Speed |
100 km/h |
|
|
Input Voltage |
19VDC ~ 52VDC |
|
|
Power Consumption |
Avg: 30W, Max: 100W |
|
|
Operating Current |
Static: 1A, Max: 3.3A @30V |
|
|
Operating Temperature |
-20°C to 50°C |
|
|
Storage Temperature |
-20°C to 60°C |
|
|
|
• HDMI 1080p60 Latency ~300ms • Ethernet: ◦ 480p60 |
|
|
|
Video Stream |
◦ 720p60 ◦ 1080p60 Video bit rate is adjustable Latency ~500ms* *Testing with Herelink v1.1 |
|
|
Payload Control Method |
• UART | Mavlink • Ethernet UDP • SBUS |
|
|
API/SDK |
Gremsy Payload SDK |
|
|
Internal Storage |
Yes 500GB |
|
|
Extenal Storage (via SD card) |
Not supported |
Platform Compatibility
• Supported Autopilots: Pixhawk, CubePilot, Skynode
• Firmware Compatibility: ArduPilot, PX4
• Controller Compatibility: Ground Station & Remote with:
• SDK Support: Gremsy Payload SDK (C++, MAVLink v2)
|
Feature |
Specification |
|
Effective Pixels |
Approx. 8.51M Pixel |
|
Lens |
f = 6.5 mm (wide) to 162.5 mm (tele), F1.6 ~ 4.8 |
|
HFOV |
59° to 2.8° |
|
Optical Zoom |
25x |
|
Digital Zoom |
12x |
|
Stable Zoom |
30x Enhanced Optical Zoom -Stable Zoom*2*3 *2Increases magnification by combining optical zoom and digital zoom. *3 For 1080p only |
|
Resolution |
4K@60fps / 1080@60fps / 720@60fps |
|
Shutter Speed |
1/1 to 1/10000s |
|
Exposure Modes |
-10.5 dB,to +10.5 dB, 15 steps |
|
Electronic Image Stabilization (EIS) |
Yes *3 · Super · Super+ *3 For 1080p, 1080i, and 720p only. |
|
Defog Mode |
Low / Mid / High |
|
White Balance |
Auto / Indoor / Outdoor |
|
Noise Reduction |
2D & 3D |
|
IR Cut Filter |
Auto / Manual |
|
Wide Dynamic Range |
Yes |
|
Visibility Enhancer |
Yes |
|
Night Vision |
Yes • Minimum Illumination (50%, High Sensitivity Mode ON)ICR-Off mode: 0.028 lx (Shutter Speed: 1/30 sec), 0.0039 lx (1/4 sec or 1/3 sec）
ICR-On mode: 0.00016 lx (Shutter Speed: 1/30 sec), 0.0000098 lx (1/4 sec or 1/3 sec, 30％） • Minimum Illumination (50%, High Sensitivity Mode OFF)ICR-Off mode: 0.17 lx (Shutter Speed: 1/30 sec), 0.024 lx (1/4 sec or 1/3 sec）
ICR-On mode: 0.0013 lx (Shutter Speed: 1/30 sec) • Recommended Illumination100 lx 〜100,000 lx |
|
Flicker Reduction |
Yes |
IR Camera Specifications
|
Feature |
ORUS-L |
|
Sensor Type |
Uncooled VOx Microbolometer |
|
Array Format |
640 x 512 |
|
Frame Rate |
30Hz |
|
Pixel Size |
12 µm |
|
Thermal Range |
-20°C to 550°C |
|
Lens |
Fixed, Athermal, 19 mm |
|
Digital Zoom |
1x to 8x |
|
Photo Resolution |
640 x 512 |
|
Video Output |
640 x 512 @ 30Hz |
|
Formats |
JPEG / MP4 |
|
Thermal Sensitivity (NETD) |
≤50 mK |
|
Radiometry |
Yes, overlay on runtime video |
Orus-L is a specialized payload developed by Gremsy, designed with a spherical aerodynamic shape and rated IP55 for water and dust resistance. Built to endure harsh environments, including dust, humidity, and light rain, Orus-L remains stable even at speeds up to 100 km/h. It's an ideal choice for high-speed UAVs and demanding missions.
Specifications
General Information
|
Items |
ORUS-L |
|
|
Payload Weight (QR + Damping) |
~1504g ± 15g |
|
|
Payload Weight (QR only) |
~1388g ± 10g |
|
|
Dimensions (DxWxH) |
165 x 140 x 248 mm |
|
|
Quick Release System |
M-Port IP Version |
|
|
Damping Module |
Orus L Damping |
|
|
Protection Rating |
IP55 |
|
|
Max Flight Speed |
100 km/h |
|
|
Input Voltage |
19VDC ~ 52VDC |
|
|
Power Consumption |
Avg: 30W, Max: 100W |
|
|
Operating Current |
Static: 1A, Max: 3.3A @30V |
|
|
Operating Temperature |
-20°C to 50°C |
|
|
Storage Temperature |
-20°C to 60°C |
|
|
|
• HDMI 1080p60 Latency ~300ms • Ethernet: ◦ 480p60 |
|
|
|
Video Stream |
◦ 720p60 ◦ 1080p60 Video bit rate is adjustable Latency ~500ms* *Testing with Herelink v1.1 |
|
|
Payload Control Method |
• UART | Mavlink • Ethernet UDP • SBUS |
|
|
API/SDK |
Gremsy Payload SDK |
|
|
Internal Storage |
Yes 500GB |
|
|
Extenal Storage (via SD card) |
Not supported |
Platform Compatibility
• Supported Autopilots: Pixhawk, CubePilot, Skynode
• Firmware Compatibility: ArduPilot, PX4
• Controller Compatibility: Ground Station & Remote with:
• SDK Support: Gremsy Payload SDK (C++, MAVLink v2)
|
Feature |
Specification |
|
Effective Pixels |
Approx. 8.51M Pixel |
|
Lens |
f = 6.5 mm (wide) to 162.5 mm (tele), F1.6 ~ 4.8 |
|
HFOV |
59° to 2.8° |
|
Optical Zoom |
25x |
|
Digital Zoom |
12x |
|
Stable Zoom |
30x Enhanced Optical Zoom -Stable Zoom*2*3 *2Increases magnification by combining optical zoom and digital zoom. *3 For 1080p only |
|
Resolution |
4K@60fps / 1080@60fps / 720@60fps |
|
Shutter Speed |
1/1 to 1/10000s |
|
Exposure Modes |
-10.5 dB,to +10.5 dB, 15 steps |
|
Electronic Image Stabilization (EIS) |
Yes *3 · Super · Super+ *3 For 1080p, 1080i, and 720p only. |
|
Defog Mode |
Low / Mid / High |
|
White Balance |
Auto / Indoor / Outdoor |
|
Noise Reduction |
2D & 3D |
|
IR Cut Filter |
Auto / Manual |
|
Wide Dynamic Range |
Yes |
|
Visibility Enhancer |
Yes |
|
Night Vision |
Yes • Minimum Illumination (50%, High Sensitivity Mode ON)ICR-Off mode: 0.028 lx (Shutter Speed: 1/30 sec), 0.0039 lx (1/4 sec or 1/3 sec）
ICR-On mode: 0.00016 lx (Shutter Speed: 1/30 sec), 0.0000098 lx (1/4 sec or 1/3 sec, 30％） • Minimum Illumination (50%, High Sensitivity Mode OFF)ICR-Off mode: 0.17 lx (Shutter Speed: 1/30 sec), 0.024 lx (1/4 sec or 1/3 sec）
ICR-On mode: 0.0013 lx (Shutter Speed: 1/30 sec) • Recommended Illumination100 lx 〜100,000 lx |
|
Flicker Reduction |
Yes |
IR Camera Specifications
|
Feature |
ORUS-L |
|
Sensor Type |
Uncooled VOx Microbolometer |
|
Array Format |
640 x 512 |
|
Frame Rate |
30Hz |
|
Pixel Size |
12 µm |
|
Thermal Range |
-20°C to 550°C |
|
Lens |
Fixed, Athermal, 19 mm |
|
Digital Zoom |
1x to 8x |
|
Photo Resolution |
640 x 512 |
|
Video Output |
640 x 512 @ 30Hz |
|
Formats |
JPEG / MP4 |
|
Thermal Sensitivity (NETD) |
≤50 mK |
|
Radiometry |
Yes, overlay on runtime video |
