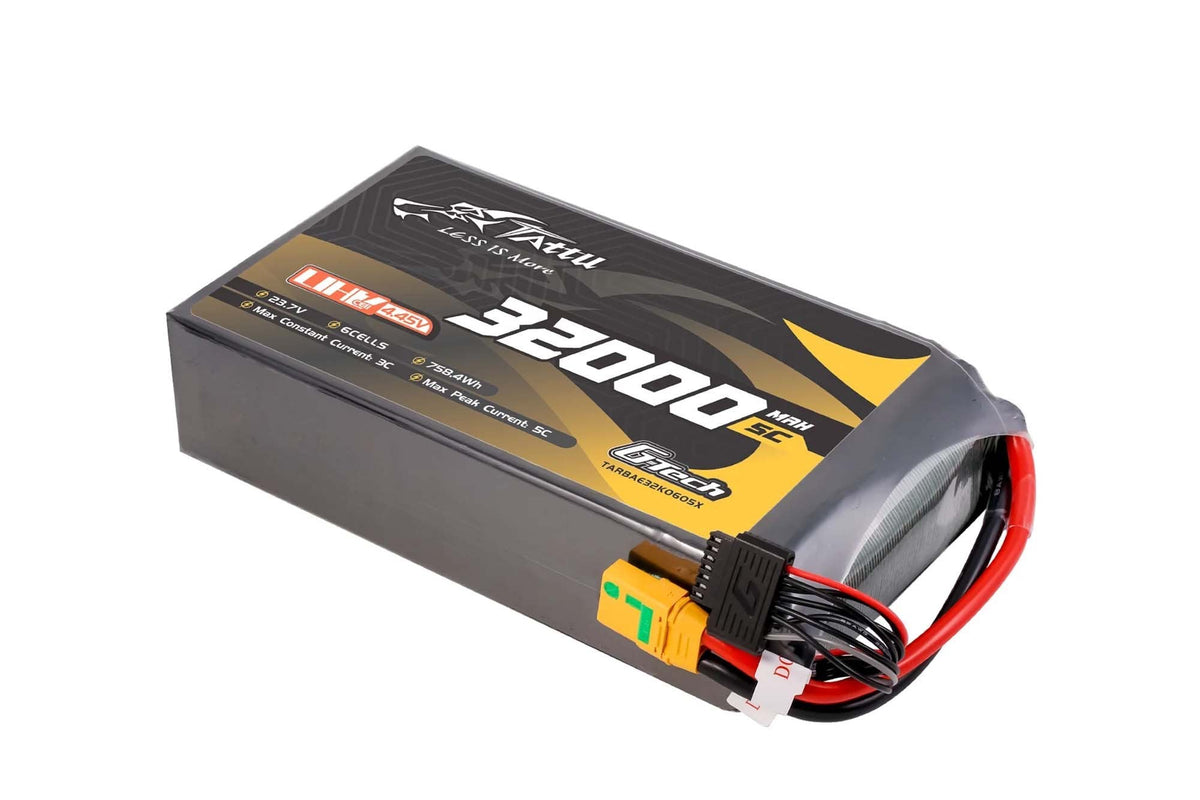

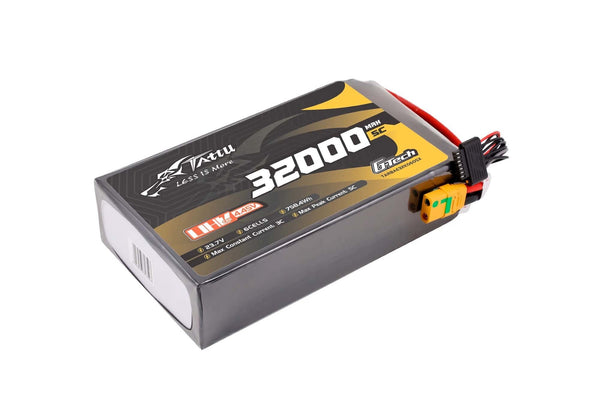

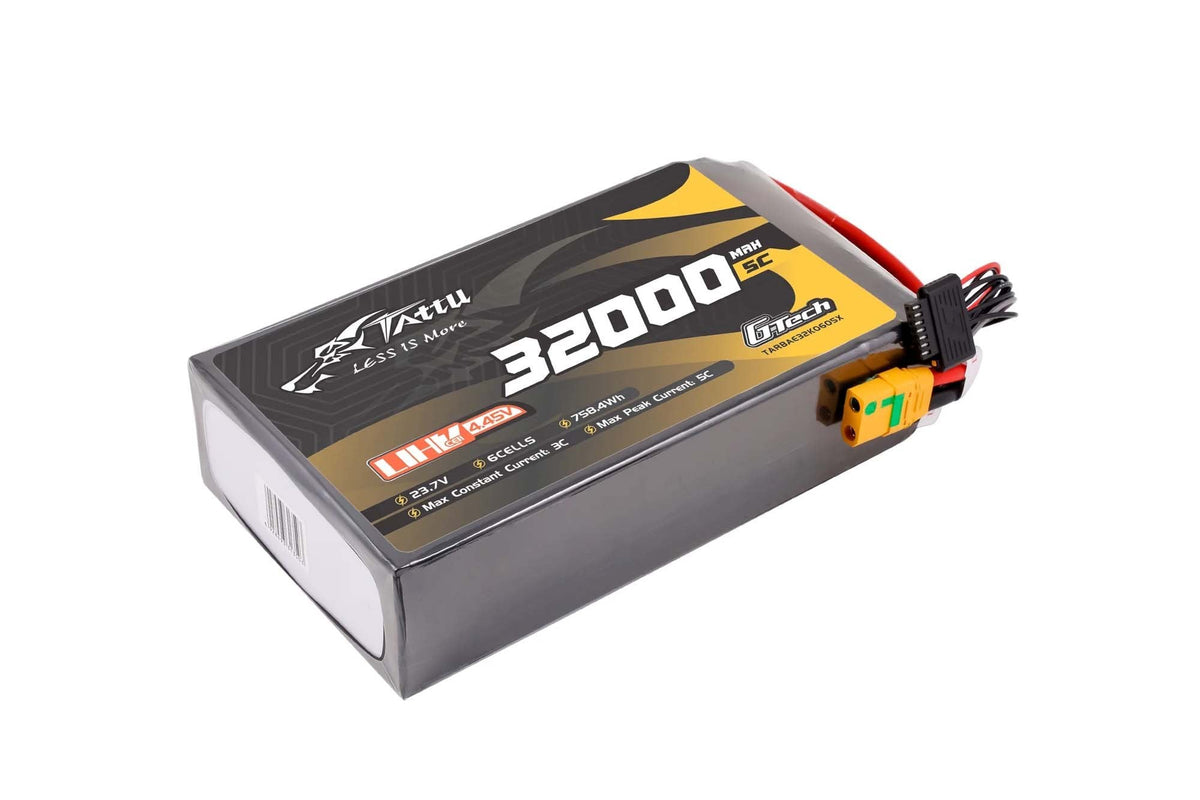

Name: Tattu Ultra HV 32000mAh 5C 23.7V 6S1P G-Tech Lipo Battery with XT90S-F
Brand: GensAce
SKU: TA-G-Tech-5C-32000-6S1P-23.7V-XT90S-F
Price: 629.76 GBP
Availability: OutOfStock

Tattu Ultra HV 32000mAh 5C 23.7V 6S1P G-Tech Lipo Battery with XT90S-F

Out of Stock

Product Specifications

Product Details

Tattu Ultra High Voltage Battery is an advanced ultra-high-voltage LiPo battery featuring high energy density. With a full charge voltage of 4.45V per cell, it utilizes advanced graphite anode technology to deliver exceptional performance. This battery is perfect for applications that require both high capacity and power output, such as industrial drones used in surveying, delivery, and inspection etc.

Features:

High Energy Density: 280Wh/kg
High Voltage: 4.45V/cell
Safety Performance: Voltage range of 4.45V to 3.0V per cell when the State of Charge (SOC) is from 100% to 0%.
Cycle Life of Pack: 500+ cycles, with 80% of the initial capacity retained after those cycles.
G-Tech Functionality: The battery supports the G-Tech function with the Tattu TA1000 1000W charger. It includes automatic current allocation, enhancing charging efficiency and battery management.

Specification:

Capacity: 32000mAh
Voltage: 23.7V/6S
Max Constant Current: 60A
Max Peak Current: 100A (≤3S)
NET Weight(±20g): 2900g
Size: 215x120x51mm
Discharge Connector Type: XT90-S
Balancer Connector Type: G-Tech-7P
Discharge Wire: 8# 150mm
Charge Wire: 22# 75mm

*Recommended charger - TA1000/TA3200UHV - Can be purchased separately*

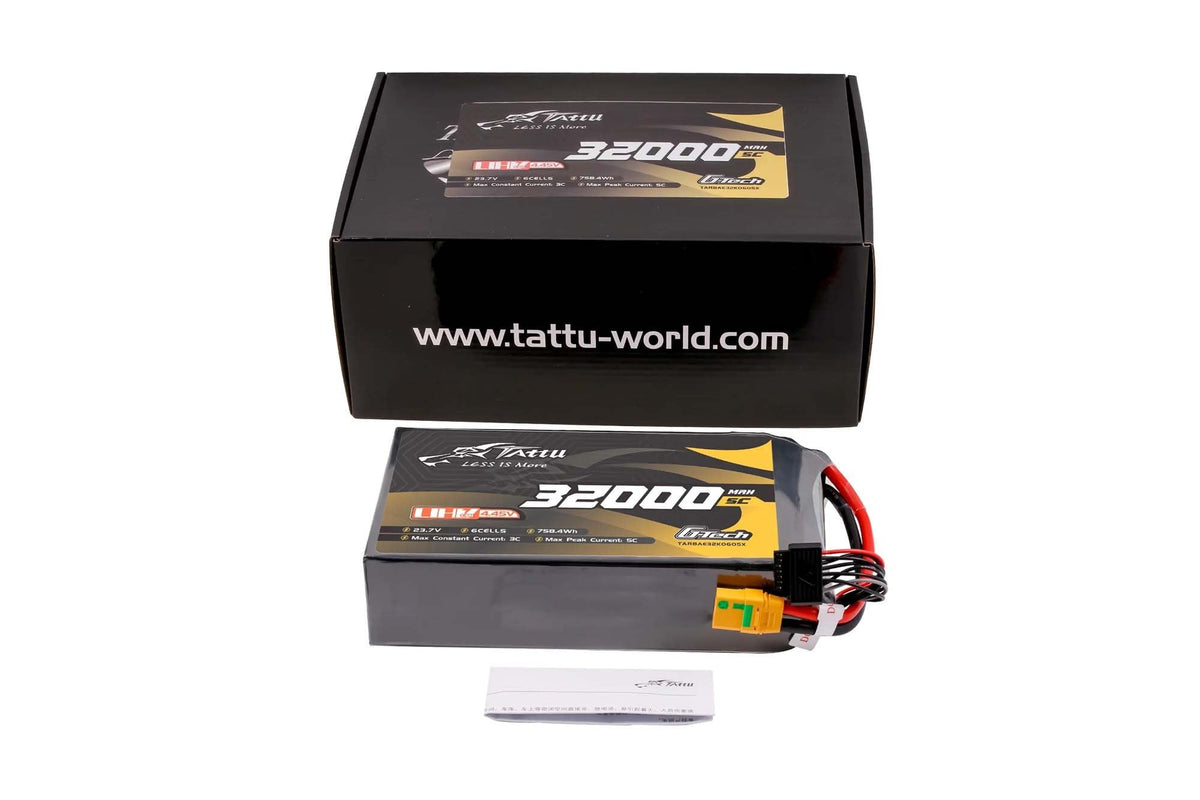

Package contains:

1x Tattu Semi-solid State 32000mAh 5C 23.7V 6S1P G-Tech Lipo Battery with XT90S-F

Product Details

Tattu Ultra High Voltage Battery is an advanced ultra-high-voltage LiPo battery featuring high energy density. With a full charge voltage of 4.45V per cell, it utilizes advanced graphite anode technology to deliver exceptional performance. This battery is perfect for applications that require both high capacity and power output, such as industrial drones used in surveying, delivery, and inspection etc.

Features:

High Energy Density: 280Wh/kg
High Voltage: 4.45V/cell
Safety Performance: Voltage range of 4.45V to 3.0V per cell when the State of Charge (SOC) is from 100% to 0%.
Cycle Life of Pack: 500+ cycles, with 80% of the initial capacity retained after those cycles.
G-Tech Functionality: The battery supports the G-Tech function with the Tattu TA1000 1000W charger. It includes automatic current allocation, enhancing charging efficiency and battery management.

Specification:

Capacity: 32000mAh
Voltage: 23.7V/6S
Max Constant Current: 60A
Max Peak Current: 100A (≤3S)
NET Weight(±20g): 2900g
Size: 215x120x51mm
Discharge Connector Type: XT90-S
Balancer Connector Type: G-Tech-7P
Discharge Wire: 8# 150mm
Charge Wire: 22# 75mm

*Recommended charger - TA1000/TA3200UHV - Can be purchased separately*

Package contains:

1x Tattu Semi-solid State 32000mAh 5C 23.7V 6S1P G-Tech Lipo Battery with XT90S-F
