GensAceTattu Semi-solid State 22000mAh 5C 22.2V 6S1P G-Tech Lipo Battery with XT90S-F

The Tattu Semi-solid state 300Wh/kg 22000mAh 22.2V 5C 6S1P G-Tech Lipo Battery is a revolutionary semi-solid lithium battery, featuring high energy density and long service life.

Compared with traditional lithium batteries, Tattu Semi-solid State battery has a higher energy and lighter weight, can increase the battery endurance by 30% and cycle life more than of 500 (90% initial capacity). It is an ideal power solution for various industrial drones, including those used in mapping, inspection, surveying, delivery, and eVTOL applications.

These drones typically require a nominal discharge current of 1-3C, and this battery’s lightweight design, compact size, and extended flight time fully meet those demands.

Features:

1. Energy Density:

• 300Wh/kg – This is a high energy density, suitable for applications where weight and energy storage are critical.

2. Safety Performance:

• Voltage Range: From 4.2V to 2.75V when SOC is from 100% to 0%. This range suggests good safety management within the battery’s operating limits.

3. Discharge Rate:

• Max Constant Current: 3C
• Max Peak Current: 5C (for < 3 seconds)
• These rates indicate the battery’s ability to deliver power quickly and efficiently.

4. Cycle Life:

• Over 500 cycles – The battery maintains its performance over a significant number of charge-discharge cycles.

5. G-Tech Functionality:

• The battery supports the G-Tech function with the Tattu TA1000 1000W charger. It includes automatic current allocation, enhancing charging efficiency and battery management.

Technical Features:

• Ultra-High Nickel Technology: Likely contributes to higher energy density and overall battery performance.
• Silicon Carbon Anode: Enhances the battery’s capacity and cycling stability.
• Coated Diaphragm Technology: Improves safety and performance by enhancing the separator's strength and stability.
• Solid Electrolyte: Offers improved safety and performance, reducing the risk of leakage and enhancing the battery's life.

Specifications:

• Capacity: 22000mAh
• Voltage: 22.2V/6S
• Max Peak Current: 5C
• Net Weight: 1807g (±20g)
• Size: 193*76*58.5mm
• Discharge Connector Type: XT90-S
• Balancer Connector Type: G-Tech-7P

Charger:

Recommended use of the Tattu matching charger purchased separately:

• Tattu TA3200 Dual-channel Smart Charger for 6S-14S LiPo Battery
• Tattu TA1000 G-Tech Dual-channel Charger for 1S-7S Drone Battery

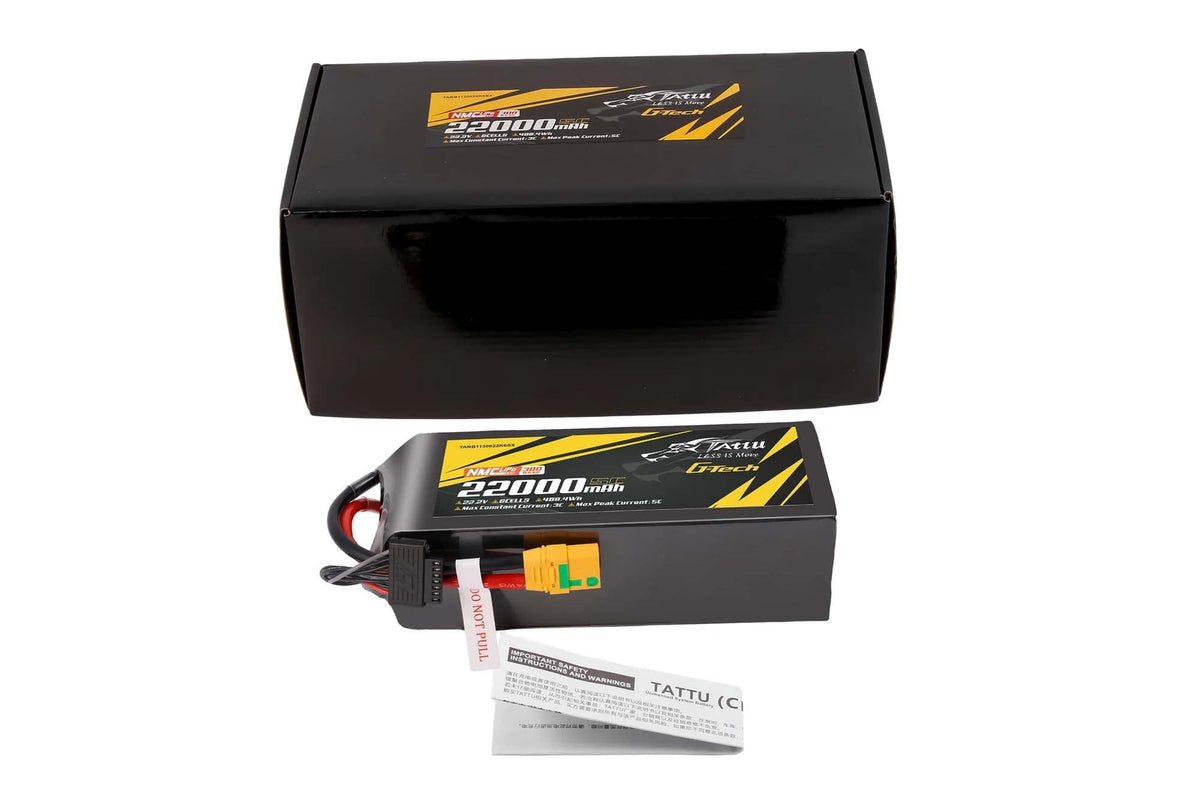

Package contains:

• 1x Tattu Semi-solid State 22000mAh 5C 22.2V 6S1P G-Tech Lipo Battery with XT90S-F

UK Shipments

Batteries are transported in accordance with ADR Regulations and are therefore exempt from free standard delivery. An additional shipping charge will apply.

International Shipments

Batteries shipped outside of the UK must comply with IATA Dangerous Goods Regulations and therefore are required to be purchased through a manual quote.

To verify if your country is eligible for Dangerous Goods (DG) shipping and to receive an accurate quote, please contact us with the following information:

• A list of the specific batteries required (with links to the products from this website).
• The exact quantity needed.
• Your full name, billing & shipping address, and contact number.
