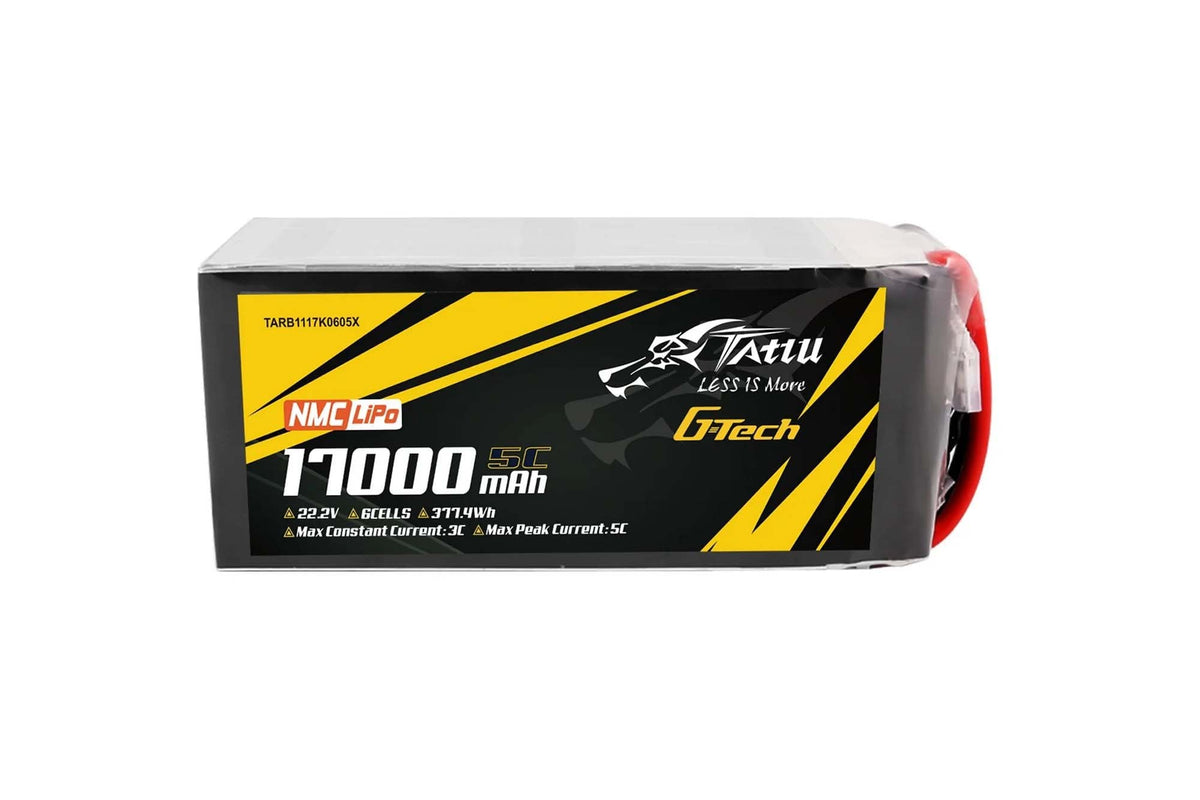

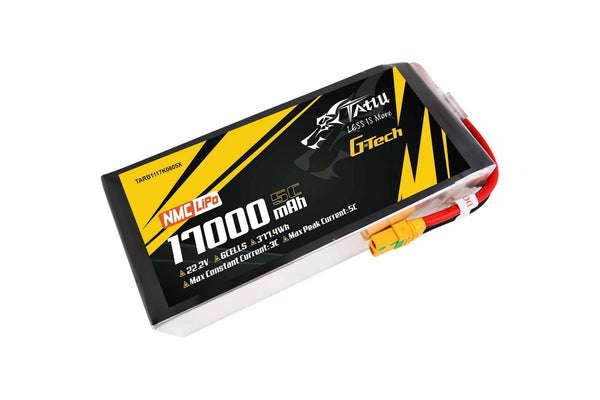

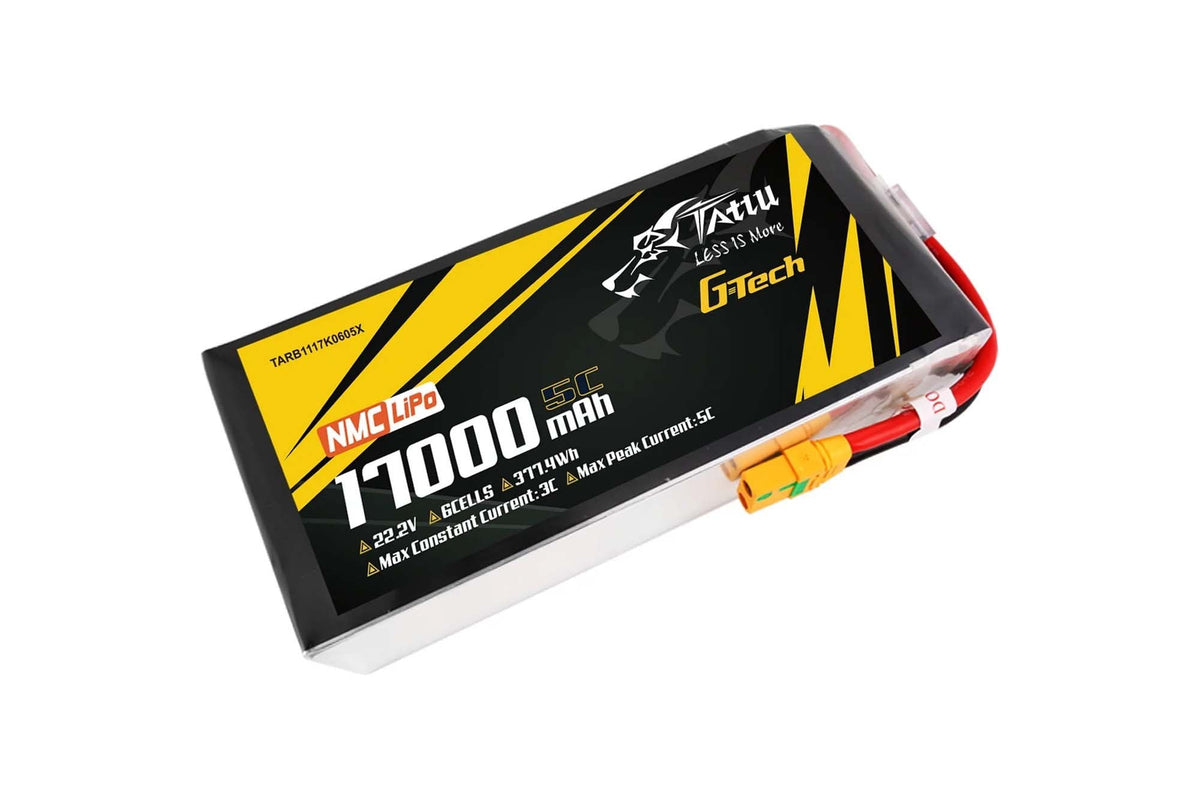

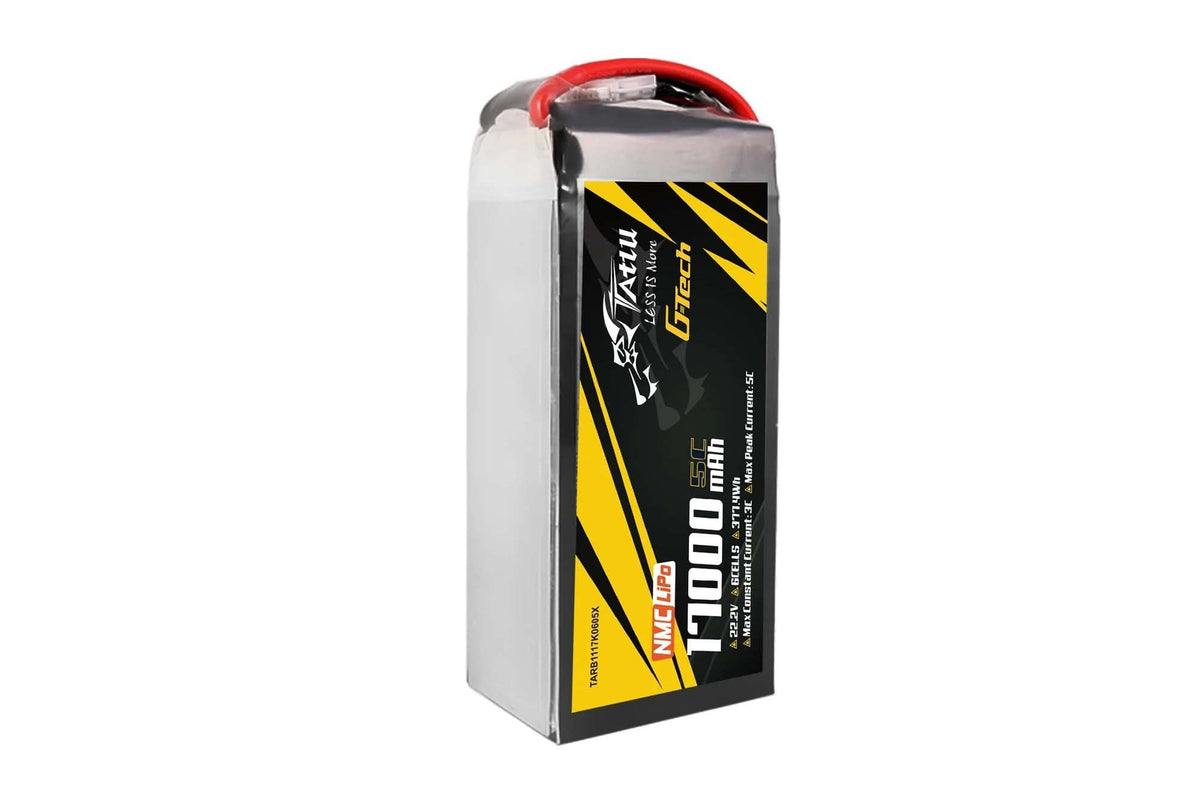

GensAceTattu Semi-solid State 17000mAh 5C 22.2V 6S1P G-Tech Lipo Battery with XT90S-F

Tattu Semi-solid State 17000mAh 5C 22.2V 6S1P G-Tech Lipo Battery is a new kind of Semi-solid lipo battery with high energy density and long service life. It is an ideal power solution for various industrial drones, including those used in mapping, inspection, surveying, delivery, and eVTOL applications. These drones typically require a nominal discharge current of 1-3C, and this battery’s lightweight design, compact size, and extended flight time fully meet those demands.

Technical Features:

• Ultra-High Nickel Technology: Likely contributes to higher energy density and overall battery performance.
• Silicon Carbon Anode: Enhances the battery’s capacity and cycling stability.
• Coated Diaphragm Technology: Improves safety and performance by enhancing the separator's strength and stability.
• Solid Electrolyte: Offers improved safety and performance, reducing the risk of leakage and enhancing the battery's life.

Specifications:

•  Capacity: 17000mAh
•  Voltage: 22.2V/6S
•  Max Constant Current: 3C
•  Max Peak Current: 5C
• NET Weight(±20g): 1770g
• Size: 186*71.5*55mm
•  Discharge Connector Type: XT90-S
•  Balancer Connector Type: G-Tech-7P
•  Discharge Wire: 8# 150mm
• Charge Wire: 22# 65mm

1. Energy Density:

•  271.12Wh/kg – This is a high energy density, suitable for applications where weight and energy storage are critical.

2. Safety Performance:

•  Voltage Range: From 4.2V to 2.75V when SOC is from 100% to 0%. This range suggests good safety management within the battery’s operating limits.

3. Discharge Rate:

•  Max Constant Current: 3C
• Max Peak Current: 5C (for < 3 seconds)
•  These rates indicate the battery’s ability to deliver power quickly and efficiently.

4. Cycle Life:

•  Over 500 cycles – The battery maintains its performance over a significant number of charge-discharge cycles.

5. G-Tech Functionality:

• The battery supports the G-Tech function with the Tattu 1000W charger. It includes automatic current allocation, enhancing charging efficiency and battery management.

Charger:

Recommended use of the Tattu matching charger purchased separately:

• Tattu TA1000 G-Tech Dual-Channel Charger 25A*2 1000W For 1S-7S Drone Battery
• Tattu TA3200 Dual-channel Smart Charger for 6S-14S LiPo Battery

Package contains:

• 1x Tattu Semi-solid State 17000mAh 5C 22.2V 6S1P G-Tech Lipo Battery with XT90S-F
