Name: FrSky TW R10
Brand: FrSky
SKU: FrSky-05-07-TW-R10
Price: 58.99 GBP
Availability: InStock

Product Specifications

Product Details

The FrSky TW R10 is a 10 channel, dual 2.4GHz frequency receiver with SBUS/FBUS/S.Port and 10 PWM output channels.

TWIN series receiver features a new stable TW protocol that benefits from simultaneously integrating dual active 2.4G frequency bands. The TW active-active protocol is different from the general active-standby redundancy solutions, with the TW protocol, dual 2.4G frequency bands are active on the TW series receiver at the same time. This receiver is equipped with 3×2.4G antennas and designed for RC users who want to benefit from resilience and long-range in their radio communications.

The configurable channel ports on TW R10 & TW SR10 receivers are a big feature, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. By setting the port to use FBUS protocol in the ETHOS system, the signal control and telemetry can be connected to any device (XACT servos, ADV Sensors, etc.) that supports FBUS protocol through only one line to achieve bidirectional transmission, also simplifying the model build using fewer wires.

Product Details

The FrSky TW R10 is a 10 channel, dual 2.4GHz frequency receiver with SBUS/FBUS/S.Port and 10 PWM output channels.

TWIN series receiver features a new stable TW protocol that benefits from simultaneously integrating dual active 2.4G frequency bands. The TW active-active protocol is different from the general active-standby redundancy solutions, with the TW protocol, dual 2.4G frequency bands are active on the TW series receiver at the same time. This receiver is equipped with 3×2.4G antennas and designed for RC users who want to benefit from resilience and long-range in their radio communications.

The configurable channel ports on TW R10 & TW SR10 receivers are a big feature, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. By setting the port to use FBUS protocol in the ETHOS system, the signal control and telemetry can be connected to any device (XACT servos, ADV Sensors, etc.) that supports FBUS protocol through only one line to achieve bidirectional transmission, also simplifying the model build using fewer wires.

Features:

Simultaneous Working Dual 2.4G TW Mode
Basic Black-Box Data Record Function
Long Control Range (Range varies based on the RF Power settings.)
10 Configurable Channel Ports
– CP1: PWM / SBUS OUT / FBUS / S.Port / SBUS IN
– CP2-10: PWM / SBUS OUT / FBUS / S.Port
FBUS / S.Port
SBUS Out Port (Supports 16CH / 24CH mode)
SBUS In Port (Supports Signal Redundancy)
Over-The-Air (OTA) FW update

Specification:

Frequency: Dual 2.4GHz

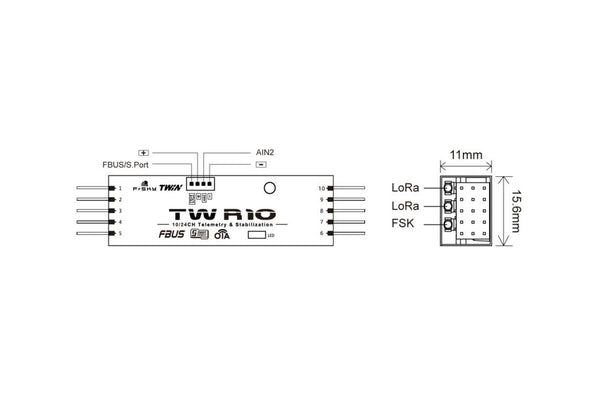

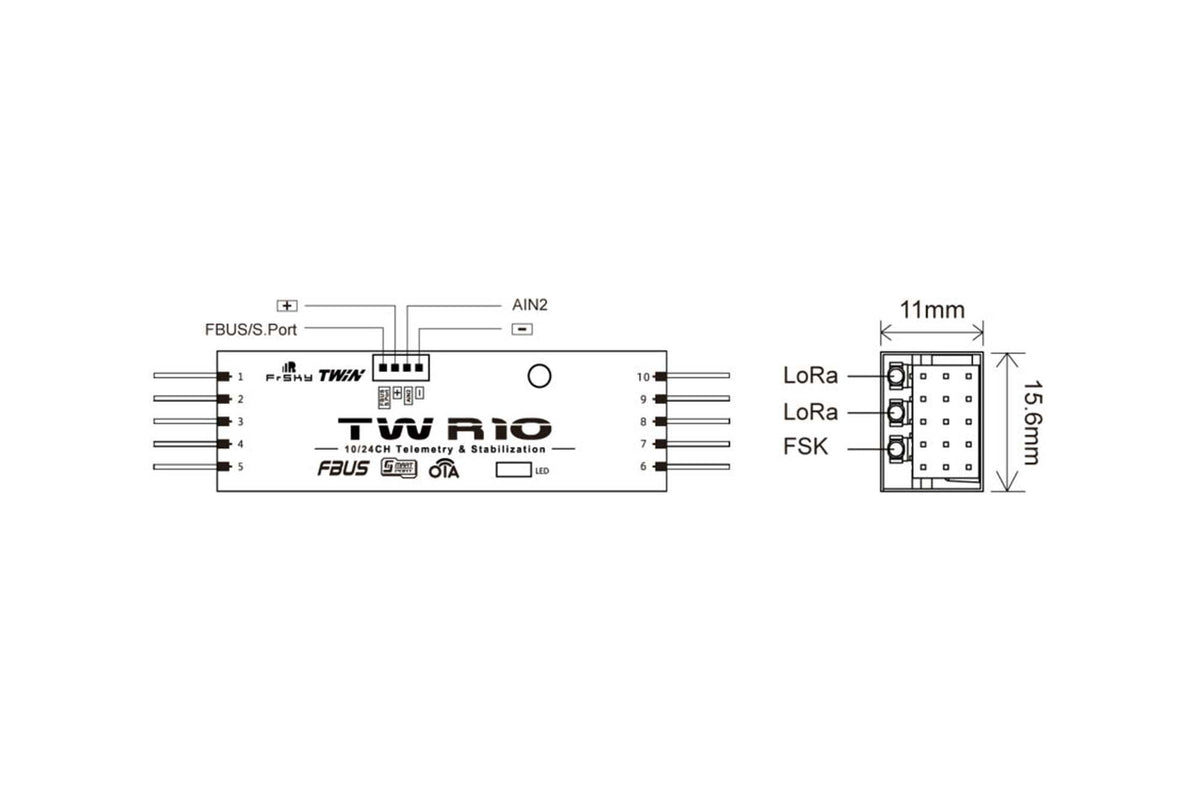

Dimension: 64.6×16.6×12.4mm (L*W*H)
Weight: 9.4g
Operating Voltage Range: 3.5 -12V (Recommend 2S Li-Batteries)
Operating Current: ≤120mA@5V
Voltage Measurement Range via AIN (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
Compatibility: TWIN series radio & TW protocol capable RF module
Triple 2.4GHz Antennas (with IPEX1 connectors)

Package contains:

1x FrSky TW R10 Receiver
