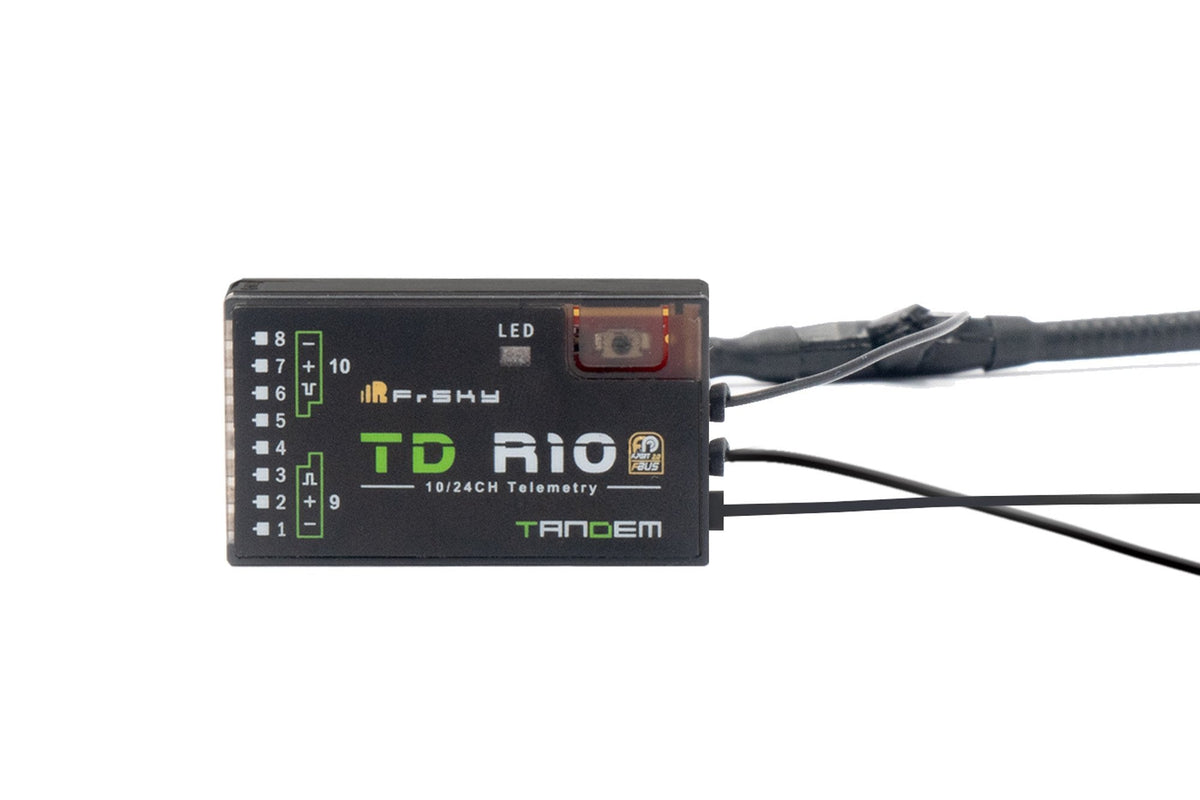

FrSkyFrSky TD R10

The Tandem dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously at both 900Mhz and 2.4Ghz frequencies. That means Tandem receivers provide not only the low latency signal and long-range control, also benefits from the enhanced level of high reliability and anti-interference performance.

The Tandem series receivers adopt the triple antenna design that provides multi-directional wide coverage for the remote signal. The data (Power & Signal related) under unusual status during the flight can be recorded by Tandem receivers through a built-in black box module.

The configurable 10 channel ports are a big feature of TD R10, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. With the FBUS protocol, the Tandem series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the builds setup.

!This receiver is only compatible with the Tandem series transmitters with dual-band transmitter module.!

Specification

Dimension: 46.5*26.3*14.7mm (L*W*H)

Weight: 16.6g

Operating Voltage: 3.5-10v DC

Operating Current: ≤180mA@5V

Compatibility: Tandem series transmitter & TD protocol capable RF module

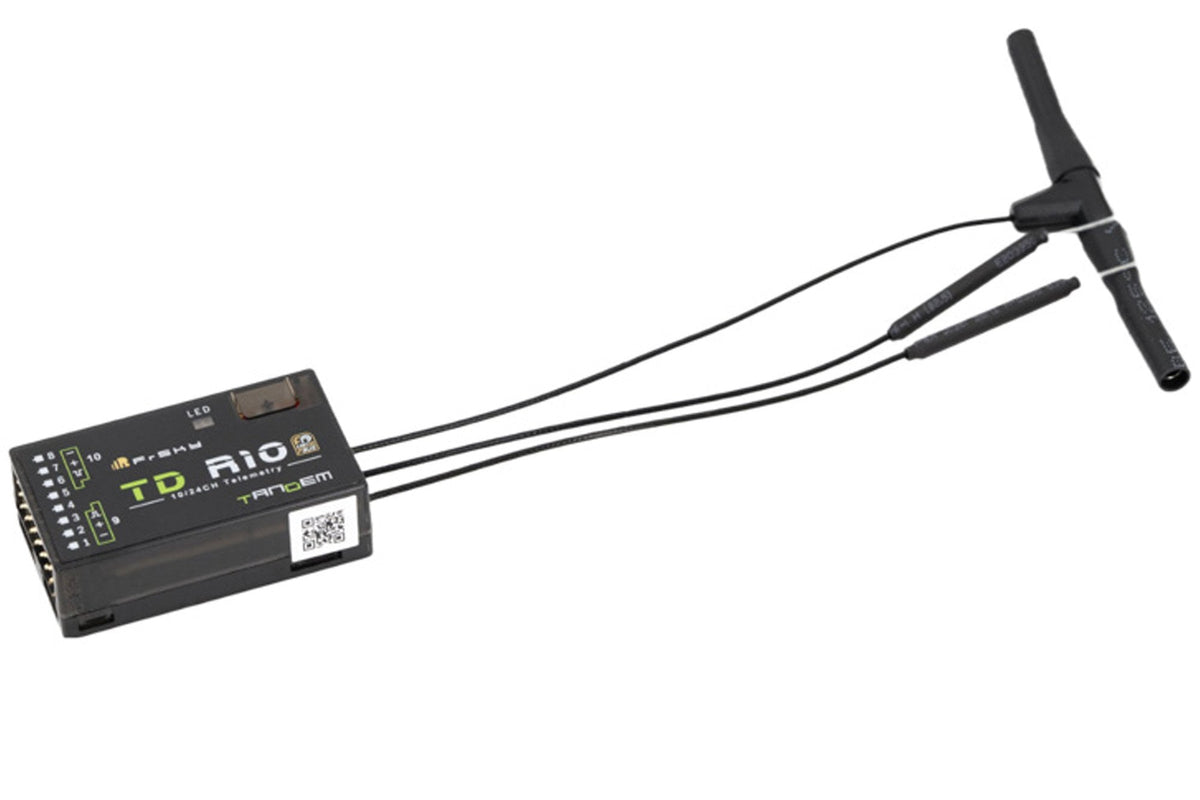

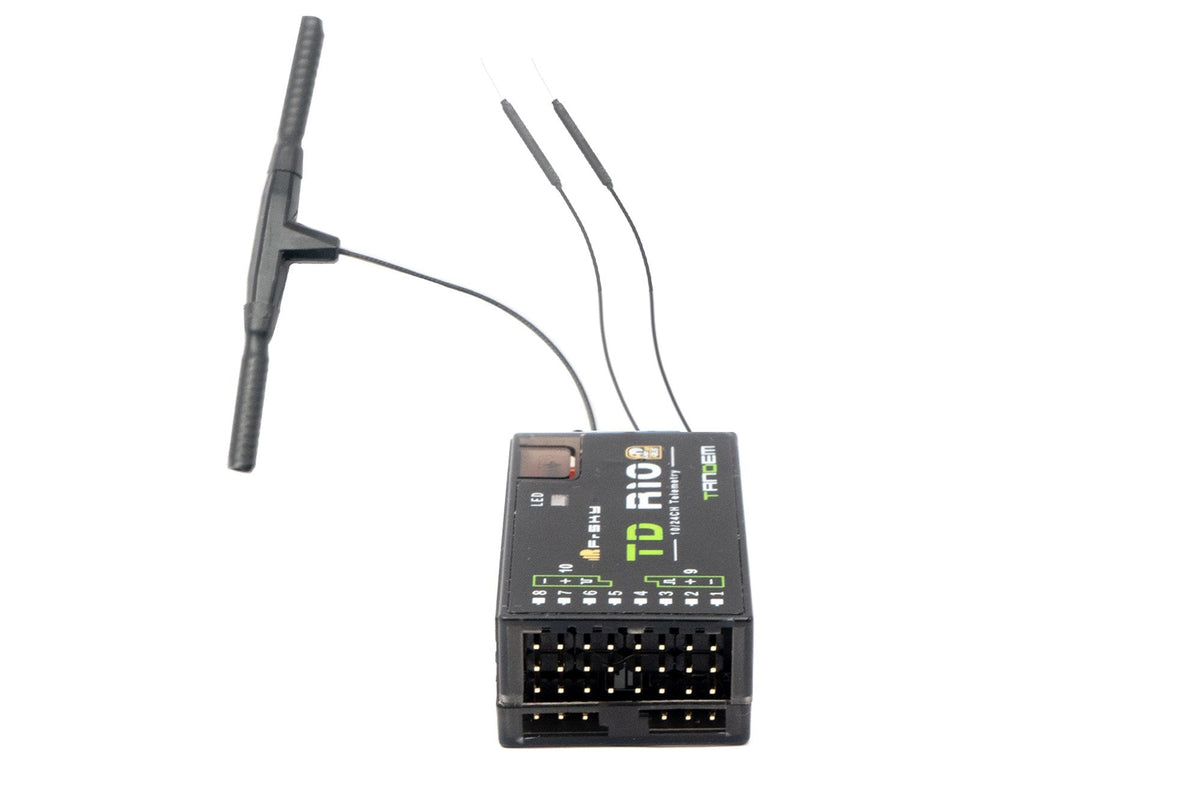

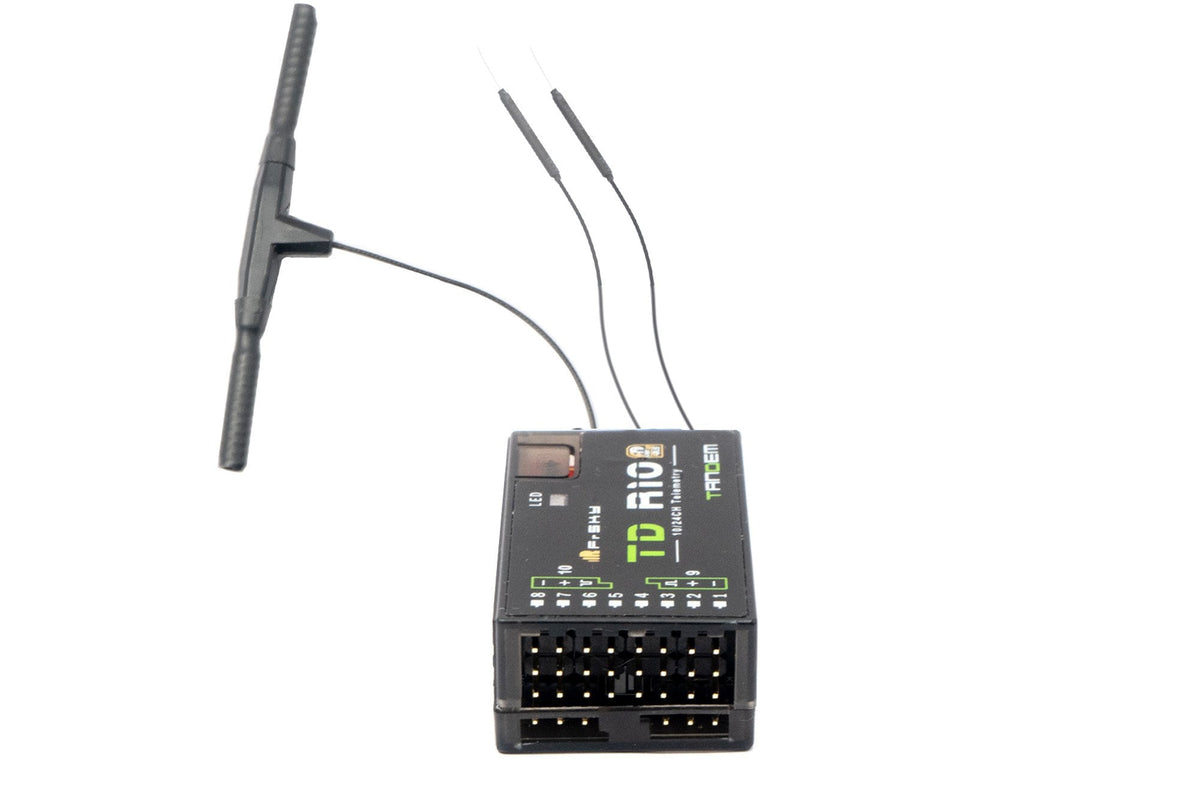

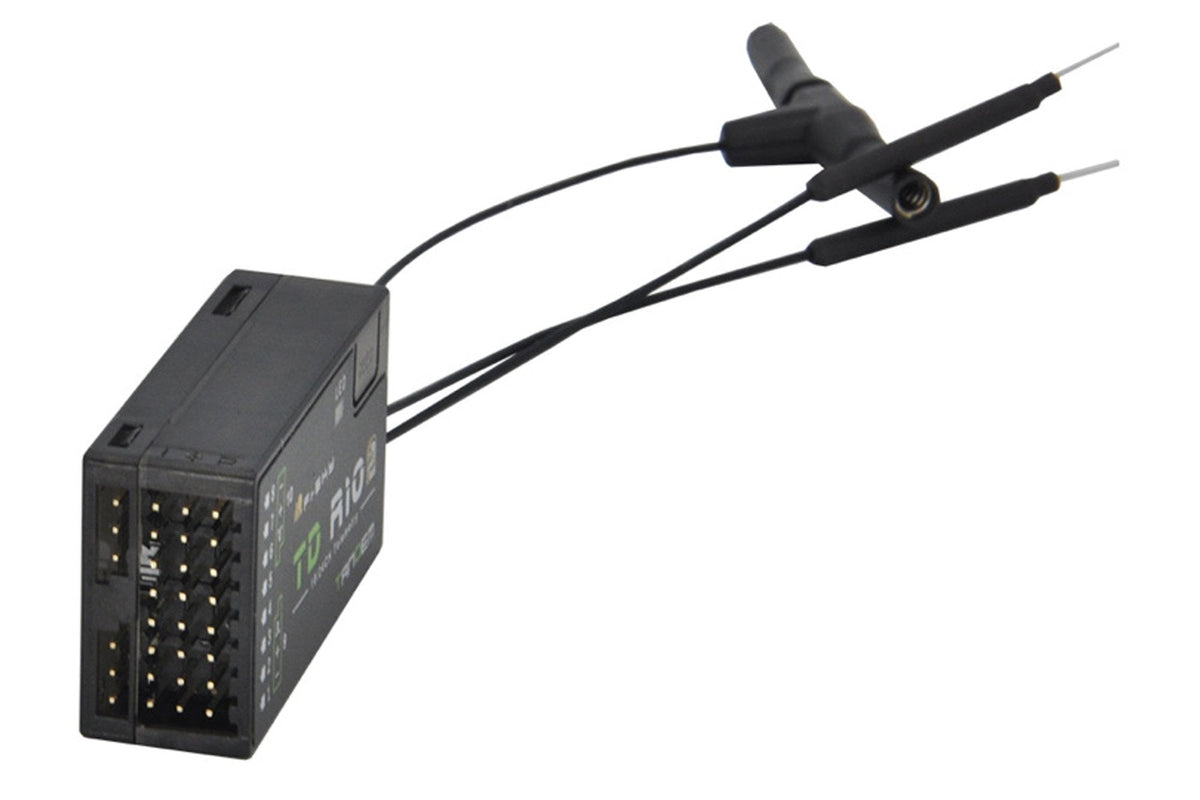

Triple 2.4G/900M Antenna

◦ 2* External 2.4G antenna (IPEX1)

◦ 1* External 900M antenna (IPEX1)

Features

Simultaneous working dual-band TD mode

Triple antenna design for multi-directional coverage

Black Box function

Built-in voltage sensor

Race Mode with Telemetry

Long control range (up to 50KM – 100KM)

Over-The-Air (OTA) FW update

10 Configurable Channel Ports

◦ CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In

◦ CP2-10: PWM / SBUS Out / FBUS / S.Port

Includes

1 x TD R10 Dual-Band Receiver
