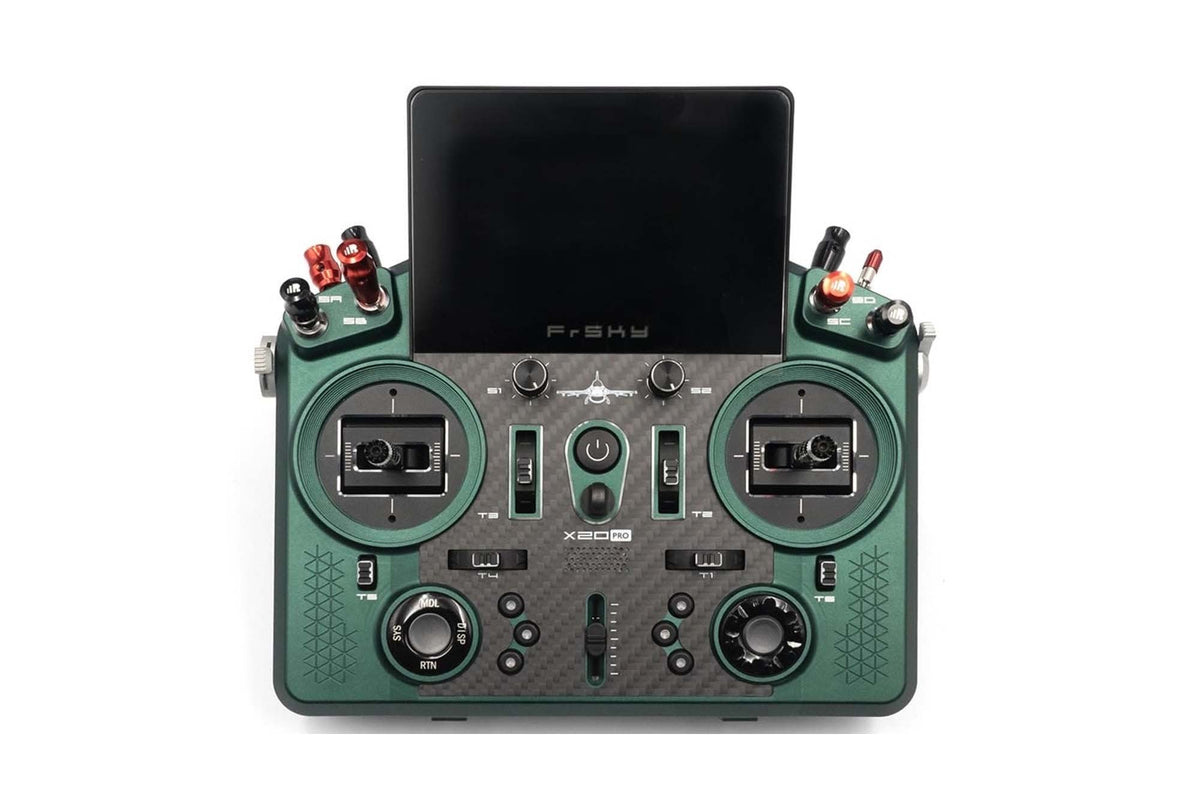

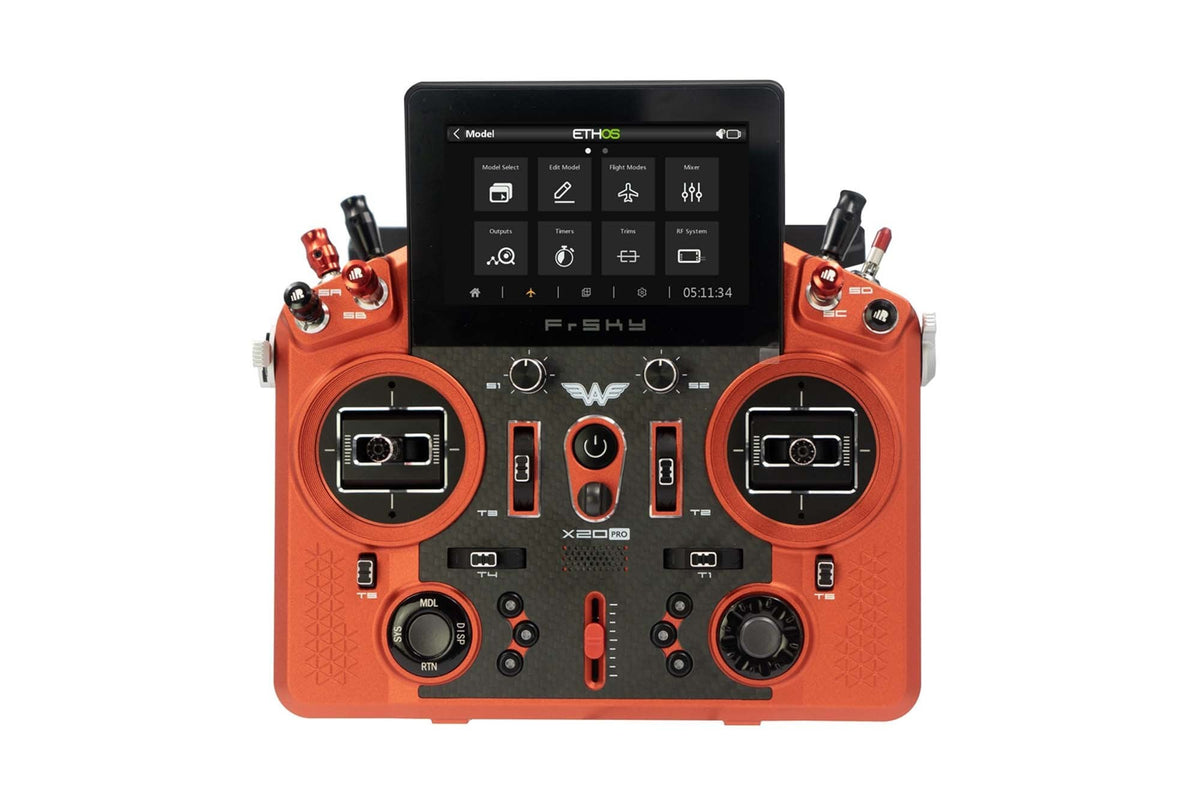

FrSkyFrSky- Tandem X20Pro AW EU LBT

The FrSky Tandem X20 Pro AW edition is FrSky's flagship model, optimised for RC model planes. The X20 Pro AW features a multi-position flap slider and angle adjustment slider as well as a 2 position self locking switch. The X20 Pro features a dual-band telemetry radio system that operates on both 868MHz and 2.4GHz. The X20 PRO AW adds dual 2.4G TW RF mode and supports simultaneous activation of both TW and ACCESS R9 modes. In this configuration, TW receiver and ACCESS R9 receiver can be connected via the SBUS IN/OUT ports to achieve redundant backup. This RF signal connection method allows for the simultaneous use of three different RF links in RC applications. This further enhances the RF signal’s reliability, particularly in scenarios involving long-distance RC operations.

Dual-side Haptic Gimbal Feedback
The gimbal vibration feedback function can be easily enabled or disabled by setting a switch. The dual-sided Gimbal’s vibration feedback can operate independently, allowing the configuration to match distinct feedback preferences tailored to various application scenarios for RC enthusiasts.
Easy Travel-adjustable MC20R Gimbals (with any desired degree between 45° to 60°)
Compared to the MC11 Gimbals, the AW MC20R Gimbals also has an 8° rotatable panel and can be adjusted to a 45° travel position as well. What’s even better is that the angle is not limited to just 45° and 60°, the AW MC20R Gimbal allows for adjustment of any travel position between 45° and 60°. To enhance convenience for pilots in outdoor applications, the adjustment of the angle travel position can be directly made using a screwdriver through the adjustment hole on the Gimbal Panel, eliminating the need to disassemble the radio casing.

Multi-position Flaps Slider (Left Lever) & Angle Adjustable Extended Slider (Right Lever)
Two different types of sliders are CNC-machined. The multi-position Flap Slider Lever on the left, when paired with ETHOS settings, assists pilots in determining the precise amount of flap deployment during different phases of flight. On the right, the Slider Lever emphasizes its installation flexibility, providing a broader range to meet varying pilot preferences for control comfort. More types of slider options like a Self-centering slider lever will be also provided for the specific application.

Self-Locking Switch & Metal Switch Caps
The AW version provides a 2-position self-locking switch, which can be used as a regular 2-position switch. However, its locking capability makes it particularly safe and reliable when used as a throttle or engine ignition switch. The remaining switches also come with anodized metal-colored switch caps (black & red), allowing pilots to match these caps of different lengths and colors based on the set functions for each switch.

Upgraded Robust Antenna Handle & External LoRa Antenna Connectors
The newly upgraded antenna handle incorporates the good capability of impact resistance facing the tough conditions of outdoor fields. The reinforced and thickened antenna casing is not only better suited for comfort gripping but also does not compromise the antenna’s performance. On the contrary, the redesigned antenna can transmit signal data more effectively, providing pilots with a more reliable flying control experience.
The AW Edition is also equipped with 2 external antenna connectors, which can be mounted with additional 2.4G and 900M antennas for enhancing the RF capabilities working under the LoRa modes, to achieve enhanced long-range control.

Features:

• Built-in TD-ISRM Pro Dual-Band Internal RF Module
• 900M LoRa/2.4G LoRa Dual Band TD Pro Mode
• 900M/2.4G Dual Band TD Mode
• Dual 2.4G TW Mode
• ACCESS 2.4G & ACCESS R9 Modes
• 2.4G ACCST D16 Mode
• Super Low-Latency and Long-Range Control with Telemetry
• Upgraded Robust Antenna Handle
• 900M/2.4G External Antenna Connectors (LoRa mode)
• All CNC High-Precision Hall-Sensor MC20R Gimbals with 10 Ball-Bearing
• Dual-side haptic feedback (Left/Right can do vibration independently.)
• Easy Travel-adjustable with any desired degree from 45°to 60°
• 8° rotatable panel
• 800×480 Resolution Outdoor High Brightness Touchscreen
• Left-side Multi-position CNC Flaps Slider Lever
• Right-side Angle Adjustable CNC Extended Slider Lever
• 2 Self-Locking Shoulder Buttons
• 1 Self-Locking Shoulder Switch
• CNC Metal Switch Caps (Red & Black)
• 2 Knobs & 6 Trims with All-CNC Metal Caps
• 6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)
• CNC Machined Metal Shell & Carbon Fiber Center Panel
• Built-in 8GB Flash Storage
• Text to Speech (TTS) Function
• Digital Audio Power Amplifier
• Built-in 6-axis Gyroscope Sensor
• High-Speed PARA Wireless Training System
• Built-in Audio Wireless Module (Compatible with Bluetooth Audio Device)
• Haptic Vibration Alerts and Voice Speech Outputs

Specification:

• Dimension: 200.5x213x84mm (L*W*H)
• Weight: 999g (without battery)
• Operating System: ETHOS
• Internal RF module: TD-ISRM PRO
• Number of Channels: Up to 24
• Built-in Flash Storage: 8GB
• Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
• Operating Temperature: -10°C~60°C (14°F~140°F)
• Operating Current: 600mA@7.4V (typ.)
• Charging Current: ≤1A ±200mA
• Recharge System for 2S Li-ion Battery (USB Type-C Interface)
• USB Adaptor Voltage: 5V+0.2V
• USB Adaptor Current: >2.0A
• Backlit Touchable LCD Resolution: 800*480
• Compatibility: ACCST D16 & ACCESS & TD & TW receivers
• Lite Type External Module Bay

Package contains:

• 1x FrSky Tandem X20 Pro Dual Band Ethos Radio AeroWing Edition
• 1x Laser Engraved Crystal Weight
• 1x Aluminum Travel Case
