Product Specifications
Product Details

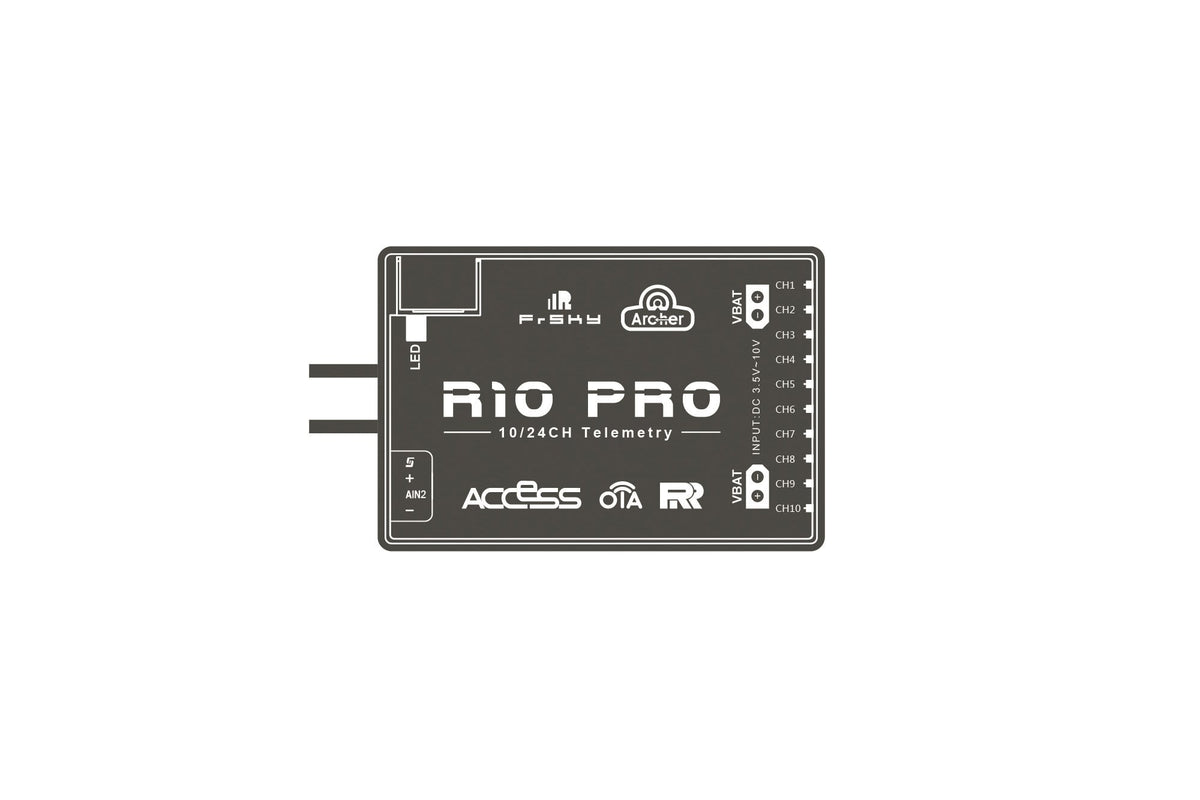

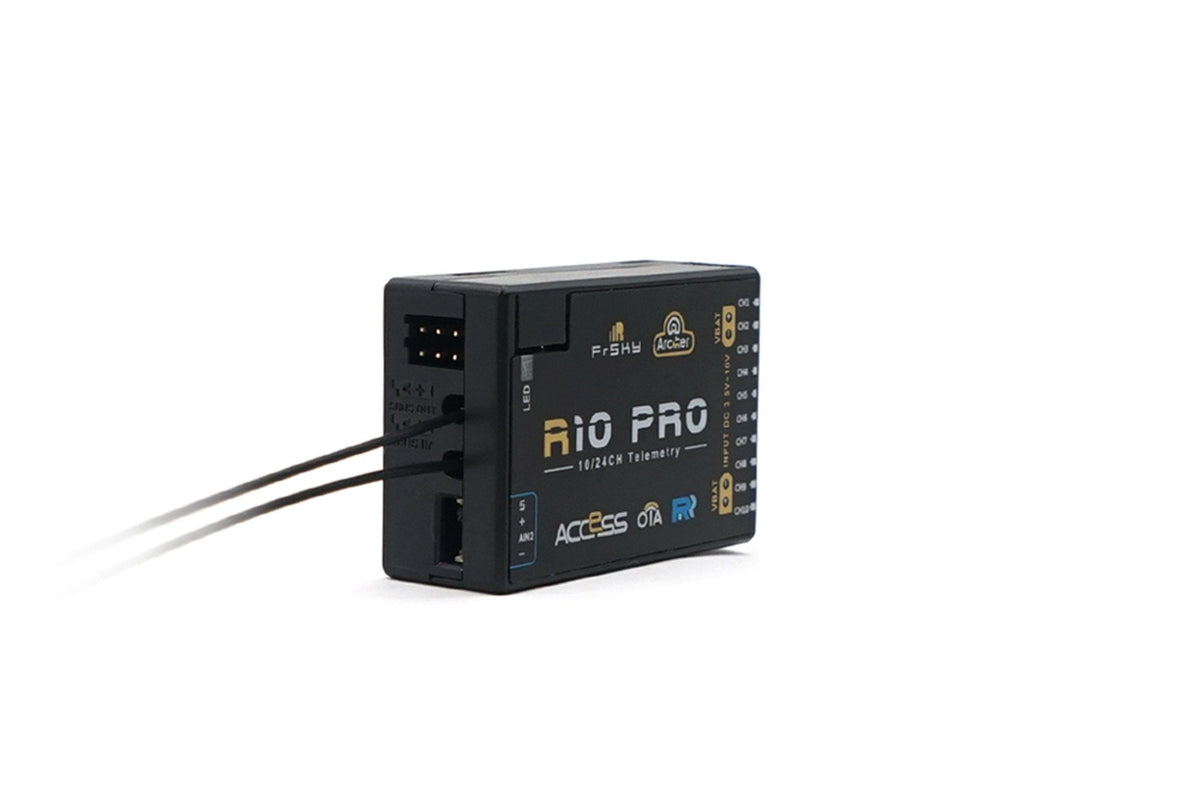

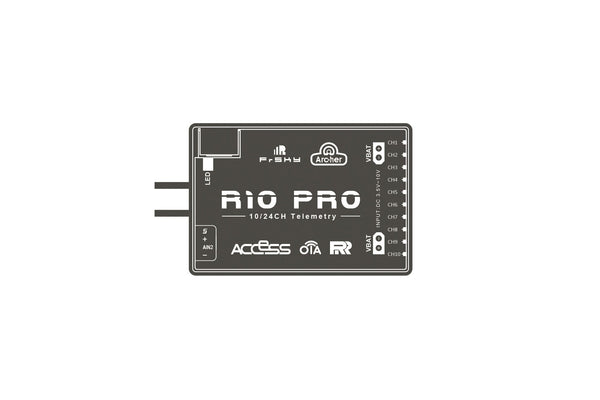

The Archer R10 Pro has 10 high-precision PWM channel outputs and features excellent Anti-interference performance when it comes to spark-ignition on internal combustion models. It supports full-range signal strength with dual detachable antennas that assure optimal antenna reception and maximum range. In addition to all this, the R10 PRO can also be used as a redundancy receiver along with any other FrSky ACCESS capable receiver equipped with a SBUS port. This 10-channel receivers’ noticeable features are its Anti-vibration performance and dual-battery ports for redundancy.
All of the Archer receivers are hyper-matched with the ACCESS protocol. They not only feature wireless firmware upgrades, increased range, and telemetry performance, the R10 PRO now supports more functions like configurable telemetry power, S.Port/F.Port switching and FLR output. Additional valuable features are under development to unlock the true potential of the ACCESS protocol.
ACCESS protocol with Over The Air (OTA)
Supports signal redundancy (SBUS In)
Supports power redundancy (Dual battery ports)
Full control range with telemetry
S.Port / F.Port
Anti-interference in spark-ignition
Anti-Vibration
External battery / device voltage detection
Specification
Dimension: 48.5*33*17mm (L*W*H)
Weight: 21g
16/24 Configurable SBUS Channels
10 High-precision PWM Channels
Operating Voltage Range: 3.5 -10V
Operating Current: 80mA@5V
Control Range: Full range* with telemetry
(*Full Range: ＞2km, range may vary based on local conditions.)
Voltage Measurement Range via AIN2 (External device): 0-36V
Compatibility: All FrSky ACCESS transmitters
