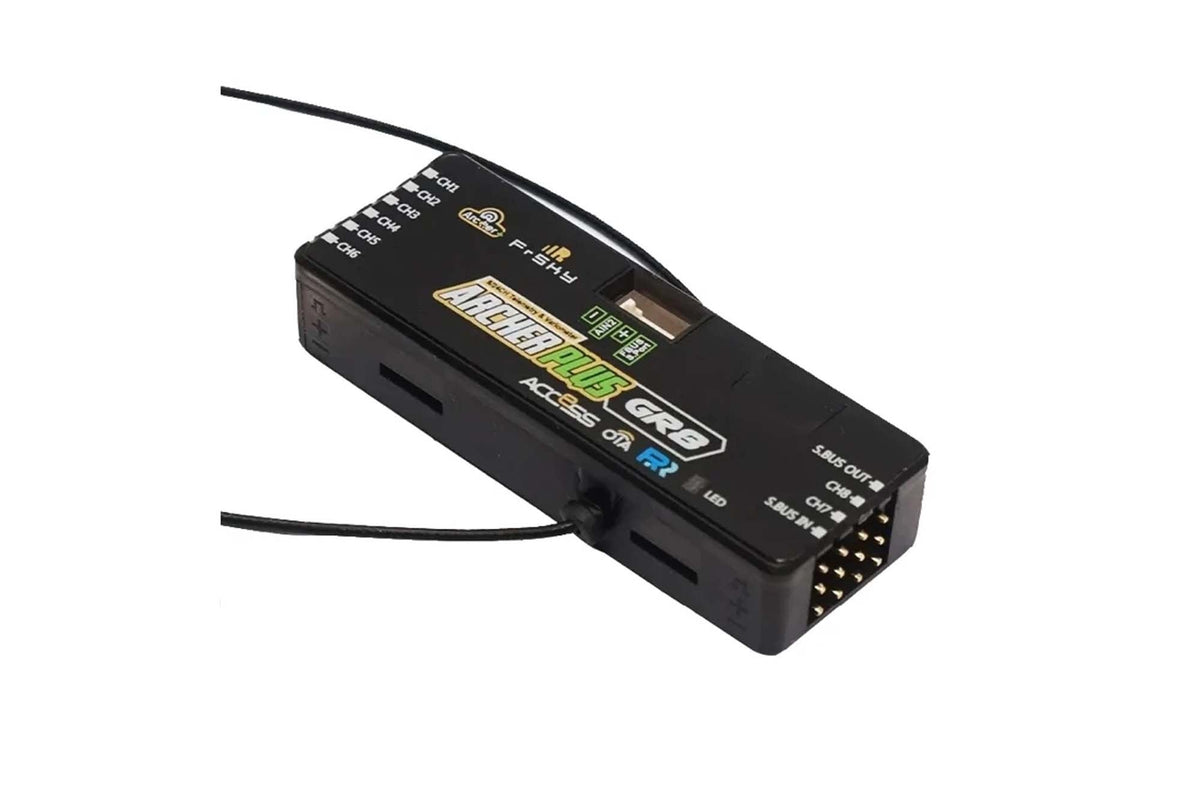

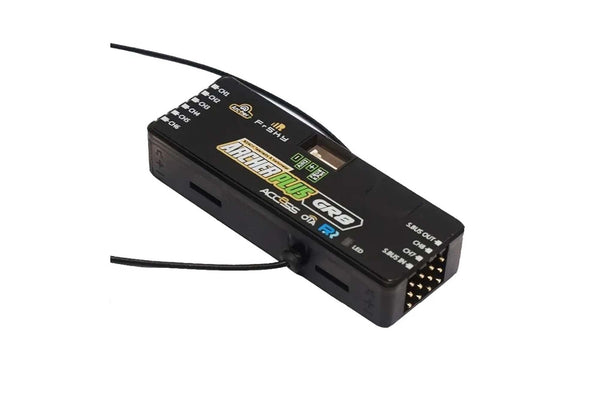

FrSkyFrSky Archer Plus GR8 Receiver

The Archer line of receivers has been enhanced further with the addition of the new Archer Plus Series.

The Archer Plus Series receivers include some new features. Firstly an enhanced anti-RF-Interference capability can offer a more solid RF performance, and this is in addition to existing anti-interfere performance in the spark ignition process. These Plus series receivers are also with both ACCESS and ACCST D16 modes, where the RF protocol is smart matched during the binding process on the radio. With the Black-Box function, some basic flight data (like Power & Signal related) can be well preserved.

The FRSKY ARCHER Plus GR8 has 8 high-precision PWM channel output and is ideal for any type of glider pilot. It features an upgraded high-precision variometer that gives pilots a quick, accurate altitude and vertical speed data. In addition to all this, the SBUS IN port on the GR6 can also be used as a redundancy receiver along with any other FrSky ACCESS/ACCST V2 (EU LBT & FCC) capable receiver equipped with an SBUS port. The best available signal will be used to ensure superior connectivity. With the FBUS protocol, the Archer Plus series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (XACT servos, ADV Sensors, etc.). This receiver also supports full-range signal strength with dual detachable antennas and guarantees optimal antenna reception and range.

Features:

• Enhanced Anti RF-Interference capability with more solid RF performance
• Smart-matched ACCESS & ACCST D16 modes
• Supports basic Black-Box function
• Upgraded variometer sensor
• 8 high-precision PWM channel ports
• SBUS Out port（Supports 16ＣＨ／24CH mode）
• SBUS In port (Supports Signal Redundancy)
• Full control range with telemetry (S.Port or FBUS)
• Over-The-Air (OTA) FW update
• External battery/device voltage detection

Specifications:

• Dimension: 54x20x10mm
• Weight: 9.8g
• Number of Channels: 8/24 channels
• 8 High-precision PWM & 16 SBUS channels Mode
• 8 High-precision PWM & 24 SBUS channels Mode
• Operating Voltage Range: 3.5 -10V
• Operating Current: ＜65mA@5V
• Operating Range: ＞2km (Full range)(*Range may vary based on local conditions.)
• Variometer Measurement Range
• Altimeter Range & Resolution: -700m to 10000m & 0.1m
• Vertical Speed Range: ±10m/s
• Voltage Measurement Range via AIN2 (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
• Antenna connector: IPEX4
• Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters

Package contains:

• 1x FrSky Archer Plus GR8 Receiver
