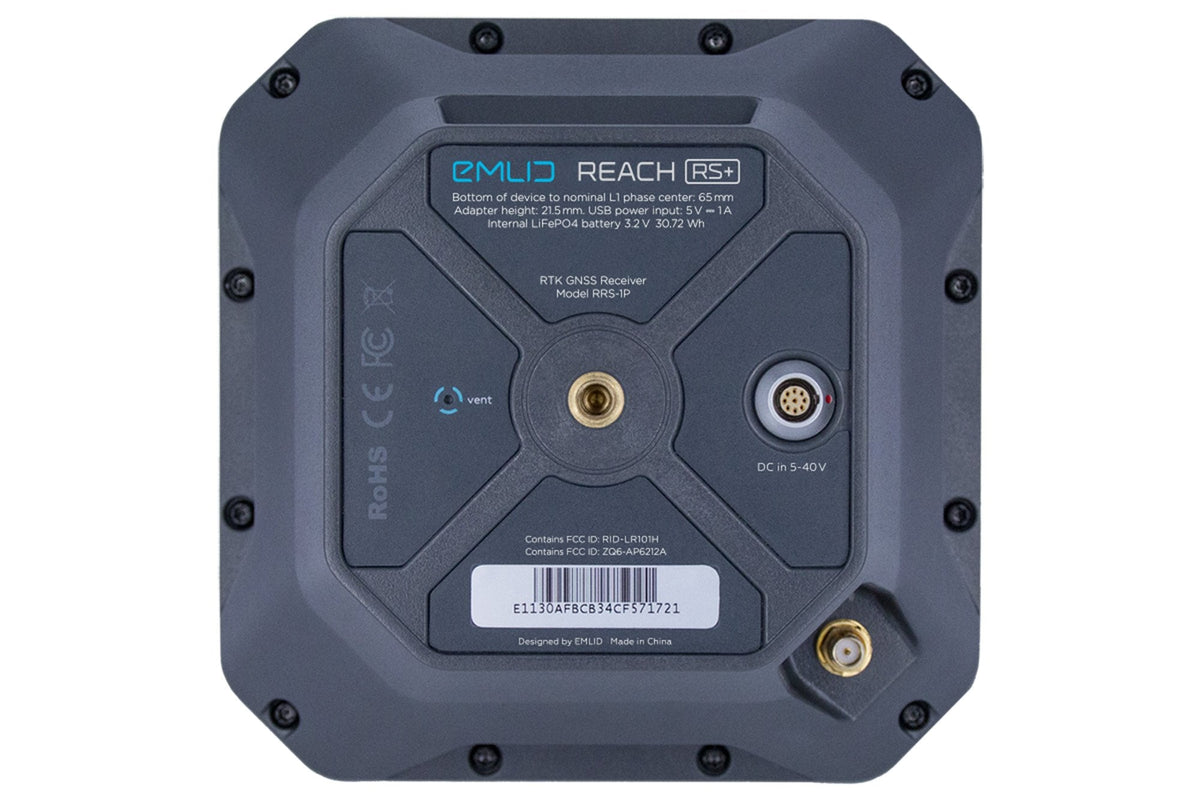

EMLIDEMLID Reach RS+ GNSS Receiver

REACH RS+: Single-band RTK GNSS receiver

• For surveying in RTK and PPK modes.
• Comes with a mobile app.

Broad Connectivity

Wi-Fi, Bluetooth, RS-232, USB

Dual-Feed Antenna

High performance dual- feed antenna with large ground plane.

RINEX Logging

Update rate is up to 14 Hz.

LoRa Radio

Up to 8 km connectivity at 868/915 MHz.

Survey with Emlid Flow and Manage Data with Emlid Flow 360

Emlid Flow is a mobile app for iOS and Android. It handles all the fieldwork—receiver settings, data collection, coding, linework, and stakeout. All survey data is in sync with the cloud-based service Emlid Flow 360, which allows you to access your projects from your browser and manage survey data and code lists.

Collect and stake out points: Use any coordinate system you need

To create a project for data collection, choose your coordinate system from the library or enter its parameters manually. The app supports thousands of coordinate systems, projections, grids, and geoids.

In the stakeout mode, the app displays East-North and straight-to-line distances and supports cut and fill indications. A close-up alignment mode helps you to center precisely above the point.

Coordinate systems based on WGS84, NAD83, GDA2020, and others

Collect and stake out lines: Create linework on the go, start new lines, and continue collecting existing ones

You can either use predefined geometry types or a full-blown code library. The linework is displayed right away, so you can always see how your project is progressing.

During the stakeout, you can easily navigate to a line, and stake it out with an offset and with a chainage.

Coding: Quickly switch between different object codes as the whole library is at your fingertips at all times

To measure and describe objects, upload your custom code library or use a built-in one with more than a hundred codes. Easily create new codes on the fly right in your survey project.

Work with satellite maps or any WMS source: Our responsive project view supports satellite imagery, as well as your own custom background map sources.

Manage your projects in the cloud

The Emlid Flow app is synchronized with the Emlid Flow 360 service. This allows you to create and access survey projects, manage coordinate systems, and export and import data using both the mobile app and the cloud service at flow360.emlid.com.

Export and import formats: CSV, DXF, and Shapefile

Manage your code libraries

Import your code library to Emlid Flow 360, and it is immediately available for your projects inside the Emlid Flow mobile app. No need to check if the latest version is on the collector, as it all syncs automatically.

Real-time position Streaming in NMEA

Reach provides data in standard NMEA that is used by most GIS apps. Simply connect your device to Reach over Bluetooth or with a cable, and turn on “Position output” in Emlid Flow.

Reach can turn on and off automatically

Reach can turn on and off in sync with an external battery connected over RS-232. This helps when the power button is hard to reach, for example, if the receiver is placed on the roof of a tractor.

Compatible apps: FieldGenius for Android, ESRI Collector, QField and others

Position streaming: Interfaces RS-232, TCP, Bluetooth

Log raw data in RINEX

Record raw positioning data in RINEX format for further post-processing. Point collection and recording of raw data are independent processes and can be used simultaneously.

For post-processing, you can use our free PPK software Emlid Studio.

NTRIP or another Reach as a base station

Reach RS+ needs a base station as a source of corrections. That’s a requirement for centimeter precision in RTK and PPK. The base might be another Reach RS+ receiver or an NTRIP service. VRS is also supported.

Reach RS+ works seamlessly with other Reach receivers over any link.

Input and output corrections

Interfaces: TCP, LoRa, Bluetooth, RS-232, NTRIP

Formats: RTCM3

Max distance from a base: Up to 10 km in RTK; 20 km in PPK

Reach RS+ is engineered to be tough: Frost, heat, and water — Reach can handle it all

IP67: Can be held 1 meter deep underwater for half an hour.

-20 to +65 ºС: Working temperature. Isn’t afraid of either heat or cold.

Up to 30 hours: Industrial LiFePO4 battery that doesn’t die when cold. Charges over USB from a powerbank.
