Product Specifications
Product Details
Specifications
- ESP32-PICO-D4, SX1281, ExpressLRS Firmware
- PA/LNA: SE2431L
- RF Frequency: 2.4GHz ISM
- Telemetry power: 22.5dbm (180mW)
- Diversity: Antenna-switching, default ANT1
- Barometer SPL06-001 (Vario)
- Receiver output: 6x PWM CH

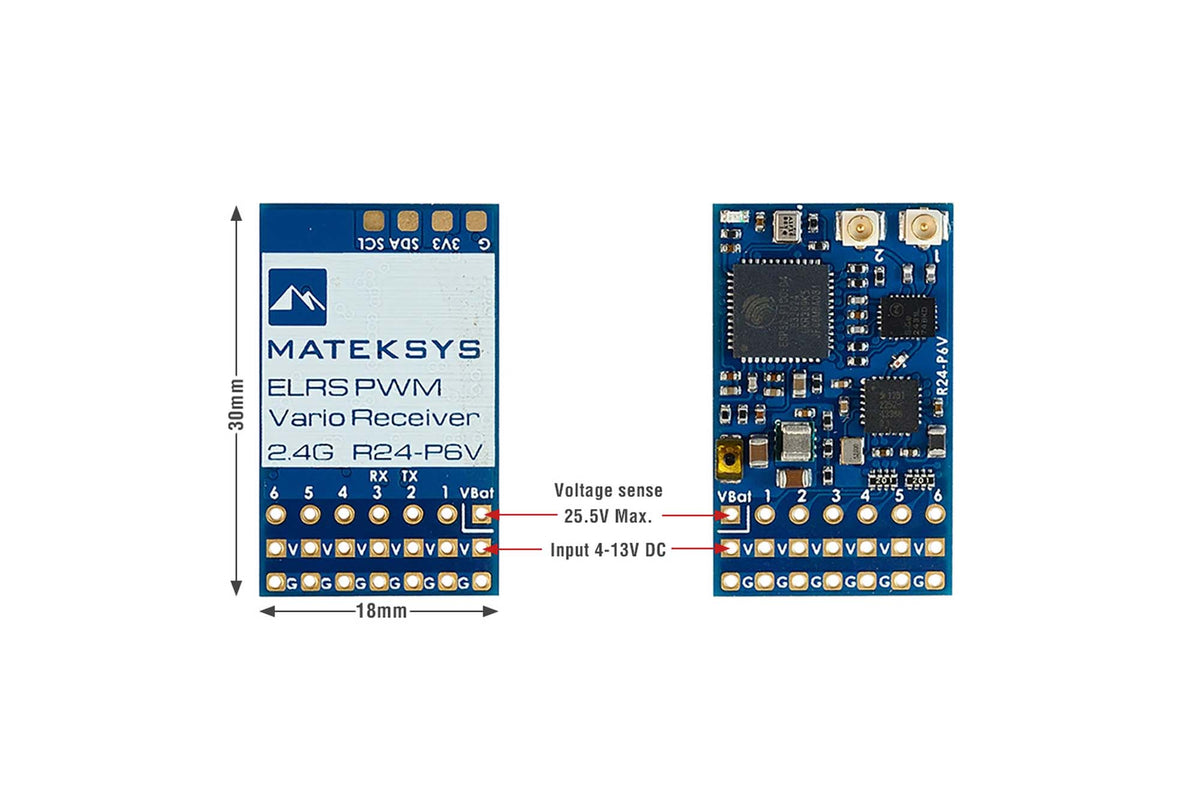

- VBAT voltage sense: 0~25.5V
- Antenna connector: IPEX MHF-1
- Power supply: 4-13V DC @ “V” Pad
- Power dissipation: 60mA~80mA@5V IN
- PCB size: 30mm x 18mm
- Weight: 4g w/ antenna
Firmwares
- Receiver Target: Generic ESP32 PWM Vario 2.4Ghz RX, /or RadioMaster ER6-GV, /or RadioMaster ER6-G
- Receiver has ExpressLRS 3.3.2 preloaded with binding phrase “123456”, the Receiver will never enter binding mode if using the traditional binding procedure.
- You need to reflash it with your binding phrase OR connect it to your PC/phone via WiFi and set your binding phrase in WebUI.
Tips
- Powering receiver with Reverse Voltage will damage the regulator chip. DOUBLE CHECK the power wires connected to the receiver.
- Transmitter fw version should be EdgeTX 2.7.1/OpenTX 2.3.15 or newer
——————————————————-
Flashing via Wifi
- Power on receiver. Receiver’s LED(Red) will blink slow at first, and after 30s, it should blink fast indicating it’s on Wifi Hotspot Mode.
- Wifi SSID “ExpressLRS RX”, Password “expresslrs”
Package contains:

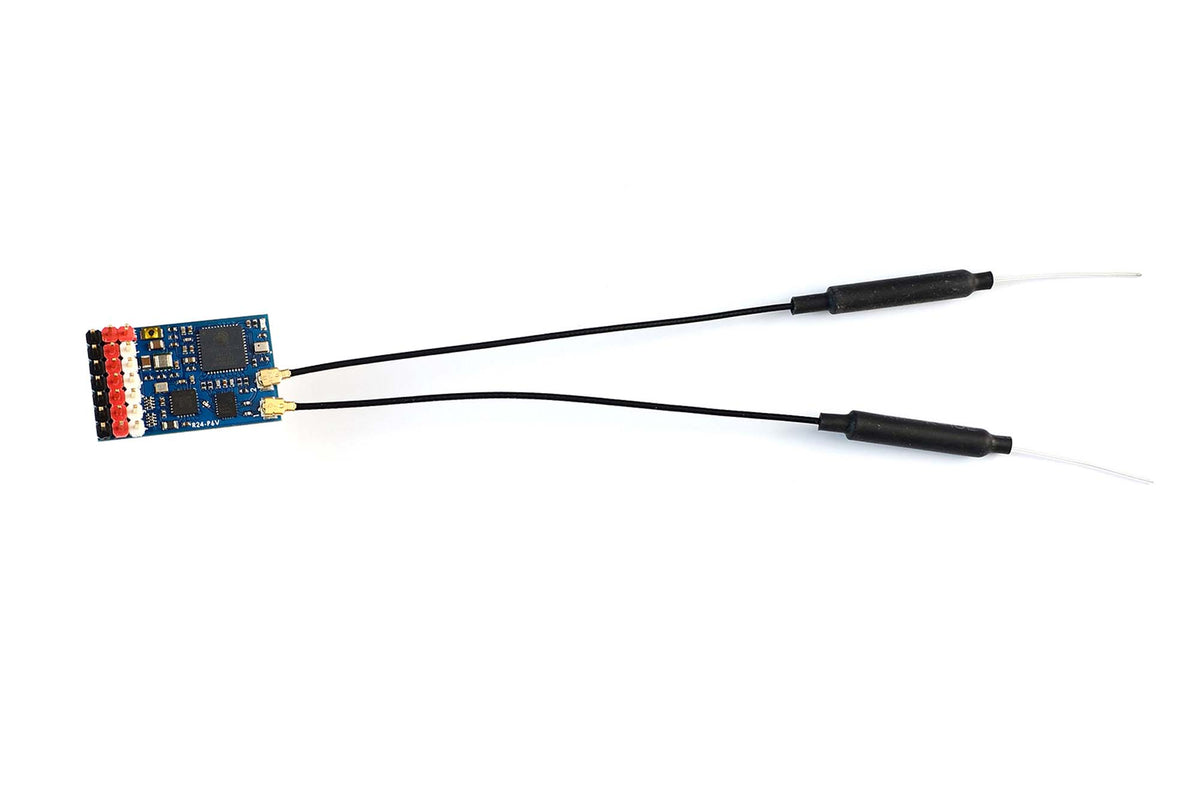

- 1x ELRS-R24-P6V
- 2x IPEX MHF1 Antennas. 15cm
- Dupont 2.54 pins (Board is shipped unsoldered)
