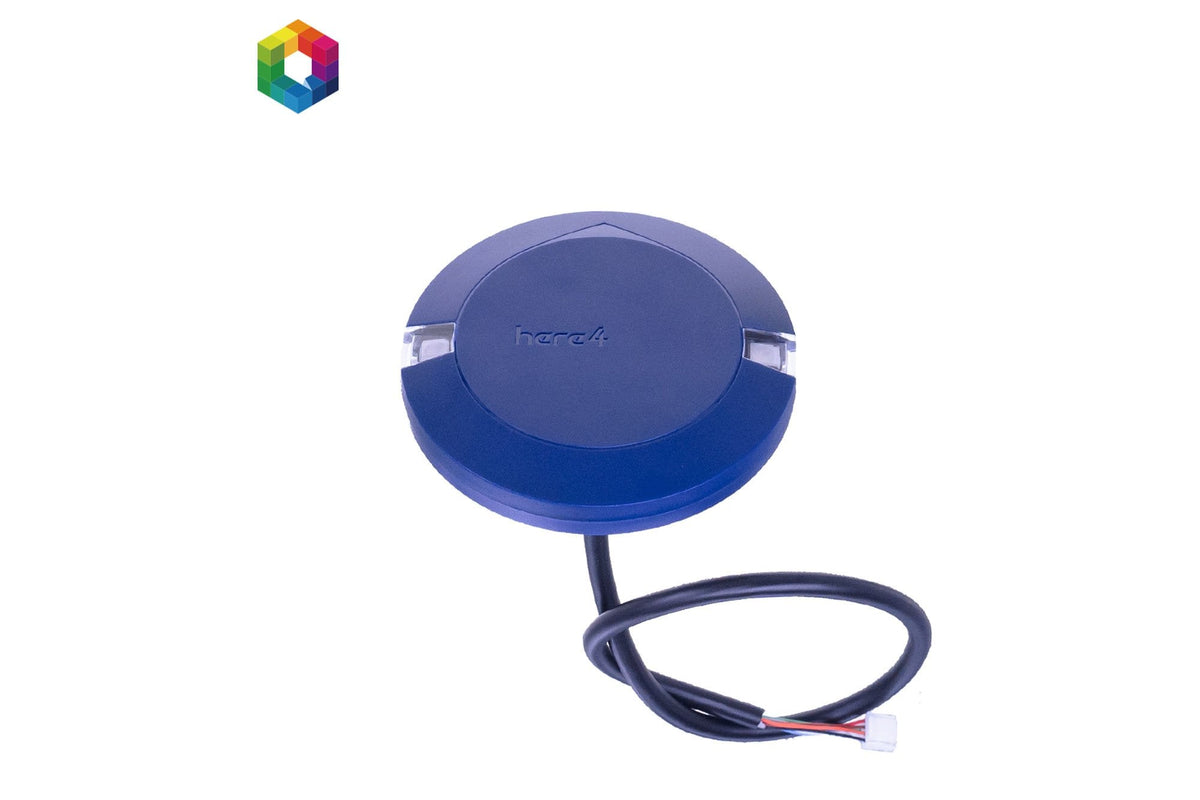

Name: CubePilot- Here4 Blue Multiband RTK GPS with Bluetooth 5.2 (HX4-06279)
Brand: CubePilot
SKU: CP-01-14-HERE4-BLUE-HX4-06279
Price: 350.00 GBP
Availability: InStock

CubePilot- Here4 Blue Multiband RTK GPS with Bluetooth 5.2 (HX4-06279)

Product Specifications

Product Details

CubePilot Here4 Blue Multiband RTK GNSS with Bluetooth 5.2 (HX4-06279)

The package Contains: 1 x Here 4 Blue (HX4-06279)

Features:

Includes Bluetooth 5.2 for Remote ID.
with moving baseline
Manufactured in the USA.

Centimeter level high-precision positioning: Equipped with the uBlox NEO-F9P L1/L5 RTK Multi Constellation GNSS module. Fastest lock times of any of the standard Here GPS series. Reliable centimeter-level navigation.

More onboard compute and mems: Built-in STM32H757 dual-core processor. The combination of the RM3100 magnetic compass and ICM42688 sensor has better performance in more applications.

Integrated module with multiple features: Here4 is more than a GNSS module. It has both flight control and navigation capabilities. Fitted with 8 PWM or BDSHOT outputs, an RCIN, Hotshoe, and camera trigger, accurate mapping has never been more self-contained.

Supports further expansion/customization: The reliable DRONECAN FD communication protocol ensures fast (8Mbps) and stable transmission. Based on the AP-Periph open source platform, users can better carry out further development and customization.

Product Details

CubePilot Here4 Blue Multiband RTK GNSS with Bluetooth 5.2 (HX4-06279)

The package Contains: 1 x Here 4 Blue (HX4-06279)

Features:

Includes Bluetooth 5.2 for Remote ID.
with moving baseline
Manufactured in the USA.

Centimeter level high-precision positioning: Equipped with the uBlox NEO-F9P L1/L5 RTK Multi Constellation GNSS module. Fastest lock times of any of the standard Here GPS series. Reliable centimeter-level navigation.

More onboard compute and mems: Built-in STM32H757 dual-core processor. The combination of the RM3100 magnetic compass and ICM42688 sensor has better performance in more applications.

Integrated module with multiple features: Here4 is more than a GNSS module. It has both flight control and navigation capabilities. Fitted with 8 PWM or BDSHOT outputs, an RCIN, Hotshoe, and camera trigger, accurate mapping has never been more self-contained.

Supports further expansion/customization: The reliable DRONECAN FD communication protocol ensures fast (8Mbps) and stable transmission. Based on the AP-Periph open source platform, users can better carry out further development and customization.
