Name: Benewake - TF Nova
Brand: Benewake
SKU: BW-04-04-TF-Nova
Price: 28.50 GBP
Availability: InStock

Product Details

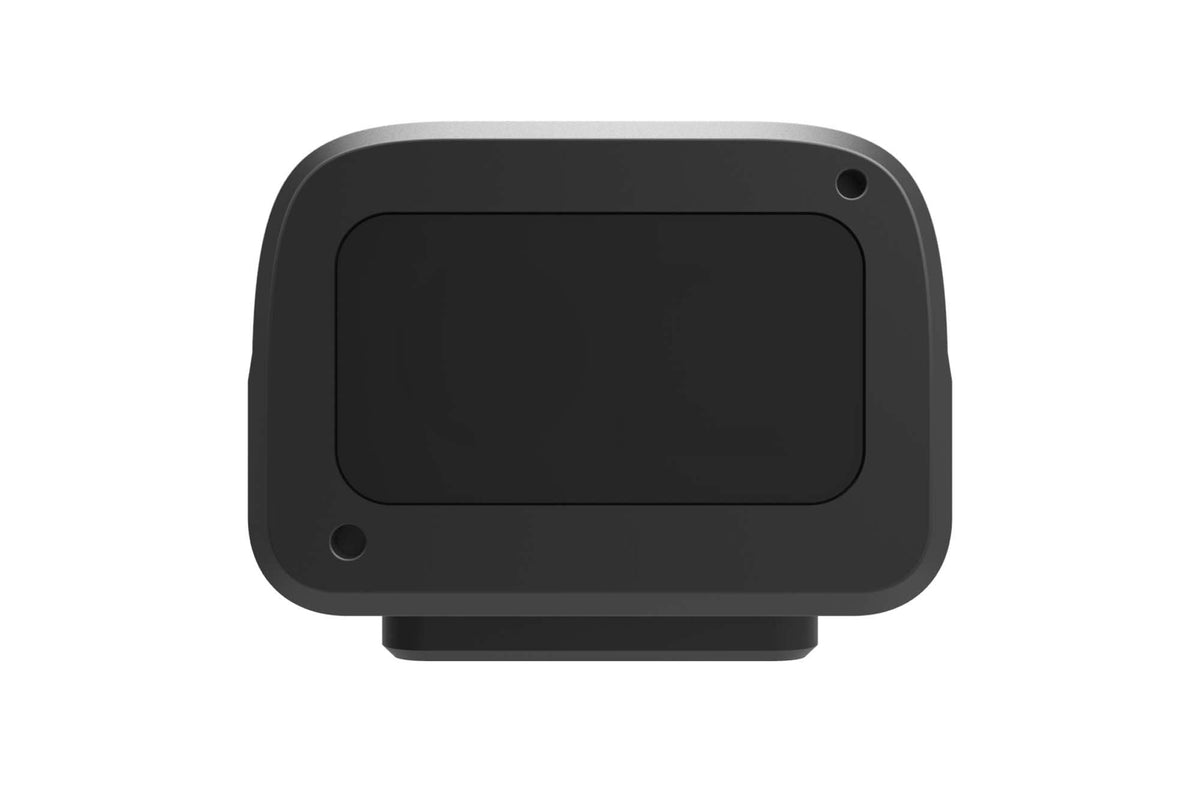

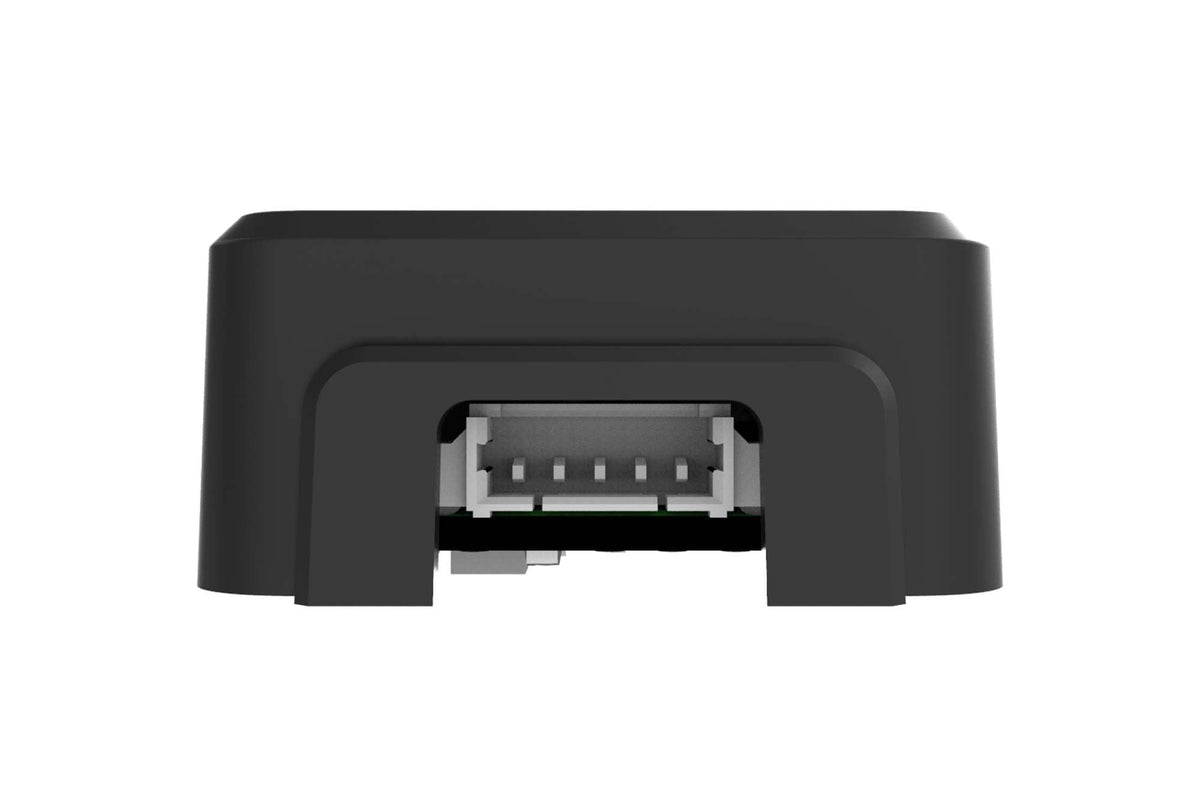

The Benewake TF-NOVA is a compact, solid-state LiDAR sensor designed for precise area detection. It features a unique line pattern laser beam with a horizontal field of view of 14° and a vertical field of view of 1°, enabling the detection of areas of approximately 25×1.7 cm at a distance of 1 meter. With a measurement range of 0.1 to 7 meters and an adjustable frame rate between 1 Hz and 500 Hz, the TF-NOVA offers accurate and responsive performance.

Its small dimensions (26.5×21.05×12 mm) and low weight (less than 5 grams) facilitate its integration into various systems. The sensor supports multiple interfaces, including UART, I²C and I/O, and is equipped with a waterproof lens, making it suitable for both indoor and outdoor applications. Its robust design enables reliable detection of objects with low reflectivity, such as black vehicles, even in strong ambient lighting.

Specification:

Product Category - Distance Sensor Modules
Dimensions - 26.5mm x 21.05mm x 12mm
Interface type - 12C, UART
Maximum operating temperature - +70V
Minimum operating temperature - -25C
Operating supply voltage - 5V
Product - Sensors
Sensing distance - 7m
Type - Laser Beam LiDAR

Package contains:

1x TF Nova

Product Details

The Benewake TF-NOVA is a compact, solid-state LiDAR sensor designed for precise area detection. It features a unique line pattern laser beam with a horizontal field of view of 14° and a vertical field of view of 1°, enabling the detection of areas of approximately 25×1.7 cm at a distance of 1 meter. With a measurement range of 0.1 to 7 meters and an adjustable frame rate between 1 Hz and 500 Hz, the TF-NOVA offers accurate and responsive performance.

Its small dimensions (26.5×21.05×12 mm) and low weight (less than 5 grams) facilitate its integration into various systems. The sensor supports multiple interfaces, including UART, I²C and I/O, and is equipped with a waterproof lens, making it suitable for both indoor and outdoor applications. Its robust design enables reliable detection of objects with low reflectivity, such as black vehicles, even in strong ambient lighting.

Specification:

Product Category - Distance Sensor Modules
Dimensions - 26.5mm x 21.05mm x 12mm
Interface type - 12C, UART
Maximum operating temperature - +70V
Minimum operating temperature - -25C
Operating supply voltage - 5V
Product - Sensors
Sensing distance - 7m
Type - Laser Beam LiDAR

Package contains:

1x TF Nova
