Airbot SystemsAirbot Systems- Mini Carrier Board + PDB Pro V2 100A Combo

The Airbot MINI Carrier Board + PDB PRO v2 100A Combo is the most efficient set to integrate a Cube into a vehicle. This set grants a high level of connectivity in a very compact size. Equipped with a PDB integrating two voltage converters (5V3 & 5V3/12V), current and voltage sensors, this set provides all the environment necessary for a complete setup, and in an ultra compact format.

**100 Amp version**

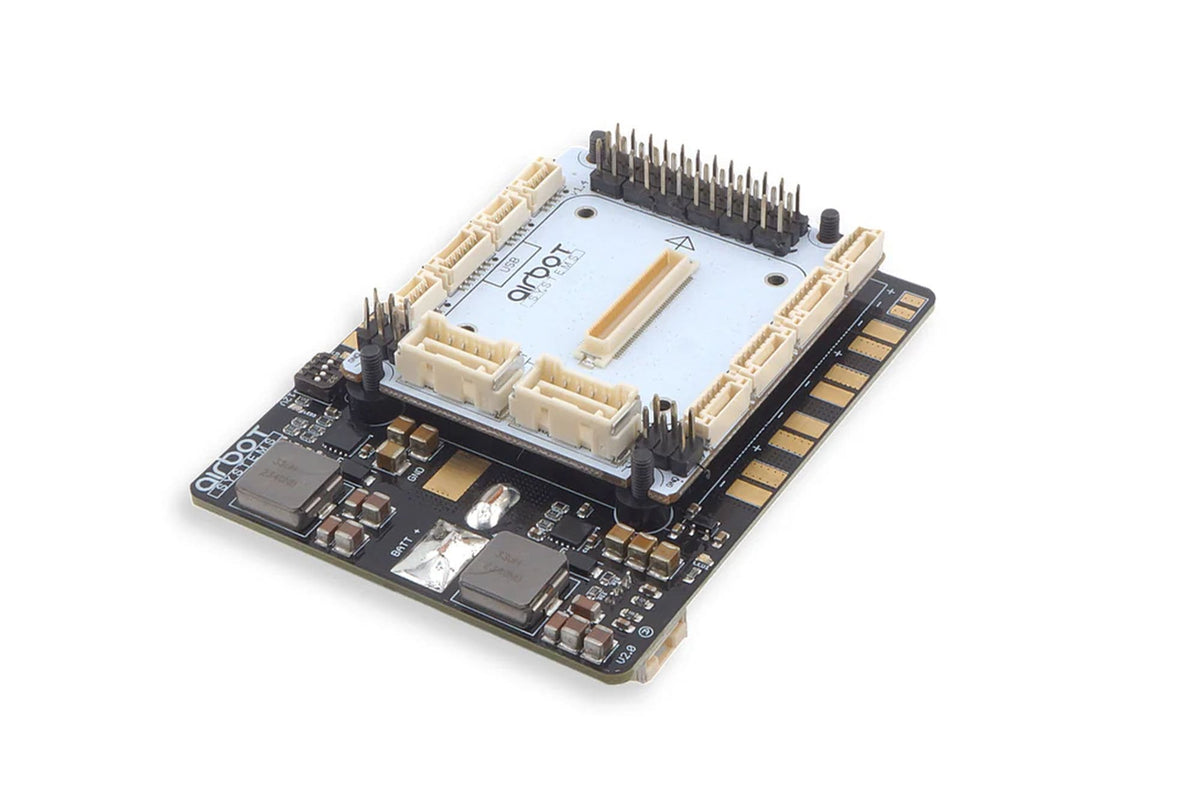

The Pro version integrates a power distribution board which includes two voltage converters, a current sensor and a voltage probe. This very compact set includes all the elements necessary to accommodate a Cube, allows easy assembly and significant space saving.

The Airbot Mini carrier board PRO has been specially designed to facilitate the installation of a Cube Autopilot on any drone. It offers the same connectivity as the official Cubepilot carrier board, and guarantees perfect compatibility with the Pixhawk Cube ecosystem.

*The Cube is not included**

Mini carrier board : (Version 1.4)

Dimensions : 50.5*57.5mm (1.98*2.26 inch)

Height with cube: 24.65 mm (EXCL. PSM + 2.75 mm approx)

Weight: 19gr (0.041 lb) (incl. connectors and PSM)

Mini Distribution Board Pro 100A:

• Dimensions : 65.5*85mm (2.58*3.35 inch)
• Weight : 44gr (0.097lb)
• Max current : 100A / 200A

Power supply 1 :

• Output voltage : 5.3V
• Max output current : 3A (4A peak tolerant)
• Max voltage input : 50.4V (12S)

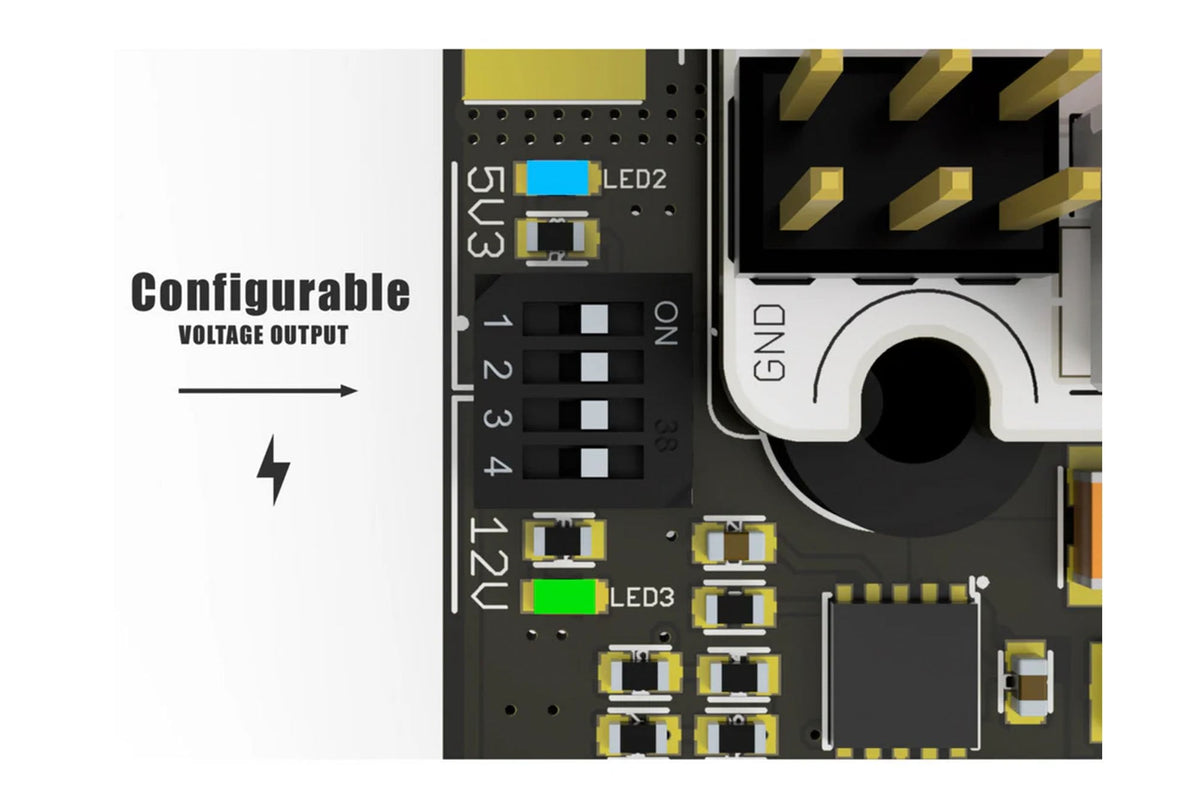

Power supply 2 :

• Output voltage : 5.3V or 12V
• Max output current : 3A (4A peak tolerant)
• Max voltage input : 50.4V (12S)

TOTAL weight: 68g / 0.150lbs

Design, quality control and packed in France

Manufactured in China

For more information, please see https://airbot-systems.gitbook.io/airbot-public-wiki/combo-pro/v-2.0

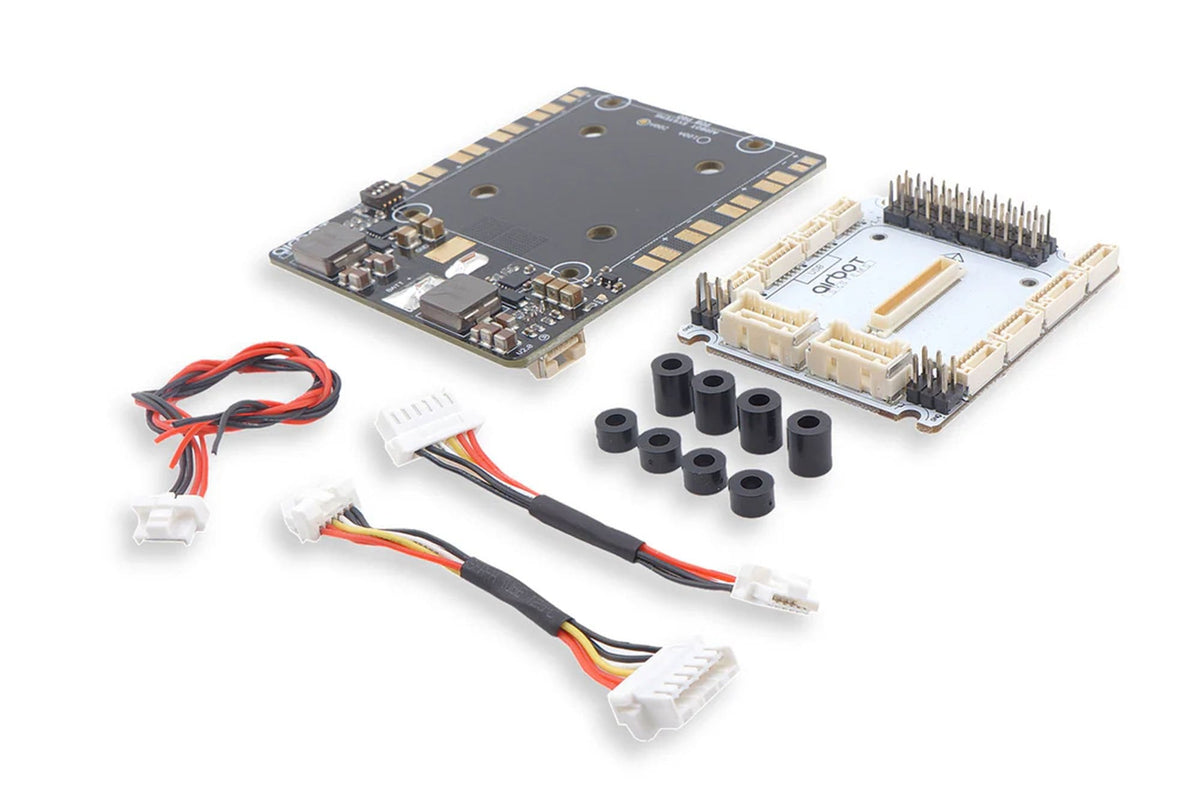

Package contains:

• 1 x Airbot Mini Carrier Board
• 1 x Airbot Mini PDB Pro v2,100A
• 4 x M3x8mm nylon spacer
• 4 x M3x4mm nylon spacer
• 2 x Cube power cable
• 1 x Accessories power cable
