Name: Pagoda 3B LHCP Antenna 5.1GHz
Brand: 3DXR
SKU: 3DX-00001-094
Price: 15.99 GBP
Availability: InStock

Product Specifications

Product Details

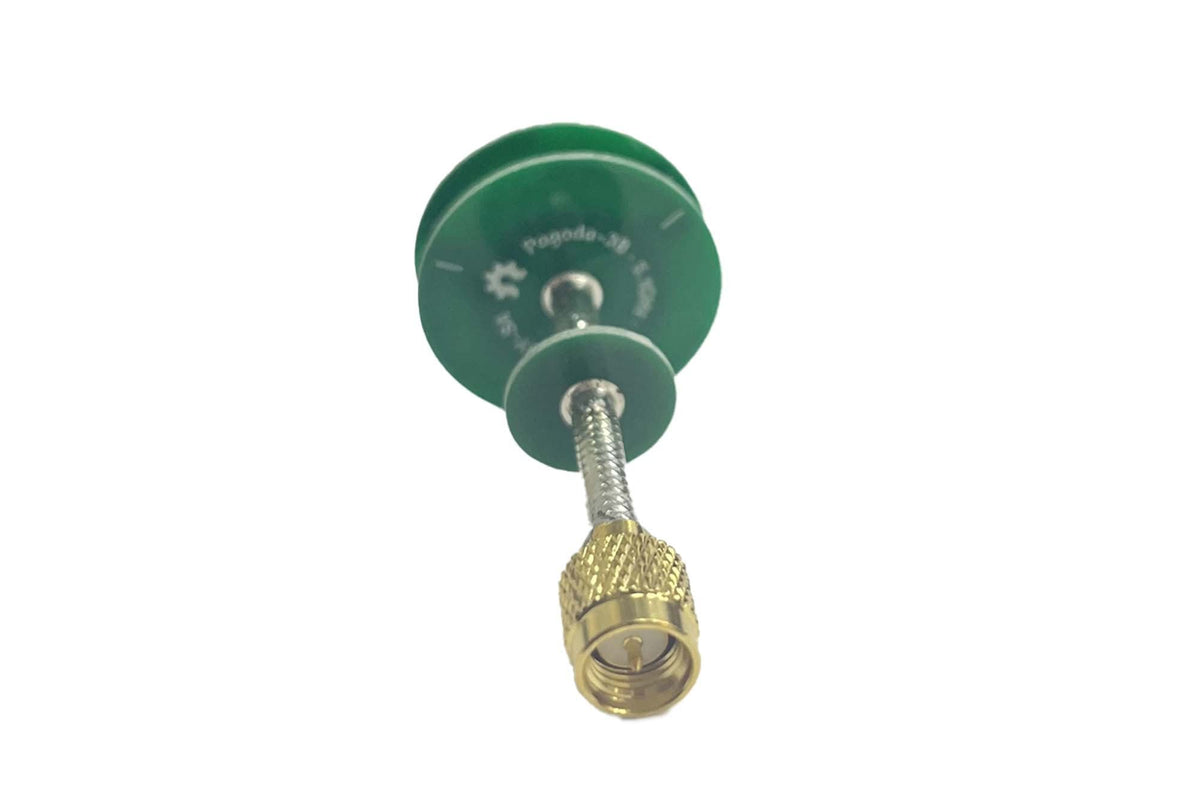

The Pagoda-3B LHCP design by Maarten Baert. This thoughtfully designed circular polarized antenna utilizes a 3 tiered 1 oz copper PCBs to replace the typically fragile wire elements.
It will work great as either TX or RX antenna. This is the Stubby at 50mm length.

Specification:

Center frequency: 5.1 GHz
Bandwidth: 500 MHz
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Radiation efficiency: 95%
LHCP
Weight 6 gm

	Stimulated	Measured
Center frequency	5.1 GHz	5.1 GHz ± 100 MHz
Bandwidth	500 MHz	500 MHz ± 50 MHz
Matching	S11 < -30 dB, VSWR < 1.065	S11 < -20 dB, VSWR < 1.22	At center frequency
Axial ratio	< 1.3 (2.28 dB)	< 1.33 (2.5 dB)	Varies with angle and frequency
Antenna gain	1.2 dBi	0.0 dBi
Radiation efficiency	94%	78%

Package contains:

1x Pagoda 3B LHCP Antenna 5.1GHz

Product Details

The Pagoda-3B LHCP design by Maarten Baert. This thoughtfully designed circular polarized antenna utilizes a 3 tiered 1 oz copper PCBs to replace the typically fragile wire elements.
It will work great as either TX or RX antenna. This is the Stubby at 50mm length.

Specification:

Center frequency: 5.1 GHz
Bandwidth: 500 MHz
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Radiation efficiency: 95%
LHCP
Weight 6 gm

	Stimulated	Measured
Center frequency	5.1 GHz	5.1 GHz ± 100 MHz
Bandwidth	500 MHz	500 MHz ± 50 MHz
Matching	S11 < -30 dB, VSWR < 1.065	S11 < -20 dB, VSWR < 1.22	At center frequency
Axial ratio	< 1.3 (2.28 dB)	< 1.33 (2.5 dB)	Varies with angle and frequency
Antenna gain	1.2 dBi	0.0 dBi
Radiation efficiency	94%	78%

Package contains:

1x Pagoda 3B LHCP Antenna 5.1GHz
