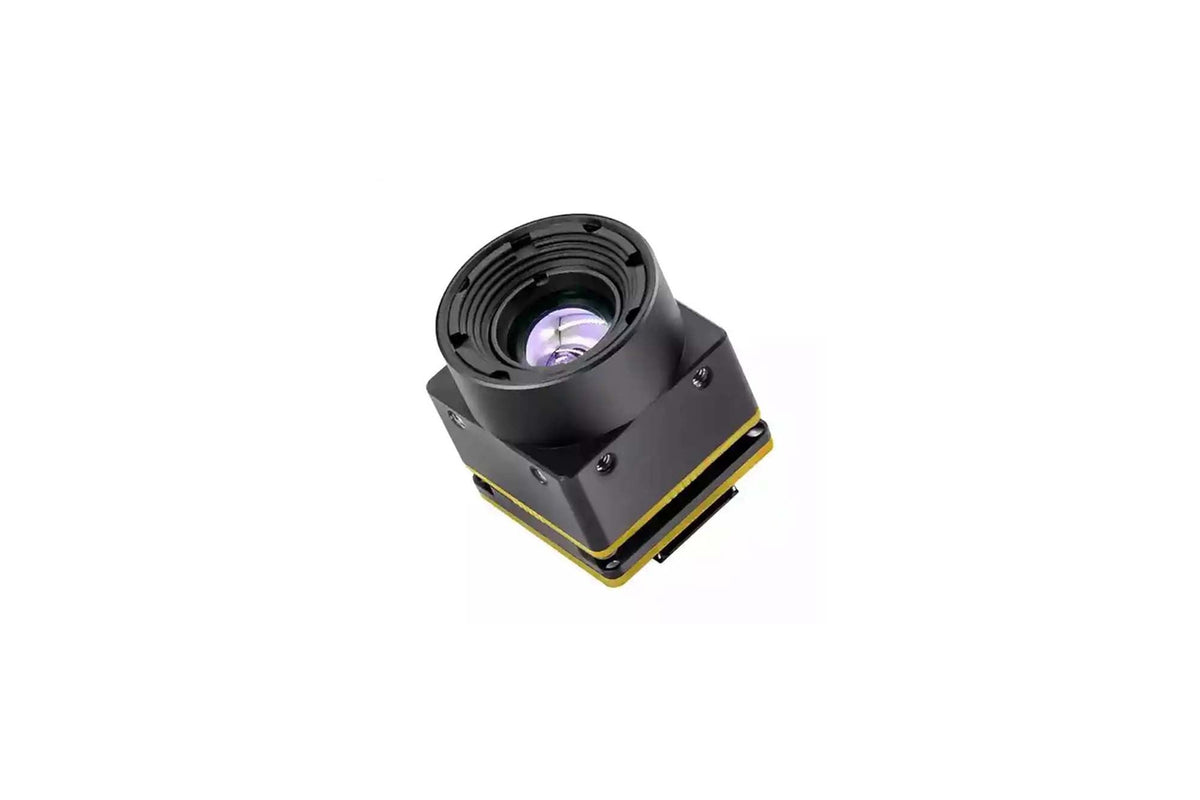

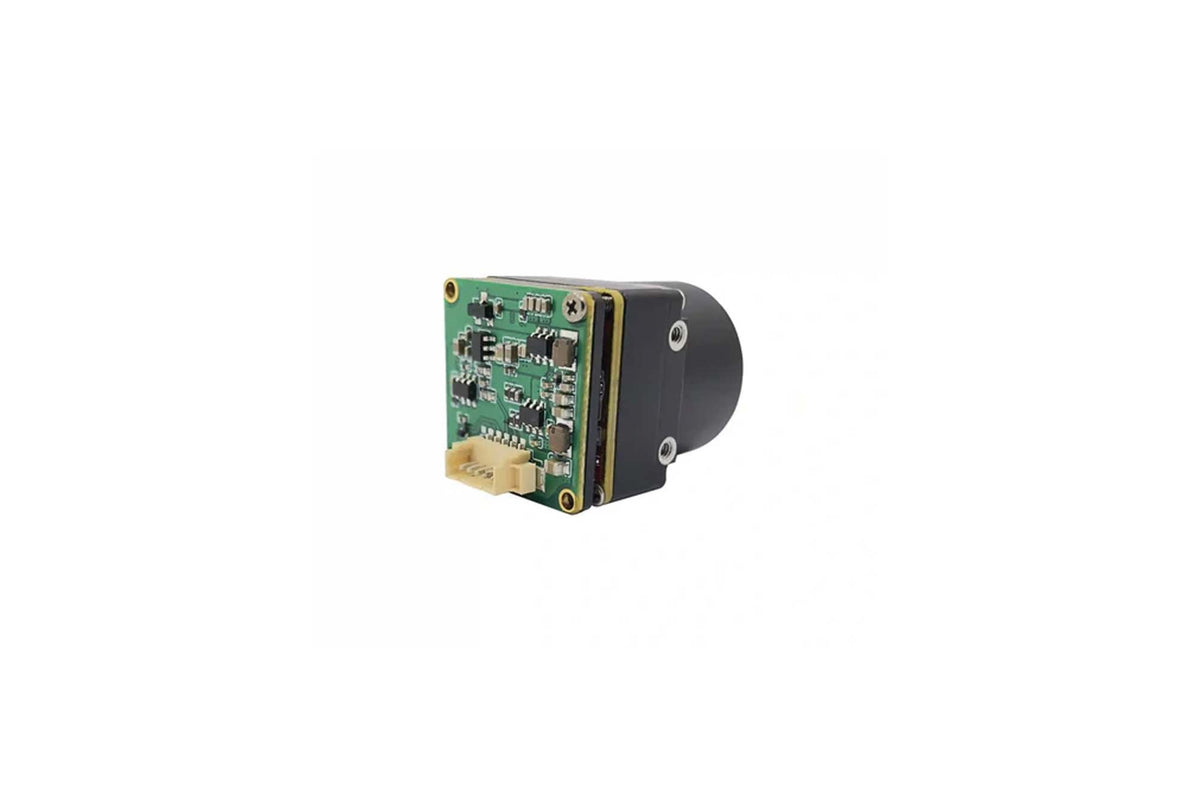

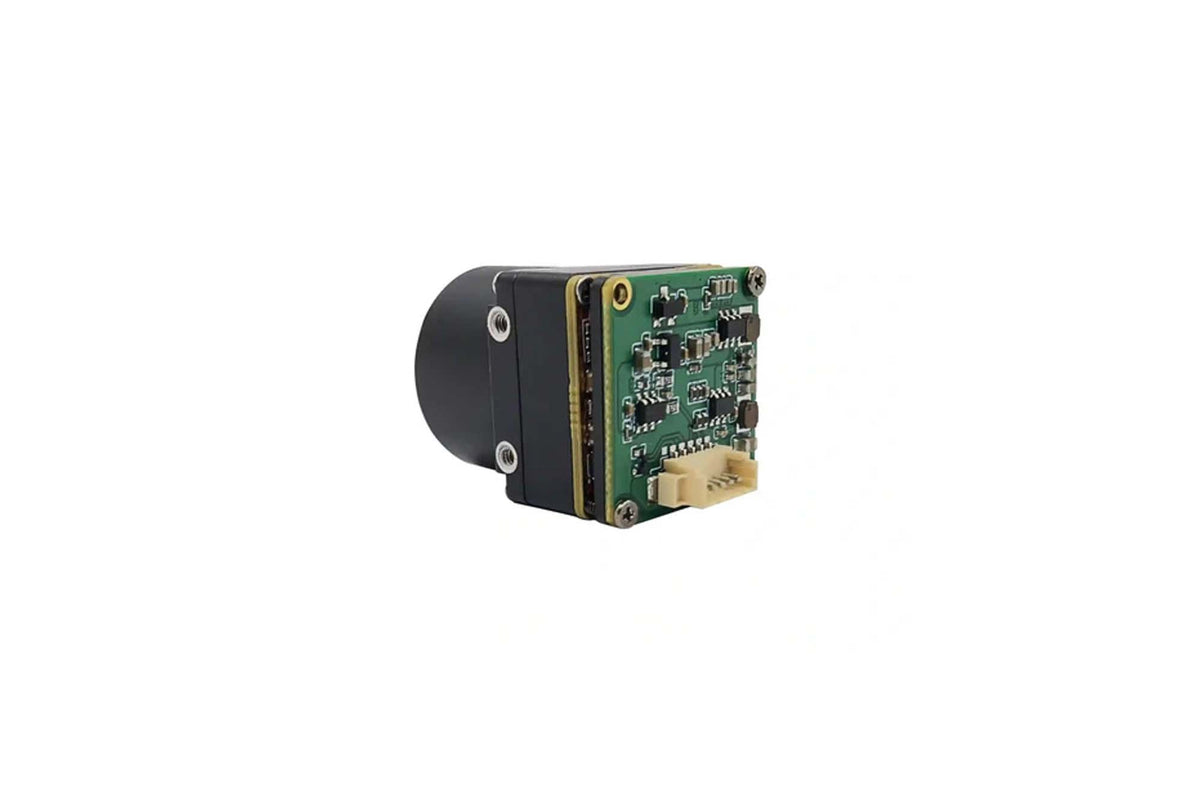

3DXRMini Thermal Camera 50Hz - 384x288 Resolution

This High Resolution Thermal Imager is custom made for 3DXR. Offering a compact and advanced thermal camera module designed to deliver high-quality thermal imaging in a miniature form factor.

With CVBS analog interface is a cutting-edge thermal camera module that provides high-resolution thermal imaging in a compact and lightweight package. With its various resolution options, analog output interface, and miniature size, it is well-suited for a range of applications where space efficiency and detailed thermal detection are critical. This module transforms devices into powerful thermal infrared cameras, offering enhanced functionality for diverse thermal imaging needs.

Features:

• High Resolution Imaging: This camera module offers the resolution of 384x288 pixels.
• Thermal Sensitivity: The high resolution enables detailed thermal imaging, capturing subtle temperature variations and heat signatures with clarity.
• CVBS Analog Interface: The module is exceptionally compact, measuring just 21mm x 21mm. This small size allows for easy integration into various devices and systems, making it ideal for applications where space is at a premium.
• Lightweight: Its lightweight design ensures minimal impact on the overall weight and balance of the device it is integrated into.
• CVBS Analog Interface Analog Output: Features a CVBS (Composite Video Baseband Signal) analog interface for video output. This interface is widely compatible with standard analog video equipment, providing a straightforward method for transmitting thermal image data to displays or recording devices.
• Compatibility: The analog output allows for easy integration with existing analog systems, facilitating the use of the thermal imager in a variety of setups.
• Thermal Imaging: Suitable for applications requiring thermal infrared imaging, including industrial inspections, security surveillance, and environmental monitoring.
• Device Integration: Its miniaturized form factor enables integration into handheld devices, drones, and other compact systems, enhancing their thermal imaging capabilities

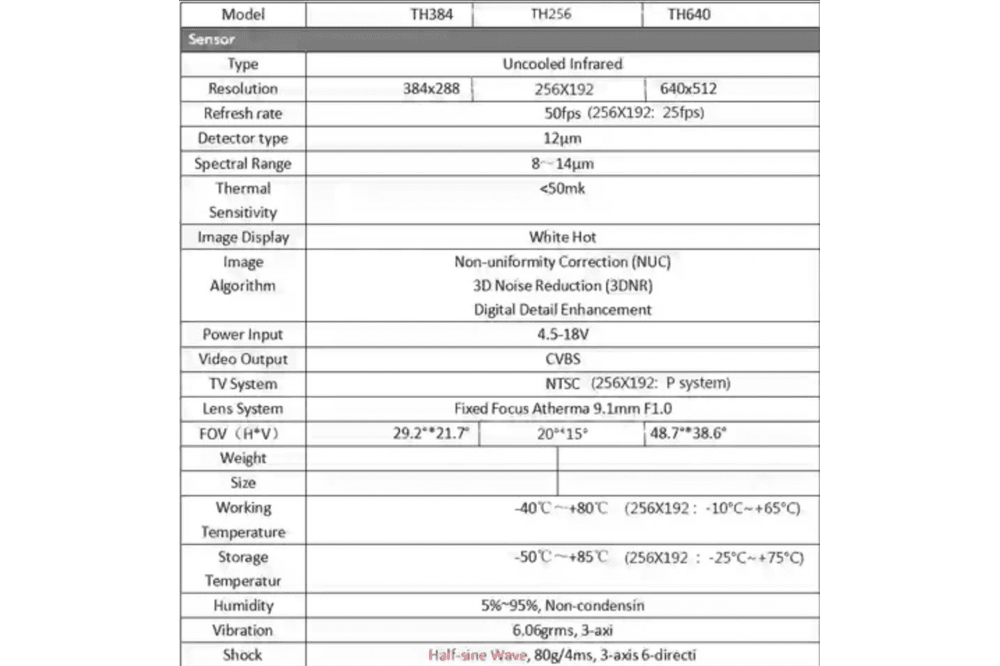

Specifications:

• Imager Resolution Option: 384x288 pixels
• Interface: CVBS analog output
• Dimensions: 21mm x 21mm
• Form Factor: Miniature and lightweight
• Applications: Thermal imaging for industrial, security, and environmental uses
• Refresh rate: 50fps
• Thermal Sensitivity: <50mk
• Image display: White hot
• Image algorithm: Non-uniformity correction (NUC) 3D Noise reduction (3DNR) Digital detail enhancement
• Power input: 4.5-18V
• Video output: CVBS
• Lens System: Fixed focus Atherma 9.1mm F1.0
• FOV (H*V) 29.2x21.7
• Working temperature: -40°C - +80°C
• Storage temperature: -50°C - +85°C
• Humidity: 5%-95% Non Condensin
• Vibration: 6.06grms, 3-axi
• Shock: Half-Sine wave, 80g/4ms, 3-axis 6-direction

Package contains:

• 1x Mini Thermal Interface 50Hz Camera - 384x288 Resolution (TH384)
