Product Specifications
Product Details

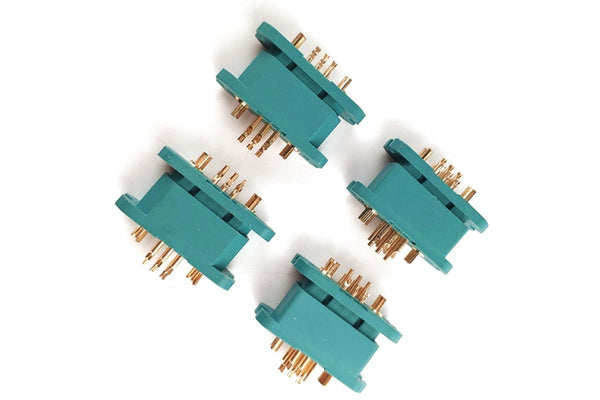

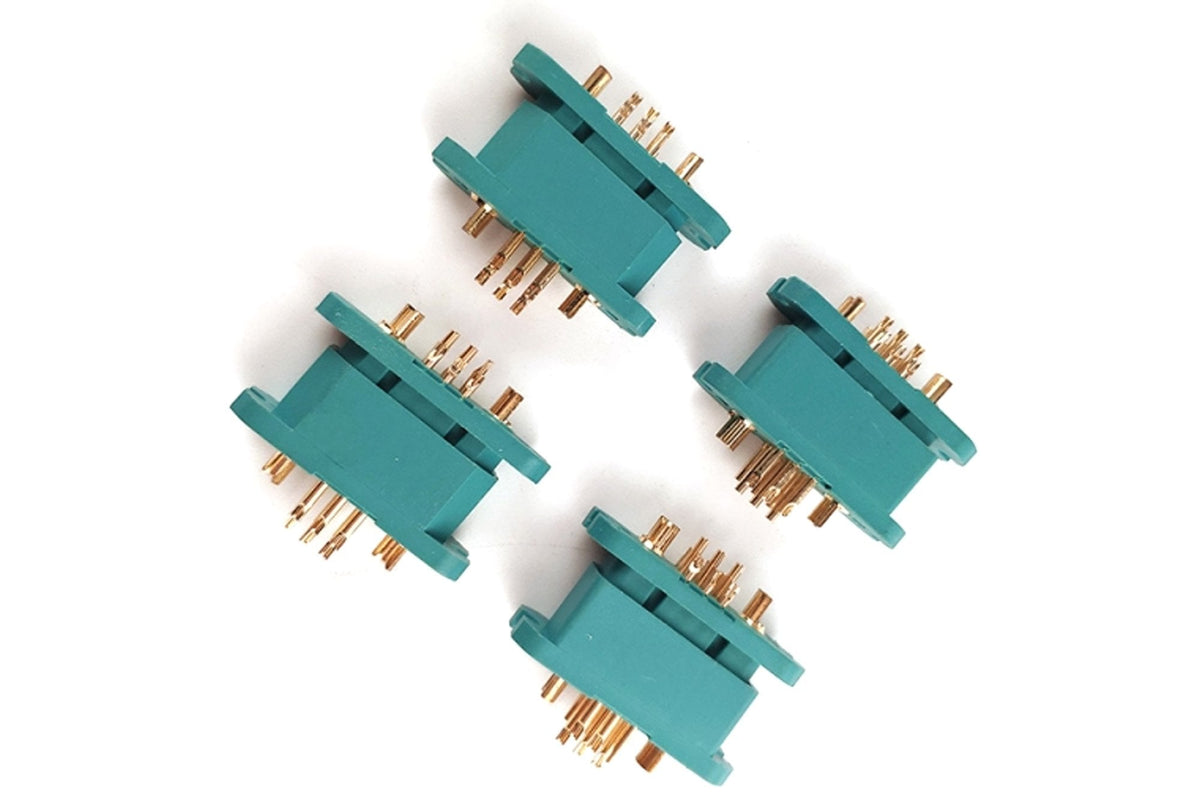

Commonly used for VTOL (vertical take-off and landing)

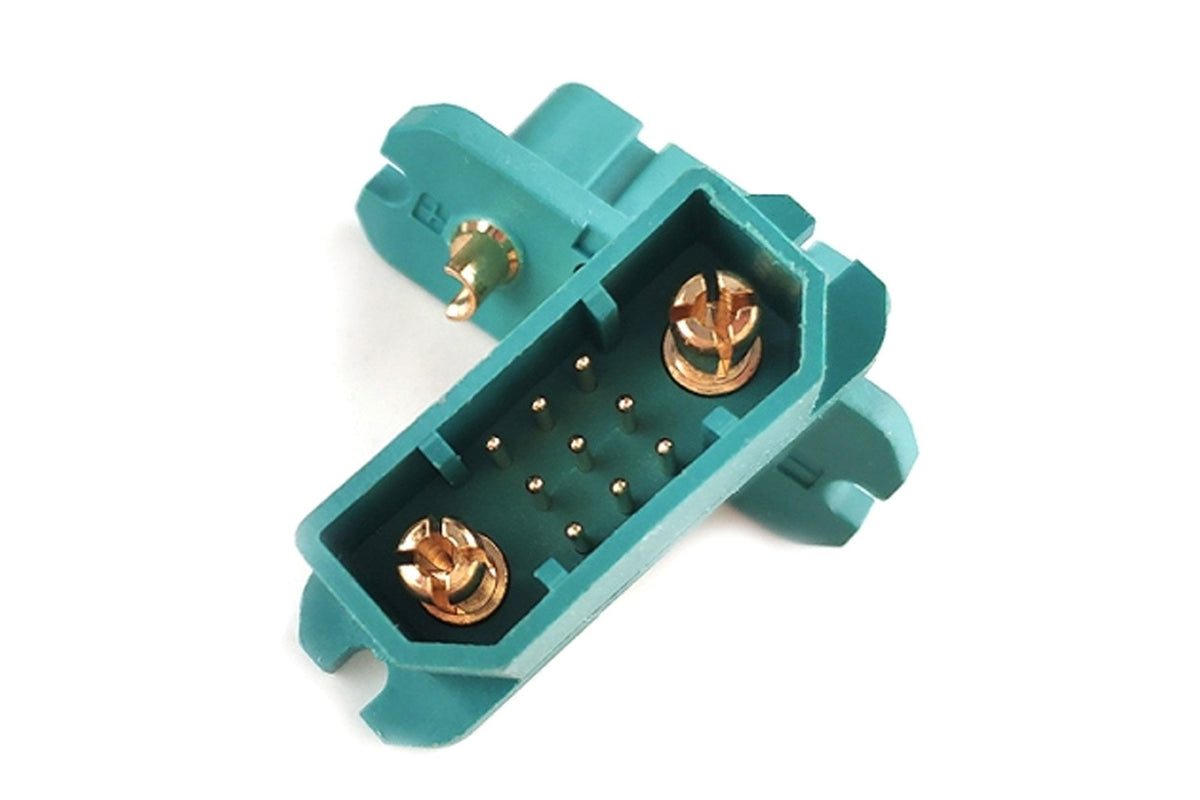

The contact surface of the left and right power interface is the same thickness as our common XT60, but the position of the rear welding port is smaller, because it is considered that too large will affect the small needle in the middle.
The nominal duration is 30A. In the actual test, there have been 50A for short-term take-off and landing, and some users have reported that the maximum is 70A-80A. It shows that there is no problem in an instant or a short time, but the long time nominal is still 30A.
If you use excessive current, please test and grasp by yourself.
Specification
Weight: 9.5g/pair
Type：JX-9
Metal Material: Brass Gold Plated
Plastic Material: PA
Instantaneous current: (big) 60A/(Small) 7A
Rated current: (big) 30A/(Sma1l) 5A
Rated voltage: DC 500V
Contact resistance: 0.3 mΩ
Flame retardant level: lUL94 V0
Working temperature: -20C ~ 120C
Recommended usage times: 1000 TIMES
Cable SPEC：(big) 12AWG/（small) 20AWG
Includes
1x JX9 Pair
